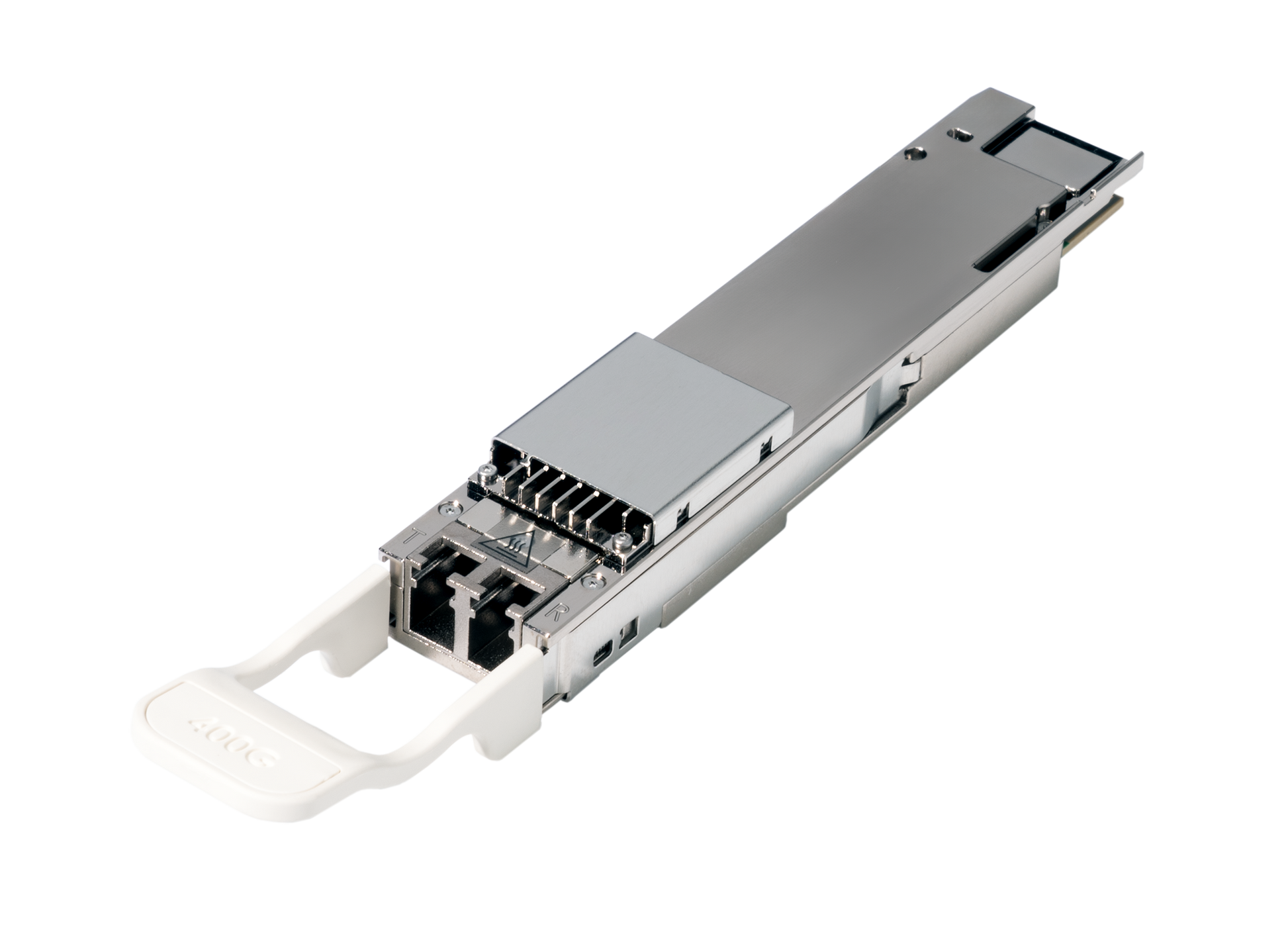

• Cisco DP04QSDD-LLH-A1 400G QSFP-DD silver transceiver with LC connectors
1 1

Cisco

Cisco DP04QSDD-LLH-A1 | 400G QSFP-DD Coherent Transceiver, L-band, Ultra Long Haul

DP04QSDD-LLH-A1

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The DP04QSDD-LLH-A1 is a 400G coherent QSFP-DD pluggable from the Cisco 400G QSFP-DD Ultra Long Haul coherent optics range. It is built for regional and ultra-long-haul amplified DWDM transport, and for extending Routed Optical Networking where high-power Layer 1 transponders would otherwise be needed. Operators can also use the L-band to double existing long-haul capacity alongside C-band.

This SKU is the tunable L-band variant, covering 1570.21 nm to 1610.49 nm over single-mode fibre with a duplex LC connector. Nominal reach is over 3000 km at 400G 118 Gbaud QPSK, with 2,800 km at 112.5 GHz spacing, 2,400 km at 100 GHz, 2,000 km at 87.5 GHz and 1,500 km at 75 GHz. Transmit power is above +1 dBm, and modulation options are 400G QPSK, 16-QAM and PCS-QAM. The module is QSFP-DD Type 2A and works within the 24 W power envelope.

It is OpenROADM 7.0 and OpenZR+ MSA compliant, with CMIS 5.3 and C-CMIS 1.3 management. It is compatible with 400G-capable Cisco routers, switches and transponders, and the Cisco Product Information Matrix lists supported platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- QSFP-DD form factor for 400G-capable Cisco routers, switches and transponders
- Extended reach of over 3000 km across amplified DWDM links
- OpenROADM-compliant 400G QPSK and OpenZR+ interoperability
- Multiple 400G application select codes for 75 GHz to 150 GHz channel spacing
- High Tx power and OSNR for use in DWDM photonic networks
- L-band operation lets operators double long-haul capacity alongside C-band
- Backward-compatible application select code with 400G QSFP-DD ZR+ High-TX power in OpenZR+ MSA mode
- Low power consumption helps reduce power and cooling costs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: QSFP-DD Type 2A, 76-contact card-edge electrical interface
- Data rate: 400G
- Modulation: 400G QPSK, 16-QAM and PCS-QAM
- Signalling: up to 118 Gbaud
- Wavelength: Tunable, 1570.21 nm to 1610.49 nm (L-band)
- Reach (400G 118 Gbaud QPSK): over 3000 km
- Reach (400G, 112.5 GHz spacing): 2,800 km
- Reach (400G, 100 GHz spacing): 2,400 km
- Reach (400G, 87.5 GHz spacing): 2,000 km
- Reach (400G, 75 GHz spacing): 1,500 km
- Tx power: above +1 dBm
- Client formats: 100G, 200G, 400E, FOIC (FOIC available only on transponders)
- Connector: LC duplex
- Fibre type: Single-mode (SMF)
- Standards compliance: OpenROADM 7.0, OpenZR+ MSA
- Management: CMIS 5.3 and C-CMIS 1.3
- Power consumption: within the 24 W QSFP-DD Type 2A envelope
- Case temperature: -5 to 75 C

FAQs

Q: What reach does this module support?
A: Nominal reach is over 3000 km at 400G 118 Gbaud QPSK. At 400G with 112.5 GHz spacing it is 2,800 km, falling to 1,500 km at 75 GHz spacing.

Q: What power does it need from the host?
A: It is QSFP-DD Type 2A compliant and works within the 24 W power envelope supported on existing 400G-capable Cisco routers.

Q: Which hosts is it compatible with?
A: It works with 400G-capable Cisco routers, switches and transponders. FOIC client mode works only on transponders. The Cisco Product Information Matrix lists supported platforms.

Q: How does the L-band variant differ from the C-band version?
A: This SKU tunes across 1570.21 nm to 1610.49 nm. The C-band version covers 1528.58 nm to 1567.34 nm, so L-band lets operators add capacity alongside existing C-band channels.

Q: Which standards does it interoperate with?
A: It is OpenROADM 7.0 and OpenZR+ MSA compliant, and is managed using CMIS 5.3 and C-CMIS 1.3.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
