• Cisco C9800-80-CA-K9 Catalyst 9800-80 Wireless Controller with ports
1 1

Cisco

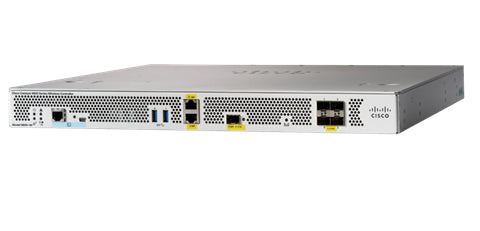

Cisco C9800-80-CA-K9 | Catalyst 9800-80 Wireless Controller, 80 Gbps, 6000 APs

C9800-80-CA-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Catalyst 9800-80 is a high-performance wireless controller designed for large enterprise and campus deployments. Built on Cisco IOS XE, it supports up to 6,000 access points and 64,000 concurrent clients with 80 Gbps throughput. The modular platform features eight built-in 10GE SFP+ ports, one EPA expansion slot, and optional 100GE uplinks for maximum scalability and high availability.

Features

Built on Cisco IOS XE for intent-based networking and Cisco DNA integration
- Supports up to 6,000 APs and 64,000 concurrent clients with 80 Gbps throughput
- Eight built-in 10GE SFP+ interfaces plus one EPA expansion slot for 100GE uplinks
- Stateful Switchover (SSO) high availability with sub-second failover
- Hardware-accelerated cryptography with 30G crypto processor for scale
- Wi-Fi 6 and Wi-Fi 6E ready with support for 802.11ax access points
- Embedded WebUI for day-0 configuration and troubleshooting without CLI
- CAPWAP AP management with support for centralized, FlexConnect, and SD-Access modes
- Advanced security: Secure Boot, runtime defenses, image signing, hardware authenticity
- Encrypted Threat Analytics (ETA) and SD-Access integration
- Programmable APIs: NETCONF, RESTCONF, YANG, model-driven telemetry
- Cisco User Defined Network for guest isolation and device segmentation
- Seamless software upgrades (ISSU) with zero downtime
- Modular hot-swappable uplink modules and dual redundant power supplies
- Support for up to 4,096 SSIDs and 1,000 policy profiles
- Bluetooth management interface support for out-of-band configuration
- Stratum 3E network clocking per GR-1244-CORE
- Full Layer 2 and Layer 3 wireless roaming with mobility groups
- VLAN, QoS, WMM, and IPv6 support for modern network architectures

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Maximum Access Points: Up to 6,000 APs
- Maximum Clients: 64,000 concurrent wireless clients
- Throughput: Up to 80 Gbps aggregate wireless throughput
- Built-in Interfaces: 8× 10GE/1GE SFP+ ports
- Expansion: 1× Ethernet Port Adapter (EPA) slot for modular uplinks
- Supported Uplink Modules: 100GE, 40GE, 10GE QSFP/SFP+ transceivers (hot-swappable)
- Maximum WLANs: 4,096 SSIDs
- Maximum Policy Profiles: 1,000 policy profiles
- Maximum Flex Profiles: 6,000 flex profiles
- Form Factor: 2RU rackmount chassis
- Power Supply: Dual redundant AC or DC power supplies (hot-swappable)
- Dimensions: 3.47" H × 17.3" W × 20.5" D (8.8 × 43.9 × 52.1 cm)
- Weight: 31.5 lbs (14.3 kg)
- Management: CLI, WebUI, Cisco DNA Center, SNMP, NETCONF, RESTCONF, YANG models
- Security: Secure Boot, runtime defenses, image signing, hardware authenticity, DTLS encryption
- Operating System: Cisco IOS XE
- High Availability: Stateful Switchover (SSO) with sub-second failover
- Supported Standards: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), CAPWAP, 802.1Q, 802.1AX

FAQs

Q: How many access points can the Catalyst 9800-80 support?
A: The C9800-80 supports up to 6,000 access points and 64,000 concurrent wireless clients. Cisco recommends planning deployments at approximately 80% of maximum scale (around 4,800 APs) for optimal performance, though full-scale deployments are validated and supported.

Q: What uplink options are available on this controller?
A: The controller includes eight built-in 10GE/1GE SFP+ ports and one EPA expansion slot. The EPA slot supports optional modular uplinks including 100GE, 40GE, and 10GE interfaces via hot-swappable modules like C9800-18X1GE and C9800-10X10GE, allowing flexible connectivity for campus and data center environments.

Q: Does the C9800-80 support high availability configurations?
A: Yes, the controller supports Stateful Switchover (SSO) high availability with sub-second failover times. You can deploy two C9800-80 controllers in an HA pair, and the platform also supports N+1 redundancy architectures. Dual redundant power supplies provide hardware-level resilience.

Q: What access point models are compatible with this controller?
A: The C9800-80 is compatible with Cisco Aironet Wave 2 802.11ac access points and all Cisco Catalyst 9100 Series Wi-Fi 6/6E (802.11ax) access points. It manages APs using CAPWAP protocol and supports centralized, FlexConnect, and SD-Access wireless deployment modes.

Q: Can this controller be managed through Cisco DNA Center?
A: Yes, the Catalyst 9800-80 integrates natively with Cisco DNA Center for centralized provisioning, monitoring, assurance, and analytics. It also supports local management via embedded WebUI, CLI, SNMP, and programmable APIs including NETCONF, RESTCONF, and YANG data models for automation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
