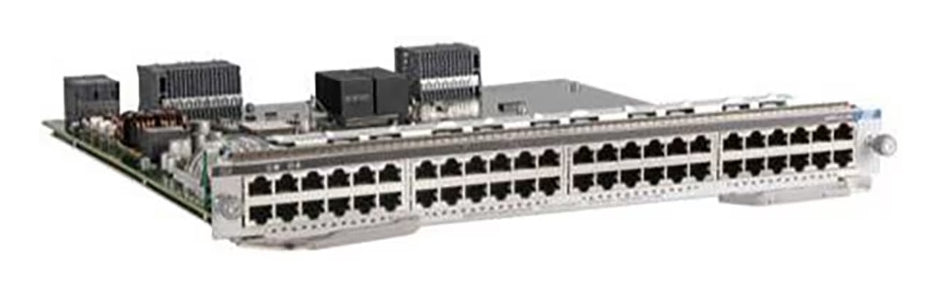

• Silver cisco c9400-lc-48hx-b1 catalyst 9400 48-port 10g multigigabit line card with u poe plus ethernet ports and circuitry
1 1

Cisco

Cisco C9400-LC-48HX-B1 | Catalyst 9400 48-Port 10G mGig UPOE+ Line Card, Bundle

C9400-LC-48HX-B1

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9400 48-port 10G multigigabit UPOE+ line card is built for the modular Catalyst 9400 chassis, supplying data and power over one cable to Wi-Fi 6/6E access points, security and thermal cameras, digital signage, LED lighting and large displays. This SKU is the bundle-ordering PID for one C9400-LC-48HX line card.

It provides 48 RJ-45 ports supporting 10GBASE-T, 5G, 2.5G, 1000M and 100M multigigabit speeds, with Cisco UPOE+ (IEEE 802.3bt) delivering up to 90W per port. Ports are nonblocking, with 480 Gbps per slot when paired with a C9400X-SUP-2XL supervisor (1:1) or 240 Gbps per slot with a C9400X-SUP-2 (2:1). Hardware MACsec-256 and jumbo frames up to 9216 bytes are supported. The card occupies one slot and has a maximum rated power of 270 W. The line card itself carries no licence; software tiers are purchased with the host chassis and supervisor.

It works in the C9404R, C9407R and C9410R chassis and requires a C9400X-SUP-2 or C9400X-SUP-2XL supervisor running Cisco IOS XE 17.8 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate data and power over one cable for Wi-Fi 6/6E access points, cameras, signage and lighting
- Cisco UPOE+ (IEEE 802.3bt) with up to 90W per port on all 48 ports
- Cisco 5G and 10G Multigigabit Ethernet support
- Hardware MACsec-256 (IEEE 802.1AE) encryption
- Energy Efficient Ethernet (802.3az) with low thermal dissipation per watt sourced
- Uninterrupted power and data when used with dual supervisors

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Line card: C9400-LC-48HX (10G multigigabit UPOE+)
- Number of ports: 48
- Port type: RJ-45
- Port speeds: 10GBASE-T, 5G, 2.5G, 1000M, 100M
- PoE: Cisco UPOE+ (IEEE 802.3bt) up to 90W per port, plus 802.3at, 802.3af and Cisco pre-standard PoE
- Bandwidth per slot with C9400X-SUP-2XL: 480 Gbps (1:1)
- Bandwidth per slot with C9400X-SUP-2: 240 Gbps (2:1)
- Jumbo frames: up to 9216 bytes
- Security: IEEE 802.1AE MACsec-256 in hardware
- Energy Efficient Ethernet: IEEE 802.3az
- Minimum software: Cisco IOS XE 17.8 or later
- Slot occupancy: one slot
- Maximum rated power: 270 W
- Rated MTBF: 401,560 hours
- Dimensions (H x W x D): 4.06 x 37.90 x 37.00 cm
- Operating temperature: -5 to +45 C up to 1800 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10 to 95%, noncondensing

FAQs

Q: Does this line card need a licence?
A: The line card hardware has no licence of its own. The host Catalyst 9400 runs Cisco IOS XE with Network Essentials or Network Advantage tiers, purchased with the chassis and supervisor. The bundle PID does not add a licence tier.

Q: Which chassis and supervisors does it work with?
A: It fits the Catalyst 9400 chassis C9404R, C9407R and C9410R. It requires a C9400X-SUP-2 or C9400X-SUP-2XL supervisor running Cisco IOS XE 17.8 or later.

Q: How much PoE can it deliver?
A: Each port supplies up to 90W with UPOE+. Total PoE capacity depends on the chassis power supplies, for example 226 ports at full 90W on a C9407R or 224 on a C9410R at maximum power.

Q: How does C9400-LC-48HX-B1 differ from C9400-LC-48HX?
A: The -B1 SKU is the bundle-ordering PID covering one C9400-LC-48HX line card for Bundle Select. The port count, speeds and UPOE+ capability are the same as the line card.

Q: What bandwidth does each slot provide?
A: With a C9400X-SUP-2XL supervisor the card gets 480 Gbps per slot (1:1). With a C9400X-SUP-2 it gets 240 Gbps per slot (2:1).
