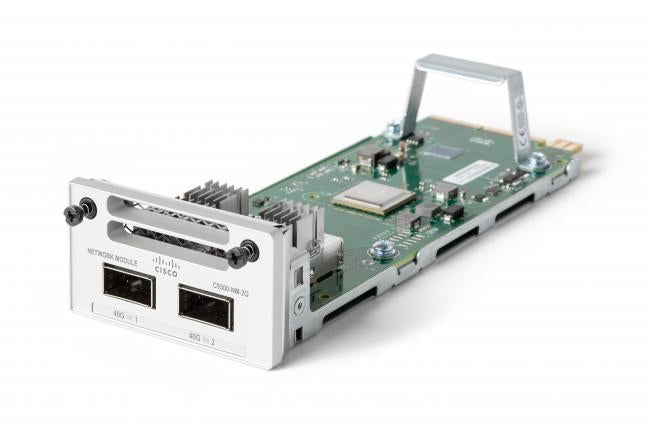

• Cisco C9300-NM-2Q-M silver green circuit board with USB port
1 1

Meraki

Meraki C9300-NM-2Q-M | Catalyst 9300 2x 40G QSFP+ Uplink Module, Meraki Edition

C9300-NM-2Q-M

Stock Status: Enquire

$2,634.50 inc. GST
$2,395.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The C9300-NM-2Q-M is a field-replaceable uplink network module for modular-uplink Catalyst 9300 switches, in the Meraki edition. It adds two 40G QSFP+ ports to the switch, giving access-layer deployments a high-speed path to distribution or core in campus and branch networks, including Meraki cloud-managed deployments of Catalyst 9300 access switches.

The module provides 2 x 40G QSFP uplink ports and accepts QSFP+ optics and cables with MPO or LC fibre connectors, in single-mode or multimode fibre. It is a hot-swappable, field-replaceable module that fits the uplink slot of the host switch, and it draws power from the switch with no separate power supply. The module itself needs no licence. The host switch needs a licence: Meraki-mode switches need a Meraki Advanced or Enterprise term licence to appear in the Meraki dashboard.

It works with modular-uplink Catalyst 9300 switches, including Meraki -M models. Catalyst 9300X switches use a different module family (C9300X-NM) and are not compatible, and fixed-uplink C9300L and C9300LM models do not take this module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds two 40G QSFP+ uplinks to modular-uplink Catalyst 9300 switches
- Field-replaceable module supports nondisruptive migration and investment protection
- Supports Meraki dashboard cloud management when used with Meraki-mode Catalyst 9300 switches
- Part of the Catalyst 9300 family with UADP 2.0 ASIC, StackWise-480, StackPower and IOS XE programmability
- Accepts QSFP+ optics and cables with MPO or LC fibre connectors
- Powered from the host switch with no separate power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Network module (uplink module)
- Ports: 2 x 40G QSFP+
- Uplink type: Modular uplink for Catalyst 9300 (C9300 SKUs)
- Connector type: QSFP+ with MPO and LC fibre connectors
- Fibre type: Single-mode or multimode
- Edition: Meraki edition (-M)
- Spare part number: C9300-NM-2Q=
- Mean time between failures: 10,778,230 hours
- Power: Supplied by the host switch via the uplink slot
- Field-replaceable: Yes, installed in the switch uplink slot

FAQs

Q: Does this module need its own licence?
A: No. The module itself needs no licence. The host Catalyst 9300 switch needs one, and in Meraki mode that is a Meraki Advanced or Enterprise term licence so the switch is recognised in the Meraki dashboard.

Q: Which switches is it compatible with?
A: It fits modular-uplink Catalyst 9300 (C9300) switches, including Meraki -M models. It is not for Catalyst 9300X switches, which use C9300X-NM modules, or fixed-uplink C9300L and C9300LM models.

Q: Does it need a separate power supply?
A: No. The module is powered by the host switch through the uplink slot, and its draw is part of the switch power budget.

Q: Which optics and cables suit the 40G QSFP+ ports?
A: The ports take 40G QSFP+ transceivers and cables with MPO or LC fibre connectors, in single-mode or multimode fibre, per the Cisco transceiver compatibility tables.

Q: How does this differ from C9300-NM-2Q?
A: C9300-NM-2Q-M is the Meraki edition of the same 2 x 40G QSFP uplink module, supplied for Meraki-managed Catalyst 9300 deployments.
