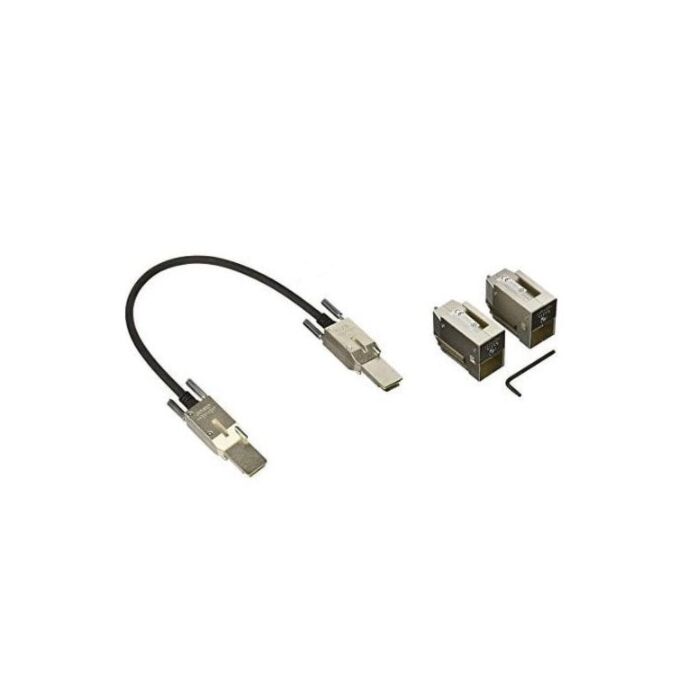

• Cisco C9200-STACK-KIT StackWise-160 module with black silver SAS 3m cable kit
1 1

Cisco

Cisco C9200-STACK-KIT | Catalyst 9200 Stacking Module, StackWise-160, 160G, 0.5m

C9200-STACK-KIT

5 in stock

$1,301.30 inc. GST
$1,183.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200 stacking kit is built for modular-uplink Catalyst 9200 (C9200) access switches in branch and campus wiring closets. It lets you join several switches into one logical unit with a single management and control plane, which simplifies configuration and improves resiliency.

The kit provides StackWise-160 stacking with 160 Gbps of stacking bandwidth and supports up to 8 stack members, for a maximum of 384 access ports across a stack of 48-port models. It is for C9200 SKUs only, with a 0.5 m stacking cable as the default length. Optional 1 m (STACK-T4-1M) and 3 m (STACK-T4-3M) cables are available separately. Every member in the stack must run the same licence level, Network Essentials or Network Advantage, and the same software.

It works with Catalyst 9200 modular-uplink models such as the C9200-24T, 24P, 24PB, 24PXG, 48T, 48P, 48PL, 48PB and 48PXG. It does not work with C9200L, which uses the C9200L-STACK-KIT, or with C9200CX, which does not stack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Creates a single virtual switch with one management and control plane across the stack
- Supports SSO resiliency with sub-50 ms failover in a stackable solution
- Cross-stack EtherChannel for high resiliency
- Per-VLAN Rapid Spanning Tree and MSTP treat stacked units as a single spanning-tree node
- Equal-cost routing enables Layer 3 load balancing and redundancy across the stack
- Passive hardware accessory with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Stacking support: StackWise-160
- Stacking bandwidth: 160 Gbps
- Stacking hardware: C9200-STACK-KIT
- Number of stack members: Up to 8
- Supported stack members: Other C9200 models at the same licence level
- Default stacking cable length: 0.5 m (STACK-T4-50CM)
- Optional cable lengths: STACK-T4-1M (1 m), STACK-T4-3M (3 m)
- Stacking cable type: Type 3 Stacking Cable
- Maximum stacked access ports: Up to 384 (8 members x 48 ports)
- Compatible platform: Catalyst 9200 modular-uplink models (C9200 SKUs)
- Not compatible with: C9200L and C9200CX
- Power: Passive accessory, no power requirement

Also Known As

C9200-STACK-KIT=, C9200-STACK-KIT-RF

FAQs

Q: Which Catalyst 9200 switches does this stacking kit work with?
A: It works with modular-uplink Catalyst 9200 (C9200) models such as the C9200-24T, 24P, 24PB, 24PXG, 48T, 48P, 48PL, 48PB and 48PXG. It is not compatible with C9200L or C9200CX.

Q: Can I stack C9200 and C9200L switches together?
A: No. C9200 and C9200L cannot be mixed in the same stack. C9200L switches use the C9200L-STACK-KIT with 80 Gbps stacking bandwidth.

Q: Does the stacking kit need its own licence?
A: No. The kit itself needs no separate licence, but all stack members must run the same licence level, Network Essentials or Network Advantage, and the same software.

Q: How many switches can be stacked and what is the bandwidth?
A: Up to 8 C9200 members can be stacked, with 160 Gbps of StackWise-160 stacking bandwidth.

Q: What cable lengths are available for stacking?
A: The default stacking cable is 0.5 m (STACK-T4-50CM). Longer 1 m (STACK-T4-1M) and 3 m (STACK-T4-3M) cables are available separately.
