Cisco

Cisco C885A-M8-CC-SLD17 | UCS C885A M8 CPU Sled, 2x EPYC 9575F, 3TB DDR5, 10x CX-7

SKU:C885A-M8-CC-SLD17

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This CPU sled is the host compute module for the Cisco UCS C885A M8 8RU dense-GPU rack server. It pairs two AMD EPYC 9575F processors with 3TB of DDR5 memory and ten NVIDIA ConnectX-7 network cards, and is built for deep learning and LLM training, model fine-tuning, large-model inference, Retrieval-Augmented Generation (RAG) and HPC in dense-GPU AI clusters.

Memory is 24 x 128GB DDR5 DIMMs running at 6400 MT/s. Networking is split between eight ConnectX-7 1x400G cards for East-West GPU scale-out and two ConnectX-7 2x200G cards for North-South traffic. A dedicated Intel X710-T2L OCP 3.0 NIC with two 10GbE RJ-45 ports handles management networking. Two 960GB M.2 NVMe boot drives are fitted with hardware boot RAID. Licensing is handled at the server level: Cisco Intersight is required for the C885A M8, and the sled carries no separate licence.

The sled fits the UCS C885A M8 server with the 8x AMD MI350X OAM GPU sled (C885A-M8-MI35-SLD) and works with the C885A-M8-DCSCMAA DC-SCM card for 5th Gen EPYC with AMD GPUs. Supported optics include QSFP-200G-SL4, QSFP-200G-SR4-S, QSFP-400G-DR4 and QSFP-200G-FR4-S, with MPO12 SMF/MMF trunk cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual 5th Gen AMD EPYC 9575F host processors for AI and HPC workloads
- 3TB of DDR5-6400 memory per sled (24 x 128GB)
- Eight 400G ConnectX-7 NICs for East-West GPU scale-out
- Two 200G ConnectX-7 NICs for North-South traffic
- Dedicated OCP 3.0 Intel X710-T2L NIC for management networking
- Dual 960GB M.2 NVMe boot drives with hardware boot RAID
- Managed through Cisco Intersight with local management interface support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Processors: 2 x AMD EPYC 9575F
- Memory: 24 x 128GB DDR5 DIMMs, 6400 MT/s (3TB total)
- East-West network cards: 8 x NVIDIA ConnectX-7 1x400G
- North-South network cards: 2 x NVIDIA ConnectX-7 2x200G
- Management NIC: 1 x Intel X710-T2L OCP 3.0 (2x 10GbE RJ-45)
- Boot storage: 2 x 960GB M.2 NVMe
- Boot RAID: Yes (UCS-M2-NVRAID)

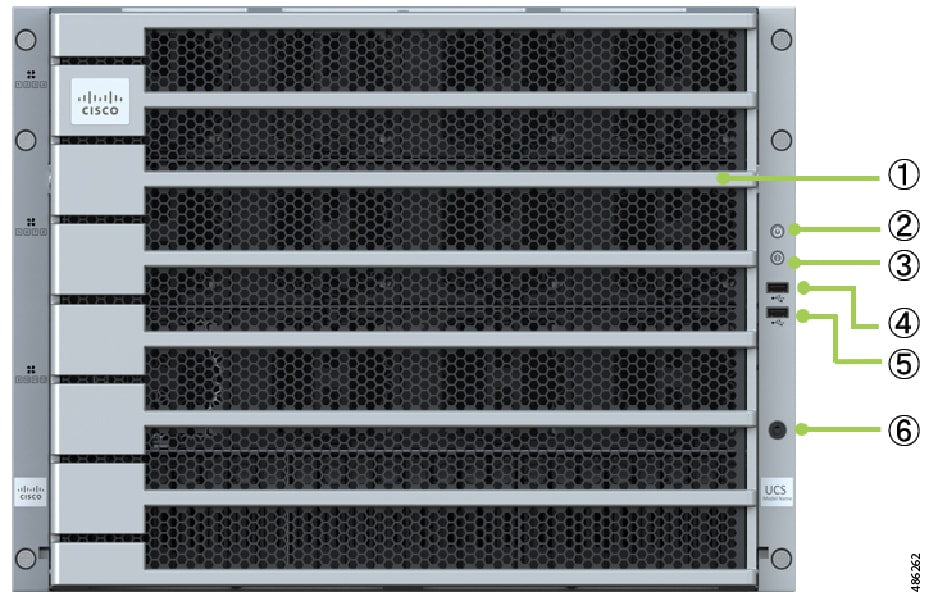

- Server chassis: 8RU rack server, 800 x 447 x 353 mm (D x W x H)
- Server PCIe slots: 8 x PCIe Gen5 x16 HHHL (East-West), 5 x PCIe Gen5 x16 FHHL (North-South), 2 x OCP 3.0 SFF
- Server management: DC-SCM with RJ45, IPMI 2.0, KVM with dedicated LAN, Watchdog
- Server DIMM capacity: up to 24 DDR5-6400 DIMM slots
- Server operating temperature: 5 to 35 C
- Server operating humidity: 8% to 90% non-condensing

FAQs

Q: Does this sled need a licence?
A: The sled itself carries no separate licence. The UCS C885A M8 server requires Cisco Intersight, either SaaS or the Private Virtual Appliance. An NVIDIA AI Enterprise Essentials licence is optional.

Q: How is the sled powered?
A: It is powered by the C885A M8 chassis. The CPU tray uses 2 x 2700W 12V AC/DC Titanium PSUs in a 1+1 redundant arrangement, and the GPU side uses 6 x 3000W 54V PSUs. Server draw is up to 12.5kW on 200-240Vac input.

Q: Which server and GPU sled does it work with?
A: It fits the Cisco UCS C885A M8 Rack Server with the 8x AMD MI350X OAM GPU sled (C885A-M8-MI35-SLD), and works with the C885A-M8-DCSCMAA DC-SCM card.

Q: Which optics are supported for the ConnectX-7 ports?
A: Supported optics include QSFP-200G-SL4, QSFP-200G-SR4-S, QSFP-400G-DR4 and QSFP-200G-FR4-S, used with MPO12 SMF or MMF trunk cables.

Q: How does this sled differ from other C885A M8 CPU sleds?
A: This variant uses AMD EPYC 9575F processors with 3TB of memory from 128GB DIMMs, eight 400G and two 200G ConnectX-7 NICs. Other sleds differ in processor, memory capacity or NIC configuration.
