Cisco

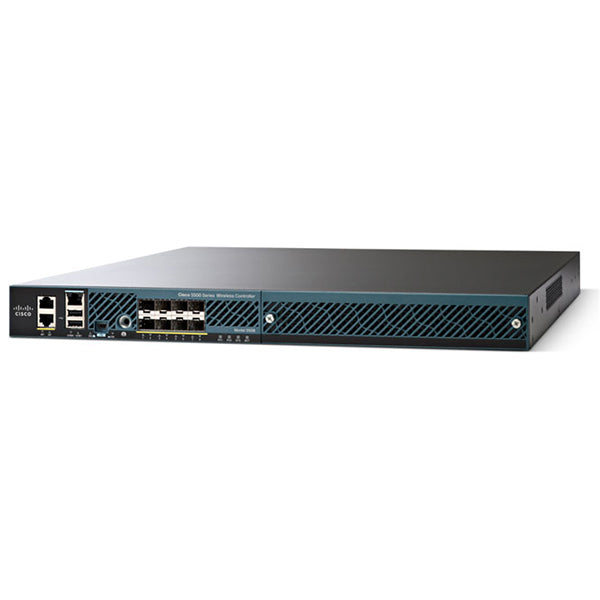

Cisco AIR-CT5508-250-K9 | 5500 Wireless Controller, 8x 1G SFP, 250 AP Licence

SKU:AIR-CT5508-250-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 5500 Series (5508) is a standalone wireless LAN controller for medium to large enterprise and campus networks. It centralises management of Cisco access points, including voice and video, OfficeExtend remote worker and mesh deployments.

This SKU is licensed for 250 access points, and capacity can be raised to a maximum of 500 using additive licences. It provides 8 x 1 Gigabit Ethernet uplink ports through SFP slots, plus a 10/100/1000 service port and a 10/100/1000 utility port. It supports 802.11a/b/g/n/ac with CleanAir, Application Visibility and Control (NBAR-2) and OfficeExtend, and draws up to 115 W from a 100-240 VAC supply in a 1RU rack-mount chassis. It has two power supply bays and does not provide PoE.

It works with Cisco Aironet access points, Cisco WCS and Prime Infrastructure, and the Mobility Services Engine. Supported SFPs are the Cisco GLC-T, GLC-SX-MM and GLC-LH-SM, and the AIR-PWR-5500-AC= redundant power supply and AIR-FAN-5500= fan tray are available as accessories.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wired-speed, non-blocking performance for 802.11n, optimised for 802.11ac
- Integrated Cisco CleanAir for real-time and historical RF interference visibility
- Application Visibility and Control (AVC) using NBAR-2 deep packet inspection
- Wireless policy engine with device profiling and VLAN, QoS, ACL and time-of-day policies
- Sub-second stateful failover of access points and clients to a standby controller
- OfficeExtend for secure teleworking and Enterprise Wireless Mesh
- CAPWAP with DTLS encryption between access points and controller
- Support for VideoStream and Cisco Unified Communications voice

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Access point licence: 250 Cisco APs (expandable to a maximum of 500)
- Platform AP licence range: 12/25/50/100/250/500
- Uplink ports: 8 x 1000BASE-T / 1000BASE-SX / 1000BASE-LH via SFP slots
- Supported SFPs: GLC-T, GLC-SX-MM, GLC-LH-SM
- Service port: 1 x 10/100/1000 (RJ45)
- Utility port: 1 x 10/100/1000 (RJ45)
- Expansion slots: 1
- Console: RS-232 (DB-9 / RJ-45) and mini-USB
- Wireless standards: 802.11a/b/g/n/ac, 802.11d/e/h/k/r/u/w
- Management: SNMP v1/v2c/v3, Telnet, SSH, HTTP/HTTPS, serial console, Cisco WCS
- Security: WPA, WPA2 (802.11i), 802.1X, RADIUS, TACACS, IPsec, DTLS
- Input power: 100-240 VAC, 50/60 Hz, 115 W maximum
- Heat dissipation: 392 BTU/hour maximum
- Dimensions (W x D x H): 440 x 539 x 44.5 mm (1RU)
- Weight: 9.1 kg with 2 power supplies
- Operating temperature: 0 to 40 C
- Storage temperature: -25 to 70 C
- Operating humidity: 10 to 95% non-condensing
- Regulatory: CE Mark, UL 60950-1, FCC Part 15 Class A, ICES-003, VCCI, EN 55022/55024

FAQs

Q: How many access points does this controller support?
A: This SKU ships licensed for 250 Cisco access points. Capacity can be raised to a maximum of 500 using additive capacity licences.

Q: How do I add more access point capacity?
A: Additive licences such as L-LIC-CT5508-250A (e-licence) or LIC-CT5508-250A (paper PAK) increase the AP count, with 5, 25, 50 and 100 AP adders also available. Each PAK must be registered with Cisco before it is installed.

Q: Does it provide PoE to connected devices?
A: No. The controller does not provide PoE. It runs from 100-240 VAC at up to 115 W, and the optional AIR-PWR-5500-AC= adds a redundant AC power supply.

Q: Which SFP modules does it use for its uplink ports?
A: The eight uplink ports use Cisco SFPs: GLC-T for copper, GLC-SX-MM for multimode fibre and GLC-LH-SM for single-mode fibre.

Q: Is a separate licence needed for OfficeExtend?
A: A separate DTLS licence is optional and is needed for OfficeExtend deployments where DTLS is not enabled by default.
