• Cisco 8800-RP2 route processor 2 on black circuit board
1 1

Cisco

Cisco 8800-RP2 | Route Processor 2 | for 8800 chassis | IOS XR control plane | HA/SSO | sZTP-capable | OOB mgmt + console

8800-RP2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

Carrier-grade control-plane module for 8800-series chassis, delivering system management, routing control, and fabric supervision. Supports high availability with dual-RP redundancy and stateful switchover for minimal disruption. Provides out-of-band management and console access, automation readiness, and sZTP-capable onboarding.

Features

- High-availability control plane with SSO when deployed in pairs
- sZTP-capable for automated, secure Day-0 onboarding
- OOB Ethernet management, local console and USB access
- Optimized for model-driven telemetry and automation workflows
- Carrier-grade reliability for large-scale core/edge deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Compatibility: 8800-series chassis (e.g., 8804/8808/8812/8818)
- Role: Centralized route processor and system controller for fabric and line cards
- Operating system: IOS XR-based platforms
- High availability: Supports redundant RP deployment with SSO
- Provisioning: Secure ZTP-capable (policy-controlled)

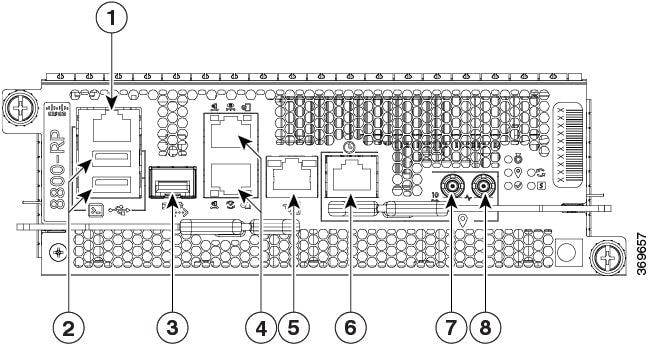

- Interfaces: Out-of-band Ethernet management and console/USB for local access
- Telemetry/automation: Supports model-driven ops and modern automation toolchains
- Licensing: Features licensed per system/software image; module itself carries no separate license

FAQs

Q: Do I need two route processors for high availability?
A: A single RP will operate the chassis, but deploying a second RP enables redundancy and stateful switchover.

Q: What is the difference between RP2 and RP2-S?
A: RP2-S ships with secure Zero-Touch Provisioning defaults enabled by design; RP2 is sZTP-capable but not defaulted to sZTP.

Q: Is a specific IOS XR release required?
A: Use a release that is qualified for your 8800 chassis and line cards; consult the software release notes for compatibility.

Q: Are additional licenses required for advanced routing features?
A: Feature licenses are applied at the system/software level; the RP module itself does not include feature entitlements.
