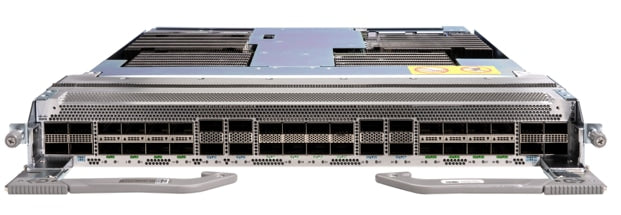

• Silver-colored Cisco 88-LC1-16H16F-EM 8800 series line card back with black network ports and perforated metal panel
1 1

Cisco

Cisco 88-LC1-16H16F-EM | 8800 Line Card, 9.6 Tbps, 16x QSFP28 + 24x DD, MACsec

88-LC1-16H16F-EM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8800 88-LC1-16H16F-EM is a third-generation service edge line card for Cisco 8800 distributed routers. Built on Cisco Silicon One K100 and running Cisco IOS XR, it suits high-speed IP core, aggregation and service edge deployments that need to consolidate traffic and services from 1 to 400 GbE with high-scale routing and line-rate MACsec security.

The card delivers 9.6 Tbps of capacity across 16 QSFP28, 8 QSFP28-DD and 16 QSFP56-DD ports. Port rates run from 1 GbE up to 400 GbE with flexible port rate configuration, and MACsec encryption operates at line rate on every port. An 8-core x86-64 CPU, 64 GB of DRAM and a 480 GB SSD support the control plane, and PTP timing with Class C performance is built in. This is the 9.6 Tbps variant with the QSFP28, QSFP28-DD and QSFP56-DD port mix, a step up from the 4.8 Tbps 48-port SFP28 card, 88-LC1-48Y8H-EM.

It works in Cisco 8808 and 8804 distributed systems alongside an 8800-RP2 route processor and 8808-FC1 or 8804-FC1 fabric cards, and requires Cisco IOS XR Release 26.3.1 or later. It cannot coexist with Q200-based line cards in the same system.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carrier-class Cisco IOS XR Software that is modular, patchable, scalable and highly available
- Line-rate MACsec encryption across all ports
- Flexible port speeds from 1 GbE to 400 GbE
- Supports 400 GbE Digital Coherent Optics (DCO)
- Segment Routing (SR, SRv6) and EVPN programmable infrastructure
- Class C PTP timing for precise synchronisation
- Deep buffering and high-scale routing for aggregation and edge
- Automation and closed-loop optimisation through Cisco Crosswork Network Automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product ID: 88-LC1-16H16F-EM
- Ports: 16 x QSFP28, 8 x QSFP28-DD, 16 x QSFP56-DD
- Capacity: 9.6 Tbps
- NPU: Cisco Silicon One K100 (7 nm)
- CPU, memory and storage: 8-core x86-64 CPU, 64 GB DRAM, 480 GB SSD
- Port rates: 400, 100, 40, 25, 10 and 1 GbE with flexible port rate configuration
- Supported pluggables: SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP28-DD, QSFP56, QSFP56-DD
- Encryption: Line-rate MACsec on all ports
- Timing: Precision Time Protocol (PTP) with Class C performance
- Optical: Routed optical network architecture ready, supports 400 GbE DCO
- System requirements: 8800-RP2 route processor and 8808-FC1 or 8804-FC1 fabric cards
- Minimum software: Cisco IOS XR Release 26.3.1
- Height: 5.33 cm (2.10 in)
- Width: 45.97 cm (18.10 in)
- Length: 45.24 cm (17.81 in)
- Weight: 12.4 kg (27.3 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 5% to 95% +- 2%
- Altitude: 0 to 3000 m
- NEBS: Designed to meet GR-63-CORE and GR-1089-CORE
- RoHS: RoHS 6 compliant with exceptions for leaded BGA balls and lead press-fit connectors
- Safety: AS/NZS 62368-1, EN 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1

FAQs

Q: Does this line card need a software licence?
A: Yes. Cisco IOS XR software licensing is required, either Flexible Consumption Model 2.0 or a perpetual licence at Essential, Advantage or Premium tier. The line card PID itself does not include a specific tier.

Q: Which chassis, route processor and fabric cards does it work with?
A: It works in Cisco 8808 (8-slot) and 8804 (4-slot) distributed systems with an 8800-RP2 route processor and 8808-FC1 or 8804-FC1 fabric cards. It requires Cisco IOS XR Release 26.3.1 or later.

Q: Can it be installed alongside Q200-based line cards?
A: No. This K100-based line card cannot coexist with Q200-based line cards in the same system.

Q: Which optics and port speeds does it support?
A: It supports SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP28-DD, QSFP56 and QSFP56-DD pluggables, with port rates of 400, 100, 40, 25, 10 and 1 GbE.

Q: How does it differ from the 88-LC1-48Y8H-EM?
A: This card provides 9.6 Tbps across 16 QSFP28, 8 QSFP28-DD and 16 QSFP56-DD ports, while the 88-LC1-48Y8H-EM provides 4.8 Tbps across 48 SFP28 ports.
