Aruba

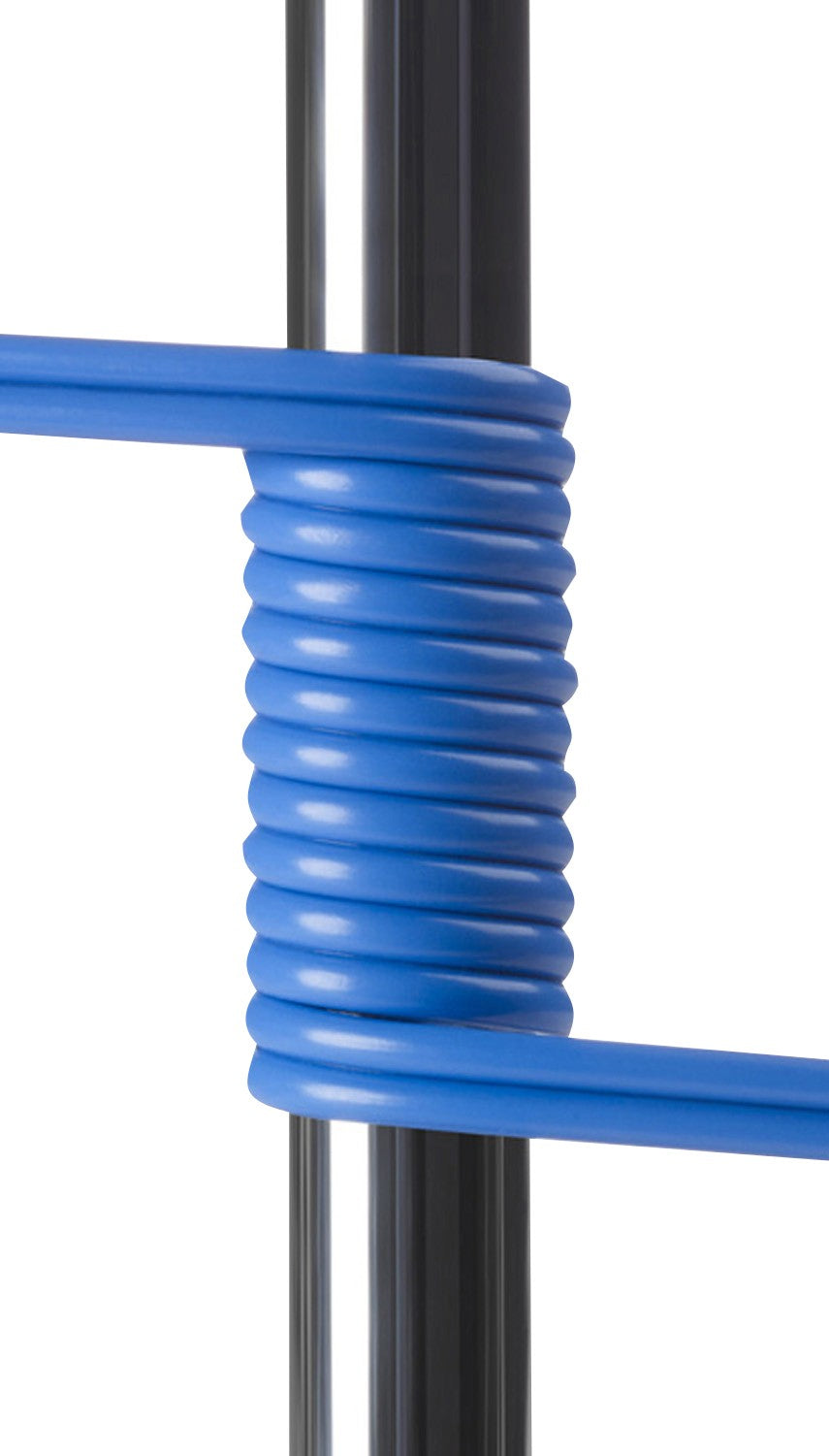

Aruba R6F29A | Premier Flex MPO-12 APC OS2 Trunk Cable, 100m

SKU:R6F29A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 100m single-mode OS2 9/125um fibre trunk cable is terminated with MPO12 angled physical contact (APC) connectors at both ends and carries 12 fibres with Type-B polarity. It suits data centre, SAN and LAN links and can be used with 400G DR4 and similar single-mode MPO transceivers. The 100m length and green APC connectors set it apart from other lengths in the Premier Flex MPO12 single-mode range.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for data centre, SAN and LAN Fibre Channel and 10GbE applications
- Improved performance under bend
- Maximum bandwidth and optical performance
- Easy installation and future-proof design
- Supported as a cable option for 400G DR4 APC transceivers (R8M60B, S6B54A)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Single-mode 9/125um (OS2) cable assembly
- MPO12 APC (angled physical contact) connectors on each end
- 12 fibres
- Connector colour: Green
- Cable polarity: Type-B
- Length: 100m
- 1-pack
- RoHS compliant

FAQs

Q: What connectors does this cable use?
A: It uses MPO12 APC (angled physical contact) connectors on both ends, colour-coded green, with 12 single-mode fibres.

Q: Is this cable single-mode or multimode?
A: It is single-mode 9/125um (OS2) fibre, so it should be paired with single-mode MPO transceivers rather than multimode optics.

Q: Can it be used with 400G DR4 transceivers?
A: Yes. It is supported as a cable option for 400G DR4 APC transceivers such as R8M60B and S6B54A.

Q: What polarity does this trunk cable have?
A: It is Type-B polarity, which is the standard arrangement for parallel-optic links using MPO12 connectors.

Q: How long is this cable?
A: This SKU is 100m, supplied as a single cable. Other lengths in the Premier Flex MPO12 single-mode range are sold under separate part numbers.
