Aruba

Aruba R4D64A | MPO-12 APC to 4x LC Breakout Cable, OS2, 10m

SKU:R4D64A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This single-mode OS2 fibre breakout cable splits a parallel-optic port into four separate duplex LC links. It is built for data centre deployments that break out 400G DR4 into 4 x 100G, or 100G PSM4 into 4 x 25G, typically from a switch to a patch panel or to individual duplex-LC devices.

The cable is 10 m long and uses 9/125um single-mode fibre. One end carries an angled-polish (APC) MPO12 connector, and the other end splits into four duplex LC connectors with flat UPC polish. Polarity is Type-B and the maximum reach is 500 m for both 100G PSM4 and 400G DR4. The jacket is yellow LSZH, with a 30 mm minimum recommended bend radius and attenuation of 0.4 dB/km at 1310 nm.

It is intended for single-mode parallel-optic transceivers such as 100G PSM4 and 400G DR4 modules. It is a passive cable and needs no power, and it is not suitable for multimode optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Breaks out a parallel-optic MPO port into four duplex LC links
- APC MPO connector for low back-reflection on single-mode parallel optics
- Supports 400G DR4 to 4 x 100G and 100G PSM4 to 4 x 25G breakouts

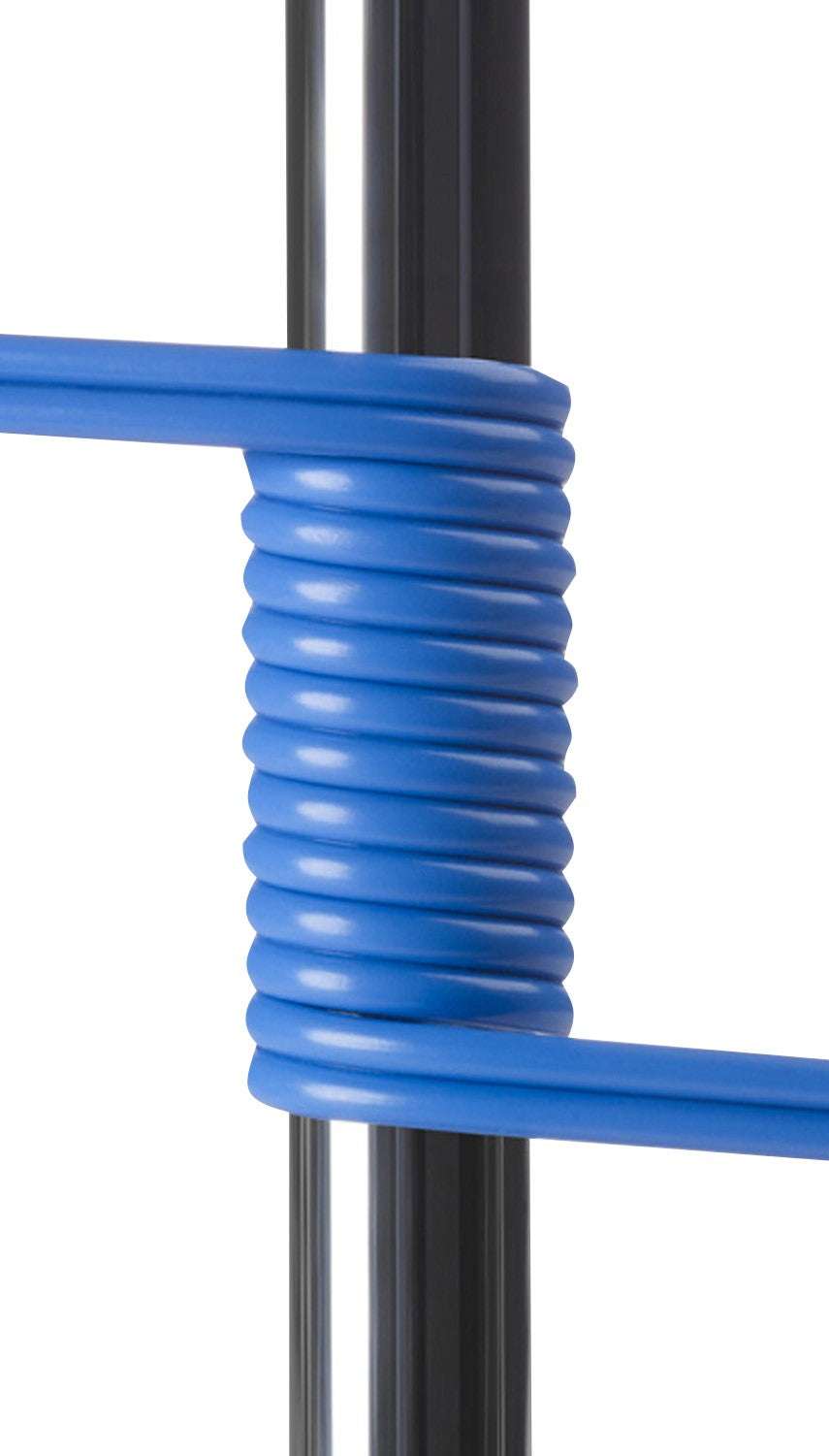

- Bend-tolerant design with a 30 mm minimum recommended bend radius
- LSZH jacket suitable for data centre use
- Passive cable with no power requirement
- RoHS compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Fibre type: Single-mode OS2, 9/125um
- Connector A: MPO12 angled physical contact (APC), green
- Connector B: 4 x duplex LC, flat UPC, blue
- Cable length: 10 m (33 ft)
- Cable polarity: Type-B
- Maximum reach: 500 m (100G PSM4 / 400G DR4)
- Core diameter: 9 um
- Cladding diameter: 125 um
- Jacket colour: Yellow
- Jacket material: LSZH (low smoke zero halogen)
- Optical attenuation: 0.4 dB/km at 1310 nm
- Minimum recommended bend radius: 30 mm
- Loss at bend radius (1310 nm): less than 0.1 dB at 30 mm (100 turns)
- Power: Passive, no power required
- RoHS: Compliant

FAQs

Q: Which optics does this breakout cable work with?
A: It is intended for single-mode parallel-optic transceivers such as 100G PSM4 and 400G DR4, for example HPE 400GbE QSFP112/OSFP DR4 500m transceivers.

Q: Can I use it with multimode optics?
A: No. This is an OS2 single-mode cable and is not for use with multimode optics.

Q: What is the maximum reach?
A: The maximum reach is 500 m for both 100G PSM4 and 400G DR4 links.

Q: Does it need power or a licence?
A: No. It is a passive fibre cable, so it needs no power and no licence.

Q: What breakout does it provide?
A: It splits one MPO12 APC connector into four duplex LC connectors, for example 400G DR4 into 4 x 100G or 100G PSM4 into 4 x 25G.
