Aruba

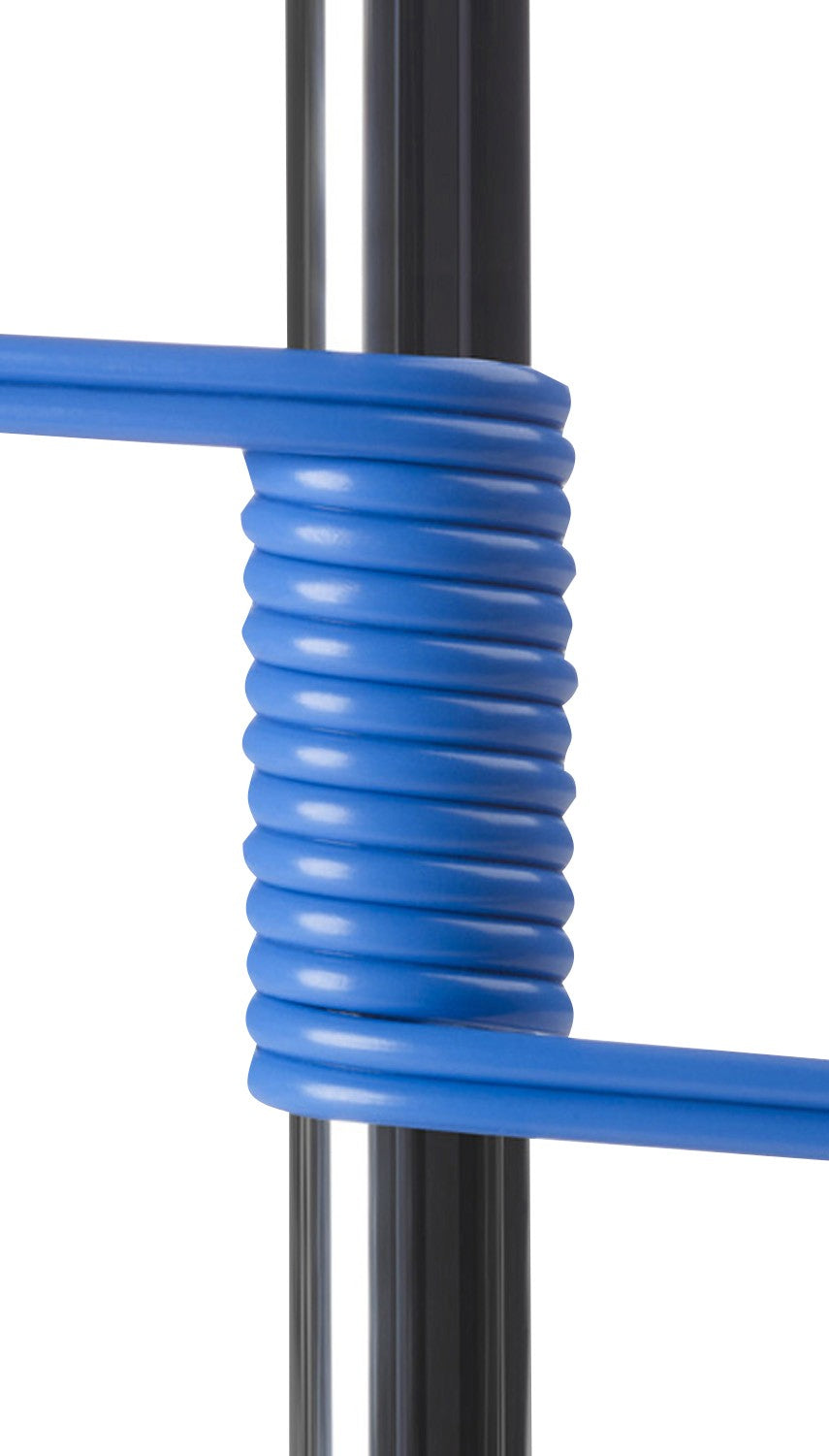

Aruba R4D60A | MPO-12→4x LC duplex OS2 SMF breakout, 15m | Optics: 100GBASE-PSM4/40GBASE-PLR4 to 4x25G/10G LR, 1310nm, long‑reach SMF; Connectors: MPO-12, LC duplex

SKU:R4D60A

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Single‑mode OS2 breakout harness for splitting one MPO‑12 PSM4/PLR4 port into four LC duplex links for long‑reach deployments. Ideal for 100G PSM4 to 4×25G LR or 40G PLR4 to 4×10G LR migration paths. Factory terminated, low‑loss ferrules, bend‑insensitive 9/125 µm fiber, and yellow jacket for quick identification. Length: 15 m. Standards compliant (TIA‑568.3‑D, IEC 61754‑7).

Features

- Purpose‑built for PSM4/PLR4 to LC long‑reach breakouts
- Low‑loss terminations to protect LR link budgets
- Bend‑insensitive OS2 for robust routing in racks and trays
- Standards‑compliant for multi‑vendor interoperability
- Yellow jacket for rapid single‑mode identification

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Can this break out a 100G PSM4 port to four 25G LR links?
A: Yes. It is designed for PSM4/PLR4 single‑mode breakout to LC‑based LR links, subject to optics compatibility.

Q: Is this suitable for campus or data center long runs?
A: Yes. OS2 SMF supports long‑reach optics; the 15 m harness length is well within LR budgets (reach is transceiver‑dependent).

Q: Does this work with CWDM or DWDM optics?
A: The LC legs can connect to LR/ER/ZR class optics; wavelength plans (CWDM/DWDM) depend on the transceivers used.

Q: How do I confirm MPO keying/pin requirements?
A: Check your transceiver or module datasheet for the required MPO gender and keying to ensure proper mating.

Q: Is the fan‑out leg length included in the stated length?
A: Yes. The listed length refers to the overall end‑to‑end assembly.

Technical Specifications

- Cable type: OS2 single‑mode (9/125 µm), bend‑insensitive
- Length: 15 m
- Connector A: MPO‑12 (MTP) interface
- Connector B: 4× LC duplex breakout
- Fiber count: 8 active fibers via 4 duplex LC legs (from 12‑fiber MPO)
- Supported applications: 100GBASE‑PSM4/40GBASE‑PLR4 → 4×25G/10G LR breakouts at 1310 nm
- Wavelength: 1310 nm (LR/SMF)
- Long‑reach capable (transceiver‑limited, cable length not the constraint)
- Jacket color: Yellow (OS2 identification)
- Compliance: TIA‑568.3‑D, IEC 61754‑7 (MPO), IEC 11801, RoHS
