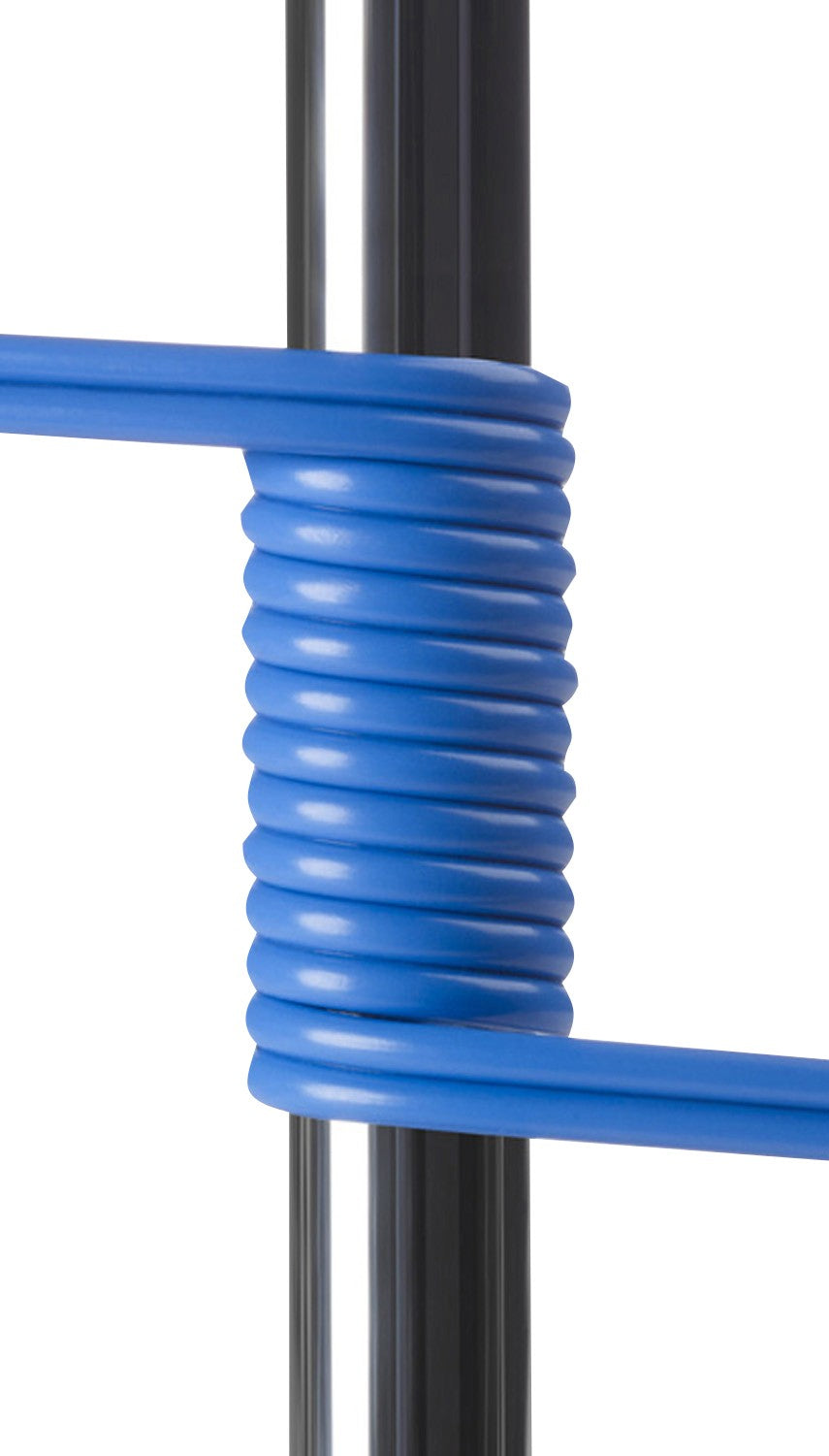

Aruba R4D59A | Premier Flex MPO16 to 8x LC OM4 Breakout Cable, 30m

SKU:R4D59A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This HPE Premier Flex fibre breakout cable splits one MPO16 angled connector into eight duplex LC connectors over a 30 m run of bend-tolerant OM4 multimode fibre. It is built for data-centre and storage-network structured cabling where 400G SR8 ports are broken out into 8 x 50G links.

The assembly uses 50/125um graded-index OM4 fibre with a bandwidth of 4700 MHz-km at 850 nm and an optical insertion loss of 0.5 dB. Maximum reach is 100 m for both 8x26.56 Gb PAM4 and 8x25.78 Gb NRZ signalling. The MPO16 end is an angled, female, UPC connector, and the eight LC ends are duplex UPC. The blue OFNR / LSZH jacket is RoHS compliant, and the minimum recommended bend radius is 7.5 mm.

It is intended for 400GBASE-SR8 (MPO16) optics breaking out to 8 x 50GBASE-SR (LC duplex) at 850 nm over OM4. This 30 m length sits at the top of the Premier Flex family range, alongside the 5 m, 10 m and 15 m lengths.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- MPO16 to 8 x LC duplex breakout for 400G to 8 x 50G fan-out
- Bendable OM4 fibre reduces kinks and signal loss in tight cabinet routing
- Up to 10 times better bend performance than conventional fibre cables, per HPE
- Supports 100 m reach on OM4 for both PAM4 and NRZ signalling
- Low 0.5 dB optical insertion loss
- LSZH jacket, RoHS compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Cable type: HPE Premier Flex MPO16/8xLC multimode OM4 16-fibre cable
- Breakout: MPO16 (APC, angled, female) to 8 x duplex LC (UPC)
- Fibre type: Graded-index, bendable multimode OM4 50/125um
- Core diameter: 50um ±3um
- Cladding diameter: 125um ±2um
- Length: 30 m
- Maximum reach: 100 m (8x26.56 Gb PAM4 / 8x25.78 Gb NRZ)
- Bandwidth: 4700 MHz-km @ 850 nm (laser)
- Optical insertion loss: 0.5 dB
- Jacket colour: blue
- Jacket material: OFNR (riser) LSZH thermoplastic
- Minimum recommended bend radius: 7.5 mm
- Bend loss at 850 nm: <0.05 dB @ 35.7 mm (2 turns)
- Bend loss at 850 nm: <0.1 dB @ 15 mm (2 turns)
- Bend loss at 850 nm: <0.2 dB @ 7.5 mm (2 turns)
- Compliance: RoHS compliant

FAQs

Q: What optics is this breakout cable designed for?
A: It is designed for 400GBASE-SR8 (MPO16) optics breaking out to 8 x 50GBASE-SR (LC duplex) at 850 nm over OM4 multimode fibre.

Q: What is the maximum reach?
A: Maximum reach with no bend is 100 m for both 8x26.56 Gb PAM4 and 8x25.78 Gb NRZ signalling on OM4.

Q: Does the cable need power?
A: No. It is a passive fibre cable and needs no power.

Q: What lengths are available in this range?
A: The Premier Flex MPO16 to 8xLC OM4 family covers 5 m (R4D56A), 10 m (R4D57A), 15 m (R4D58A) and this 30 m length.

Q: How tightly can the cable be bent?
A: The minimum recommended bend radius is 7.5 mm, with bend loss below 0.2 dB at that radius over two turns at 850 nm.
