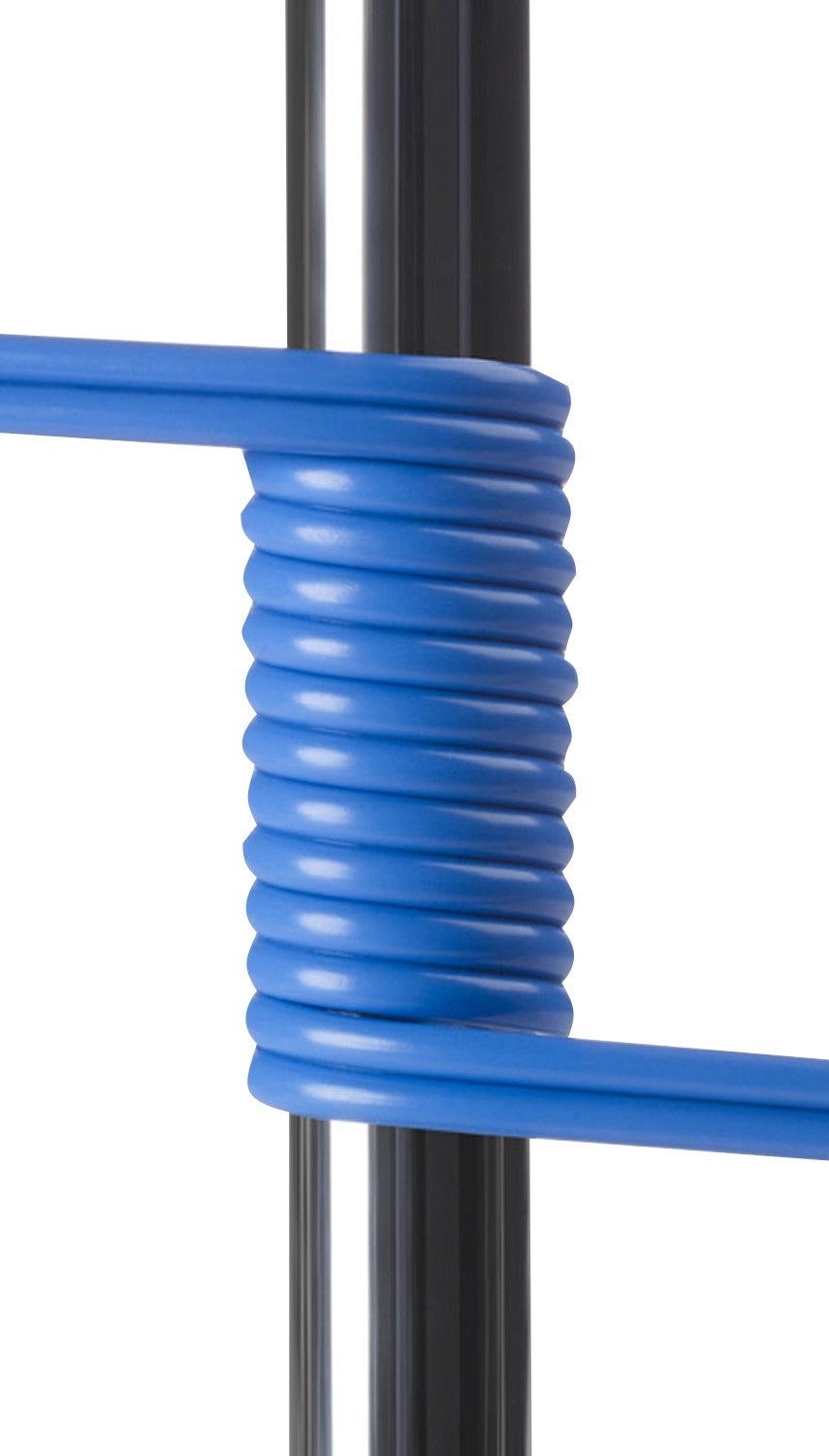

Aruba R4D55A | MPO16 to MPO16 OM4 Trunk Patch Cable, 16-Fibre, 30m

SKU:R4D55A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 30 m MPO16-to-MPO16 trunk cable carries 16 fibres of OM4 50/125um bend-insensitive multimode fibre. It is designed for direct connection of 400G SR8 QSFP-DD optics and for SAN director inter-chassis links. Angled female MPO16 connectors with Type-B polarity support reach up to 100 m, and the bendable fibre tolerates tight routing in dense rack environments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Bendable-fibre technology gives up to 10x better bend performance than conventional fibre cables
- Suitable for the 400G QSFP-DD SR8 transceiver (MPO16 APC) for direct-connect applications
- Used as the inter-chassis link cable for HPE SN8800B SAN Director switches
- MPO16 connectors are keyed differently from MPO12, which prevents them being plugged into the wrong transceiver type
- Supported cable for Aruba CX 8325 series switches

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- MPO16 to MPO16, 16-fibre multimode trunk cable
- OM4 50/125um graded-index bendable multimode fibre
- Length: 30 m (98.43 ft)
- MPO connector type: angled, female, UPC
- Polarity: Type-B
- Maximum reach (no bend): 100 m for 8x26.56 Gb (PAM4) and 8x25.78 Gb (NRZ)
- Bend loss at 850 nm: <0.05 dB @ 35.7 mm, <0.1 dB @ 15 mm, <0.2 dB @ 7.5 mm (2 turns)
- RoHS compliant

FAQs

Q: What type of fibre does this cable use?
A: It uses OM4 50/125um graded-index bend-insensitive multimode fibre in a 16-fibre MPO16 trunk.

Q: Which transceivers is this cable suited to?
A: It suits the 400G QSFP-DD SR8 transceiver with MPO16 APC connectors for direct-connect applications.

Q: Can I plug this cable into an MPO12 transceiver?
A: No. MPO16 connectors are keyed differently from MPO12, which prevents them being connected to the wrong transceiver type.

Q: What is the maximum supported reach?
A: With no bends, the maximum reach is 100 m for both 8x26.56 Gb (PAM4) and 8x25.78 Gb (NRZ) operation.

Q: What length is this cable and what polarity does it use?
A: This cable is 30 m (98.43 ft) long and uses Type-B polarity with angled, female MPO16 connectors.
