Aruba

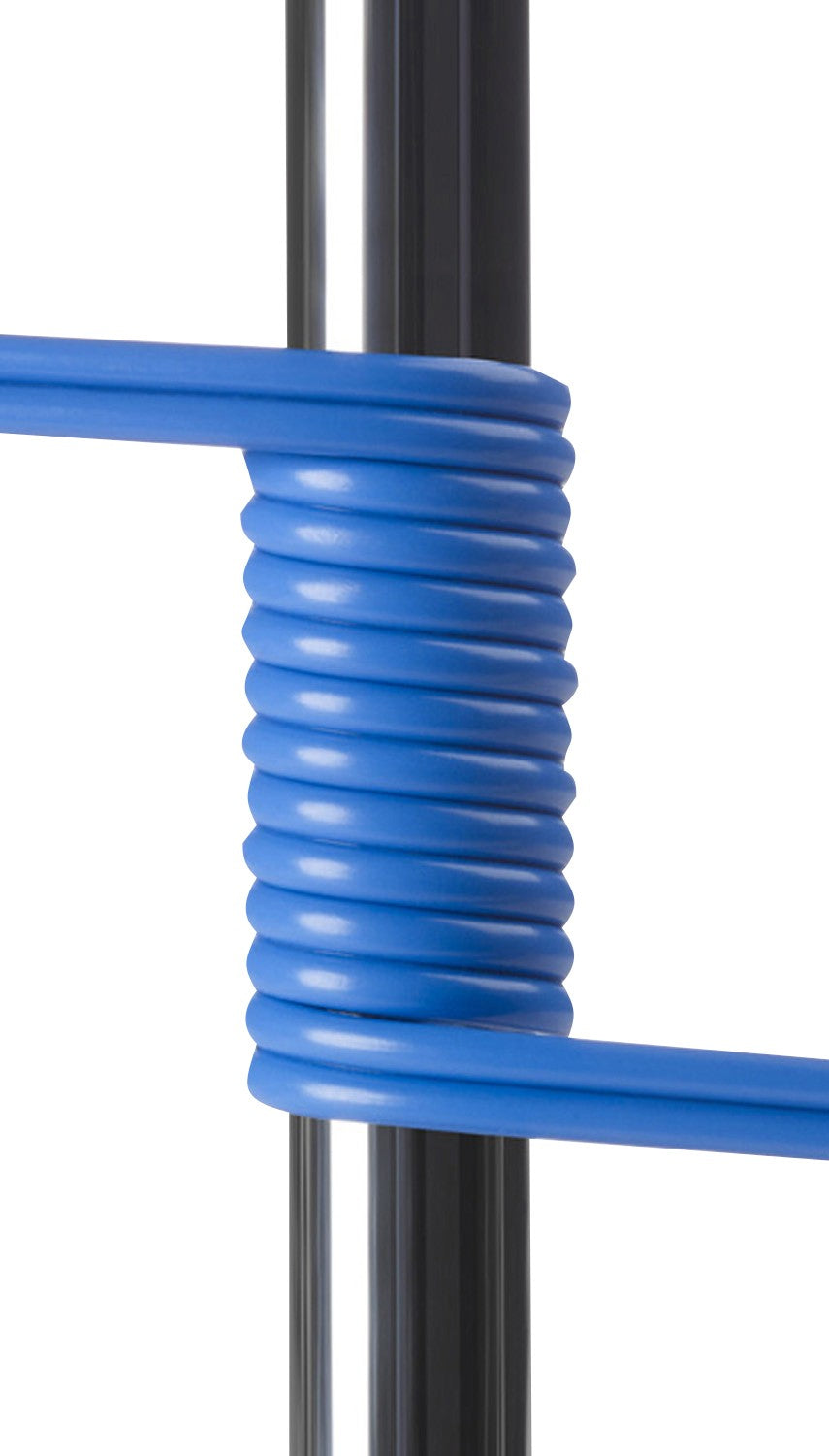

Aruba R4D52A | Premier Flex MPO16 APC OM4 Fibre Cable, 5m, 400G SR8

SKU:R4D52A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 5m multimode OM4 fibre cable carries 16 fibres and is terminated with MPO16 APC connectors at both ends. Built with bend-insensitive 50/125um fibre and Type-B polarity, it is designed for high-density direct-connect links between 400G QSFP-DD SR8 transceivers. The blue riser-rated LSZH jacket suits data centre and structured cabling runs, with up to 100m reach on 400G SR8 links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Bendable fibre technology with up to 10 times better bend performance than conventional fibre cables
- Improved fibre clarity and bandwidth for longer distances, higher data rates and fewer transmission errors
- Supports direct connection between 400G QSFP-DD MPO SR8 transceivers such as R8M63A and R9B41A
- Listed in the Aruba AOS-S/AOS-CX Transceiver Guide
- MPO16 APC connectors for high-density trunk and patch links

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Connectors: MPO16 to MPO16, APC (angled physical contact) on both ends
- Fibre: 16-fibre multimode OM4 50/125um graded-index
- Length: 5m (16.4 ft)
- Polarity: Type-B
- Core diameter 50um ±3um; cladding diameter 125um ±2um
- Bandwidth: 4700 MHz-km @ 850nm (laser)
- Optical insertion loss: 0.5 dB max @ 850nm
- Minimum recommended bend radius: 7.5 mm
- Maximum reach: 100m for 8x25.78Gb NRZ / 8x26.56Gb PAM4 (400G SR8)
- Jacket: blue OFNR riser-rated LSZH thermoplastic
- RoHS compliant
- Weight: approx. 0.26 lb

FAQs

Q: What type of fibre does this cable use?
A: It uses 16-fibre multimode OM4 50/125um graded-index fibre with a bandwidth of 4700 MHz-km at 850nm.

Q: Which transceivers is it designed to connect?
A: It is designed for direct-connect links between 400G QSFP-DD MPO SR8 transceivers such as R8M63A and R9B41A.

Q: What is the maximum supported reach?
A: Up to 100m for 400G SR8 links using 8x25.78Gb NRZ or 8x26.56Gb PAM4 signalling.

Q: What connectors and polarity does it use?
A: MPO16 APC connectors on both ends with Type-B polarity.

Q: What is the minimum bend radius?
A: The minimum recommended bend radius is 7.5 mm, thanks to the bend-insensitive fibre design.
