Aruba

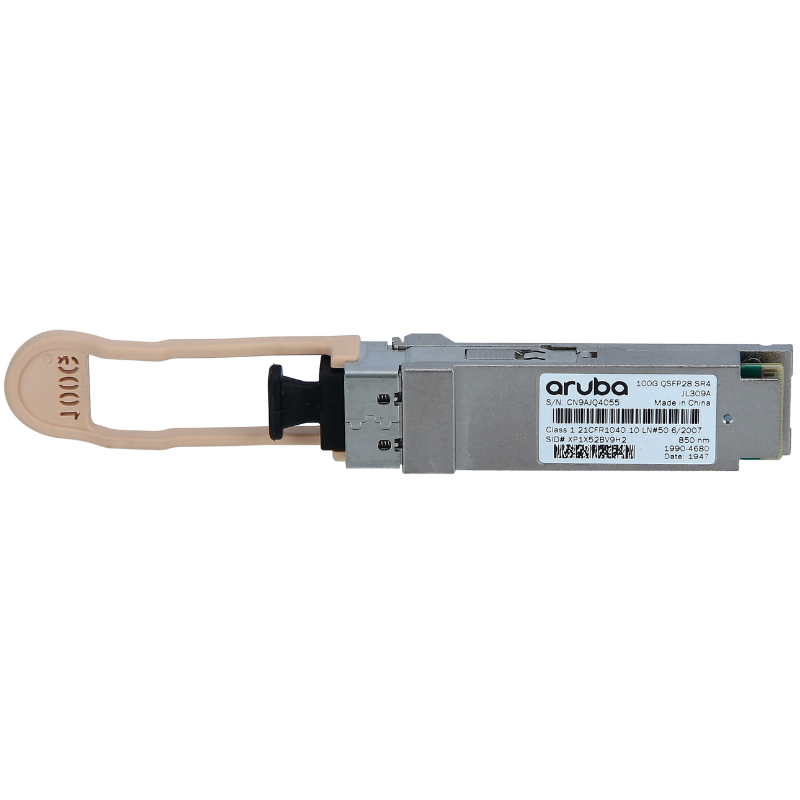

Aruba JL309A | 100G | QSFP28 | 100GBASE-SR4 MMF | 850 nm | 100 m (OM3), 150 m (OM4) | MPO-12

Aruba JL309A | 100G | QSFP28 | 100GBASE-SR4 MMF | 850 nm | 100 m (OM3), 150 m (OM4) | MPO-12

SKU:JL309A

Regular price $2,525.60 AUD
Regular price
$2,525.60 AUD
$2,525.60 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Title

Description

High-density 100G QSFP28 SR4 transceiver for short-reach multimode links using a 12-fiber MPO connector. Delivers four parallel 25G lanes at 850 nm with digital diagnostics and hot-swappable operation. Ideal for leaf–spine and aggregation links in campus and data center networks.

Features

- Standards-based 100GBASE-SR4 for short-reach MMF
- MPO-12 interface for high-density parallel optics
- Up to 150 m on OM4 for flexible data center runs
- Supports 4x25G breakout on capable platforms
- Hot-swappable with DOM for simplified operations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What cable polarity and type should I use?
A: Use OM3/OM4 MPO-12 cabling with appropriate polarity (typically Type-B) matched end-to-end.

Q: Can this module break out to 4x25G?
A: Yes, with an MPO-to-4xLC breakout cable and a switch that supports 4x25G breakout from a QSFP28 port.

Q: Is it compatible with other vendors’ SR4 optics?
A: It can interoperate with standards-compliant 100GBASE-SR4 modules when link budgets and polarity are correct.

Q: Does it require FEC?
A: FEC is typically not required for short-reach SR4 links but may be enabled per platform policy.

Q: What is the typical operating temperature range?
A: Commercial temperature range (approx. 0°C to 70°C). Check platform limits for exact values.

Technical Specifications

- Data rate: 100 Gbps Ethernet
- Standard: 100GBASE-SR4
- Form factor: QSFP28
- Wavelength: 850 nm VCSEL
- Fiber/cable: OM3/OM4 multimode (parallel)
- Connector: MPO-12 (female)
- Reach: up to 100 m (OM3), up to 150 m (OM4)
- Lanes: 4x 25G parallel optics
- Breakout capability: supports 4x25G breakout with appropriate breakout cabling and switch support
- Digital diagnostics (DDM/DOM): supported
- Hot-swappable: yes
- Use cases: TOR/leaf-spine, short-reach aggregation
