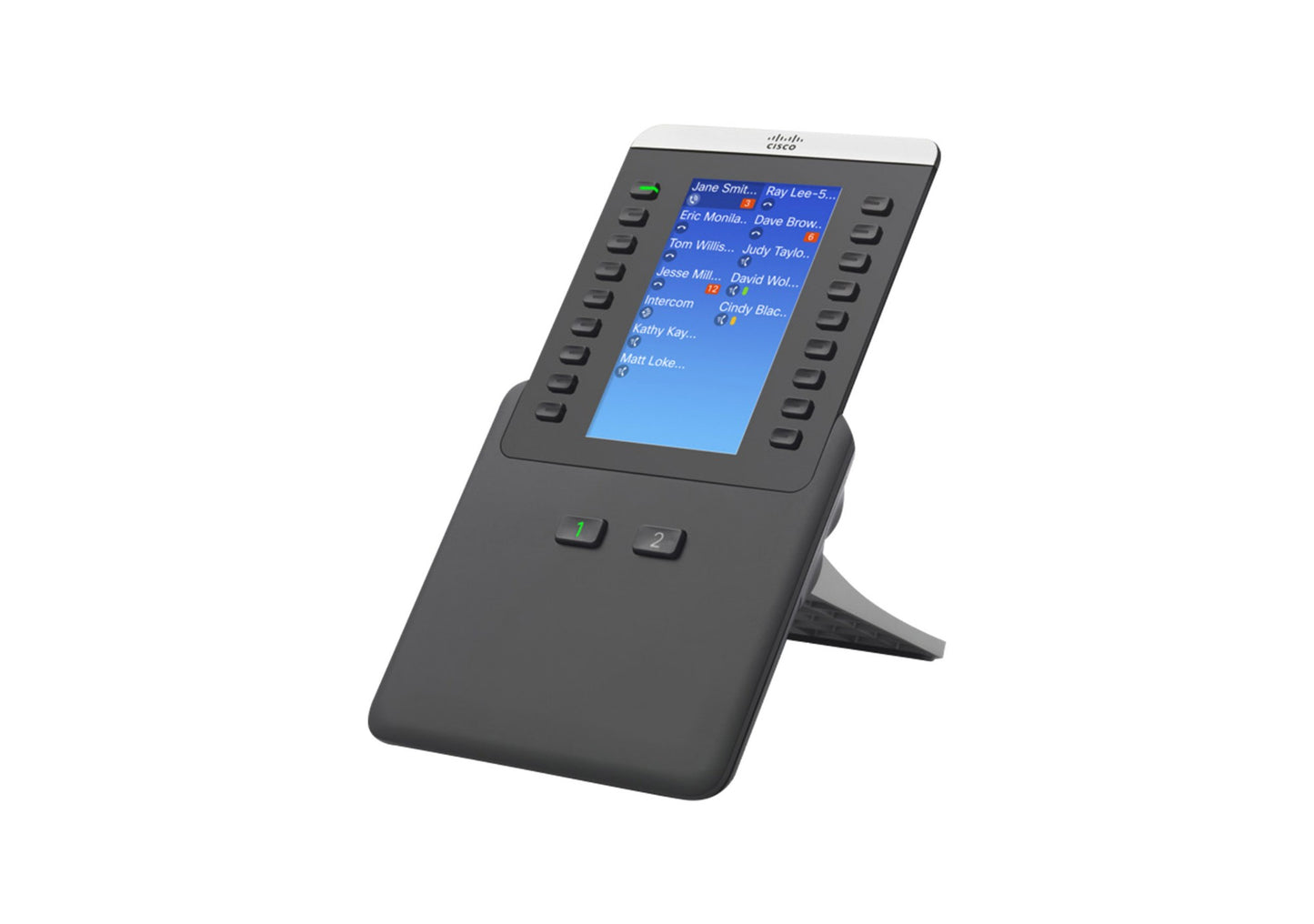

• Cisco CP-8800-V-KEM video key expansion module with 28 programmable keys
1 1

Cisco

Cisco CP-8800-V-KEM | IP Phone 8800 Video KEM, 28 Keys, Charcoal

CP-8800-V-KEM

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IP Phone 8800 Video Key Expansion Module adds extra line, speed-dial and feature buttons, plus a colour LCD, to the Cisco IP Phone 8865 and 8865NR video phones. It is built for call-coverage roles such as administrative assistants who need to watch and manage the status of many lines beyond those on the phone itself.

The module provides 14 physical illuminated keys, which become 28 keys using two pages. A 3.5-inch TFT colour LCD (320 x 480 pixels, 16-bit colour) makes button labels easy to read, and the display angle can be matched to the connected phone. Up to three modules can be attached to each 8865 or 8865NR. It draws 48 VDC at 117 mA maximum from the host phone and needs phone firmware 12.0.1.11 or later. Illuminated buttons show line status, and the page buttons flag alerting or on-hold calls on the other page.

The module registers through the host phone with Cisco Unified Communications Manager 10.5(2) or later, or Cisco Unified SRST 11.0 or later. No separate licence is listed for the module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 14 physical keys, giving 28 keys via page buttons, for directory numbers, speed dials or programmable feature keys
- Illuminated buttons show line status: off for available, steady green for in use, steady red for in use on a shared line, flashing amber for ringing
- Illuminated page buttons show page focus and flag alerting or on-hold calls on the other page
- Large LCD makes button labels easy to identify, with brightness adjustable from the phone's settings menu
- Articulating display angle can be matched to the connected phone
- Follows the phone into sleep mode and wakes when any key on the module is pressed
- Designed as a call-coverage tool rather than an operator or attendant console

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Key expansion module for Cisco IP Phone 8865 and 8865NR video phones
- Physical keys: 14 illuminated keys
- Keys using pages: 28 across 2 pages
- Page buttons: 2 illuminated page buttons
- Display: 3.5-inch TFT colour LCD with backlight
- Display resolution: 320 x 480 pixels, 16-bit colour
- Maximum modules per phone: 3
- Power: 48 VDC, 117 mA maximum, drawn from the host phone
- Dimensions (H x W x D): 229 x 113 x 87 mm
- Weight: 458 g
- Operating temperature: 0 to 40 C
- Storage temperature: -10 to 60 C
- Relative humidity: 10 to 95%
- Phone firmware: 12.0.1.11 and later
- Call control: Cisco Unified Communications Manager 10.5(2) and later, Cisco Unified SRST 11.0 and later
- Colour: Charcoal

FAQs

Q: Does this key expansion module need a separate licence?
A: No separate licence is listed for the module. It registers through the host phone, which must be registered with Cisco Unified Communications Manager 10.5(2) or later, or Cisco Unified SRST 11.0 or later.

Q: How is the module powered?
A: It has no power supply of its own and draws 48 VDC at 117 mA maximum from the host phone. With 802.3at PoE, the 8865 supports 1 to 3 modules, though USB fast-charging is lost with more than one unless UPoE is used. With 802.3af PoE, the 8865 does not work with a module. The Cisco IP Phone Power Cube 4 (CP-PWR-CUBE-4=) supports all listed configurations.

Q: Which phones does it work with?
A: This video module is for the Cisco IP Phone 8865 and 8865NR, with up to three modules per phone. It needs phone firmware 12.0.1.11 or later and Cisco Unified Communications Manager 10.5(2) or later.

Q: Can it be wall mounted?
A: The wall-mount kit for a single module supports the 8851 and 8861 audio phones only, not the 8865.

Q: How many keys does it provide?
A: It has 14 physical illuminated keys, which give 28 keys using the two page buttons. Each key can be set as a directory number, speed dial or programmable feature key.
