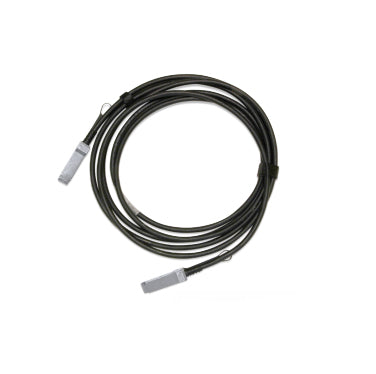

• NVIDIA MCP1600-C02AE30L 100G QSFP28 passive DAC cable 2.5m coiled
1 1

NVIDIA

NVIDIA MCP1600-C02AE30L | LinkX 100G QSFP28 DAC Cable, 2.5m, 30AWG, RS-FEC

MCP1600-C02AE30L

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The LinkX MCP1600 100G QSFP28 DAC is a passive direct attach copper cable for short-reach 100Gb/s Ethernet. It suits top-of-rack switch-to-server and switch-to-switch connections in data centres and HPC environments, and is a low-cost, power-efficient alternative to fibre optics for these links.

This version is 2.5m long, built from 30 AWG copper, with a black jacket and QSFP28 connectors on both ends. It carries 100GbE as four 25GbE lanes and is the CA-25G-L (RS-FEC) variant under IEEE 802.3bj. The connectors are SFF-8665 compliant and the cable is hot pluggable, running from a single 3.3V supply with an operating case temperature of 0 to 70 C.

It works with QSFP28 ports on NVIDIA and Mellanox 100GbE Ethernet switches and adapters. Because this is the RS-FEC version, the host port must support RS-FEC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 100GbE data rate over four 25GbE lanes
- SFF-8665 compliant QSFP28 connectors
- Hot pluggable for installation without powering down the host
- EEPROM in each QSFP28 connector holds product information the host system can read
- RoHS compliant
- Cost-effective, power-efficient alternative to fibre optics for short-distance interconnects

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Data rate: 100GbE (4 x 25GbE)
- Connector: QSFP28 to QSFP28, SFF-8665 compliant
- Cable type: Passive copper (DAC)
- Length: 2.5 m
- Length tolerance: +/-25 mm
- Wire gauge: 30 AWG
- Standard: IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC
- Cable colour: Black
- Single cable diameter: 7.1 +/- 0.35 mm
- Minimum bend radius: 35.5 mm single bend, 71 mm repetitive and assembly bend
- Operating case temperature: 0 to 70 C
- Supply voltage: Single 3.3 V
- Hot pluggable: Yes
- RoHS: Compliant

FAQs

Q: Does the host port need to support RS-FEC?
A: Yes. This SKU is the CA-25G-L version, which relies on RS-FEC, so the QSFP28 port at each end must support RS-FEC.

Q: What is the difference between the CA-L and CA-N versions?
A: The 2.5m and 3m lengths are offered as CA-25G-N and CA-25G-L cables. This SKU is the CA-L (RS-FEC) version.

Q: Does this cable need external power?
A: No. It is a passive cable and runs from the single 3.3V supply provided by the host port.

Q: What equipment does it connect?
A: It links QSFP28 ports on NVIDIA and Mellanox 100GbE Ethernet switches and adapters, typically for short top-of-rack runs.

Q: Is it a 100G cable made of fibre?
A: No. It is a passive copper direct attach cable with fixed QSFP28 connectors, intended for short-reach links.
