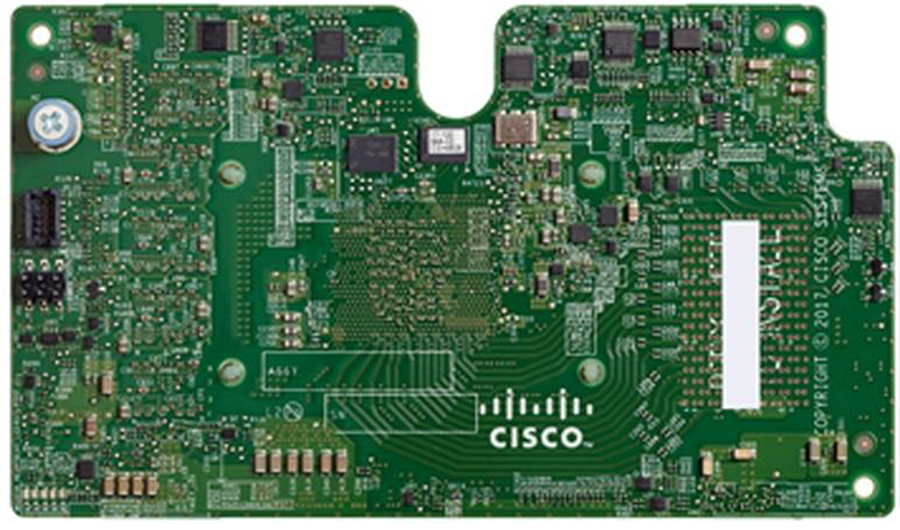

Cisco HX-M-V25-04 UCS VIC 1467 quad port 25G SFP28 mLOM

Cisco HX-M-V25-04 UCS VIC 1467 quad port 25G SFP28 mLOM

SKU: HX-M-V25-04

The Cisco HX-M-V25-04 UCS VIC 1467 is a high-performance quad port 25G SFP28 mLOM designed for use in Cisco's Unified Computing System (UCS). This mezzanine adapter enhances server capabilities by providing four high-speed ports to support demanding data and workload management. Optimized for virtualized environments, it offers exceptional throughput and low latency, making it ideal for data centers requiring optimal network performance. Its integration into the UCS infrastructure allows for streamlined management and scalability, ensuring efficient operations and compatibility with a wide range of network deployments.

view video image

Features

  • Quad-port 25G SFP28 network interface card
  • Supports Cisco Unified Computing System (UCS) B-Series, C-Series, and HX-Series servers
  • Integration with Cisco IO Visor and Virtual Interface Card (VIC) technology
  • Robust network connectivity with high-performance and low-latency
  • Supports advanced networking features like overlay encapsulation, network virtualization, and hardware-based packet processing
  • Ideal for cloud computing, Big Data, and high-performance computing (HPC) environments
  • Supports quality of service (QoS) and traffic management
  • Consolidated I/O for multiple traffic types: internet, storage, and inter-process communication

Technical Specifications

  • Product Model: UCS VIC 1467
  • Part Number: HX-M-V25-04
  • Form Factor: Modular LAN on Motherboard (mLOM)
  • Ports: 4 x 25G SFP28
  • Connectivity: Ethernet
  • Data Rate: Up to 25 Gbps per port
  • Interface Type: PCI Express
  • Protocols Supported: RoCE, iSCSI, TCP/IP
  • Advanced Features: Overlay network support (VXLAN and NVGRE), Quality of Service (QoS), network segmentation
  • Supported Platforms: Cisco UCS B-Series, C-Series, and HyperFlex HX-Series
  • Operating Temperature Range: Operational: 10°C to 35°C (50°F to 95°F), Non-operational: -40°C to 70°C (-40°F to 158°F)
  • Humidity: 5% to 93% non-condensing
  • Dimensions: Standard mLOM size
  • Compliance: RoHS, FIPS, and TAA compliant

Frequent Ask Questions
  • What is the Cisco HX-M-V25-04 UCS VIC 1467?

    The Cisco HX-M-V25-04 UCS VIC 1467 is a quad port 25G SFP28 mLOM module designed for Cisco UCS servers. It provides high-performance connectivity for transactional applications, cloud environments, and virtualized workloads.

  • What are the key features of the Cisco HX-M-V25-04 UCS VIC 1467?

    Key features include four 25-Gigabit Ethernet ports, SFP28 connectivity, support for Cisco UCS Manager, and high network throughput for demanding data center applications.

  • Which servers are compatible with the Cisco HX-M-V25-04 UCS VIC 1467?

    This module is compatible with Cisco UCS B-Series Blade Servers and C-Series Rack Servers that support mLOM slots.

  • Does the Cisco HX-M-V25-04 support virtualization technologies?

    Yes, this module supports virtualization technologies including VMware, Hyper-V, and KVM, allowing for flexible and scalable virtualized environments.

  • How do I install the Cisco HX-M-V25-04 UCS VIC 1467?

    The installation process involves inserting the module into the server\'s mLOM slot and securing it with the appropriate screws. Detailed instructions can be found in the server\'s hardware installation guide.

  • What type of cables are required for the Cisco HX-M-V25-04 UCS VIC 1467?

    This module requires SFP28-compatible cables for 25-Gigabit Ethernet connections. Ensure to use compatible transceivers and cables to achieve optimal performance.

  • Is there any specific software needed for the Cisco HX-M-V25-04 UCS VIC 1467?

    The module is managed through Cisco UCS Manager, which must be configured to recognize and manage the VIC 1467. Make sure to have the latest version of UCS Manager for full compatibility and feature support.

  • Can I use the Cisco HX-M-V25-04 UCS VIC 1467 in a non-Cisco environment?

    This module is specifically designed for Cisco UCS servers and might not be compatible with non-Cisco hardware or management systems.
