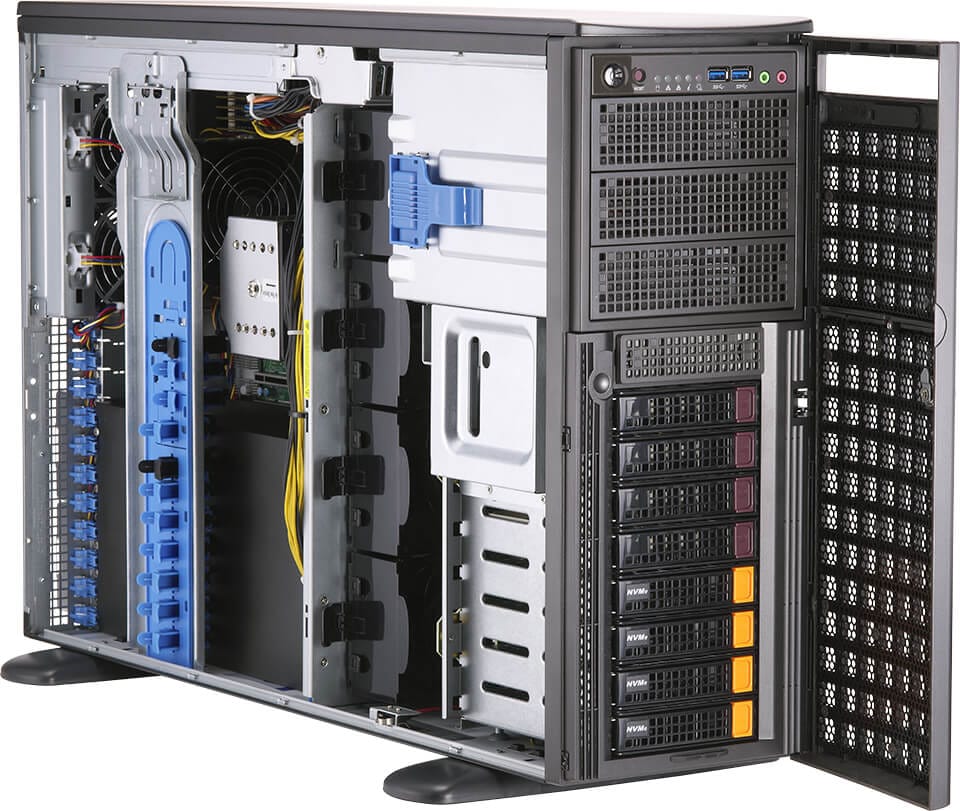

• Black and silver supermicro sys-740gp-tnrt server rack with blue fiber ports and colorful drive bays for gpu workstation
1 1

Supermicro

Supermicro SYS-740GP-TNRT | X12 Dual Xeon Scalable GPU Workstation, 4x GPU, 4TB RAM

SYS-740GP-TNRT

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SYS-740GP-TNRT is a full-tower 4U rackmountable GPU workstation engineered for AI/deep learning, high-performance computing, scientific visualization, and rendering. Powered by dual 3rd Gen Intel Xeon Scalable processors with 16 DDR4 DIMM slots supporting up to 4TB RAM, it accommodates up to four double-wide GPUs across seven PCIe 4.0 slots. With 8 hot-swap 3.5-inch drive bays supporting hybrid NVMe/SATA/SAS configurations, dual 10GbE networking, and redundant 2200W Titanium-level power supplies, this workstation delivers enterprise-grade performance for the most demanding workloads.

Features

Dual 3rd Gen Intel Xeon Scalable processor support with up to 40 cores/80 threads per CPU
- Intel C621A chipset with PCIe 4.0 support for high-bandwidth GPU and storage connectivity
- 16 DDR4 DIMM slots supporting ECC RDIMM/LRDIMM up to 4TB, with Intel Optane Persistent Memory compatibility
- Seven PCIe 4.0 expansion slots enabling up to four double-wide GPUs for AI/ML training and rendering
- Eight 3.5-inch hot-swap drive bays with hybrid NVMe/SATA/SAS support (up to 8 NVMe with optional backplane)
- Dual M.2 NVMe/SATA slots for redundant boot drives
- Dual 10GbE networking via Intel X550-AT2 controller for high-speed data transfer
- IPMI 2.0 with dedicated management port, remote KVM, and virtual media support
- Redundant 2200W 80 PLUS Titanium power supplies for maximum uptime and energy efficiency
- Optimal fan speed control with four heavy-duty removable fans for thermal management
- NVIDIA-Certified System validated for professional GPU workloads
- 4U rackmountable full-tower chassis for flexible deployment in data centers or workstation environments
- Supermicro management suite including SuperDoctor 5 and remote diagnostics tools

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Processor: Dual Socket P+ (LGA-4189) for 3rd Gen Intel Xeon Scalable processors, up to 270W TDP per CPU
- Chipset: Intel C621A
- Memory: 16x DDR4 DIMM slots, up to 4TB ECC RDIMM/LRDIMM DDR4-3200/2933/2666 MHz; supports up to 6TB with Intel Optane Persistent Memory 200 series
- Storage: 8x 3.5-inch hot-swap drive bays (up to 8 NVMe drives, 4 NVMe supported by default); 2x M.2 slots (NVMe or SATA) for boot drives
- Expansion: 4x PCIe 4.0 x16 double-width slots, 2x PCIe 4.0 x16 single-width slots, 1x PCIe 4.0 x8 low-profile slot; supports up to 4 double-wide GPUs
- Networking: Dual 10GbE RJ45 ports (Intel X550-AT2); dedicated IPMI 2.0 management port with KVM and virtual media
- Power Supply: Dual 2200W redundant 80 PLUS Titanium-level power supplies
- Cooling: 4x removable heavy-duty fans with optimal fan speed control
- Form Factor: Full-tower / 4U rackmountable; Dimensions: 177 x 465.4 x 678.5mm (6.96 x 18.32 x 26.71 inches)
- Management: IPMI 2.0, SuperDoctor 5, Super Diagnostics Offline, Supermicro Thin-Agent Service

FAQs

Q: What GPUs are compatible with the SYS-740GP-TNRT?
A: The system supports up to four double-wide full-length GPUs in PCIe 4.0 x16 slots. It is NVIDIA-Certified and compatible with professional NVIDIA GPUs commonly used for AI training, HPC, and rendering workloads.

Q: Can I configure the drive bays for a mix of NVMe and SATA drives?
A: Yes, the eight 3.5-inch hot-swap bays support hybrid configurations. By default, four NVMe drives are supported, with the remaining bays for SATA drives. Optional SAS controller cards enable full SAS support across all eight bays.

Q: What operating systems are certified for this workstation?
A: The SYS-740GP-TNRT is certified for Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2019/2022, and Citrix Hypervisor, making it suitable for diverse enterprise and HPC environments.

Q: What is the maximum memory configuration?
A: The workstation supports up to 4TB of DDR4 ECC RDIMM/LRDIMM memory across 16 DIMM slots. When combined with Intel Optane Persistent Memory 200 series, total memory can reach up to 6TB for memory-intensive applications.

Q: Is the chassis convertible between tower and rackmount configurations?
A: Yes, the 4U full-tower chassis is rackmountable, providing flexible deployment options for both tower desktop use and standard 19-inch rack installations in data centers or labs.
