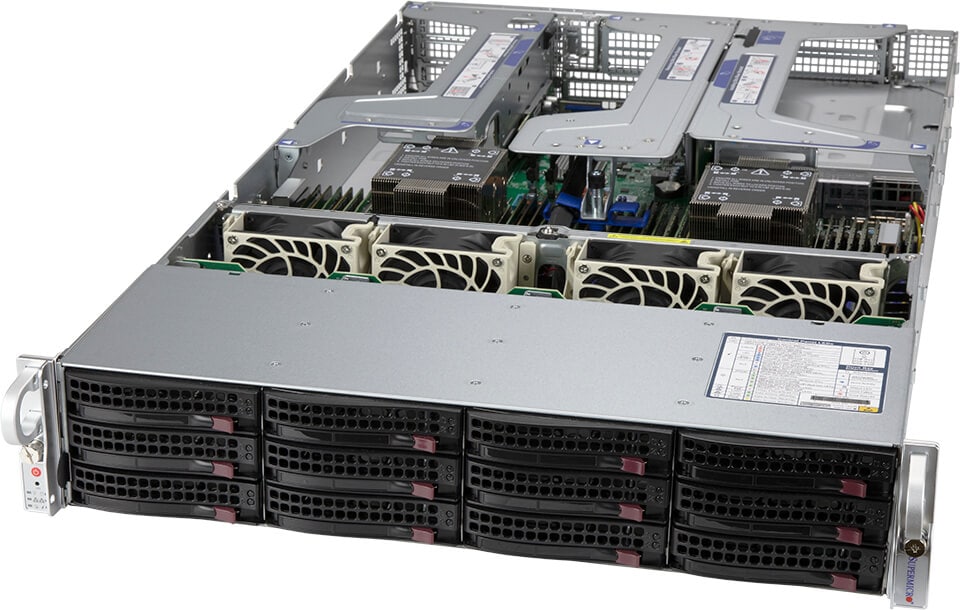

Supermicro SYS-620U-TNR | X12 Ultra 2U Dual Xeon Server, 32 DDR4, 8TB, 12x 3.5

Q: What types of storage configurations does the SYS-620U-TNR support?
A: The system features 12 hot-swap 3.5-inch drive bays that support hybrid NVMe, SAS, and SATA configurations. It natively supports 10 NVMe drives and 12 SATA drives. With optional controller cards, you can enable full 12-drive NVMe or SAS support, and there's an optional 2 additional hot-swap SATA bays on the rear panel.

Q: Can this server support Intel Optane Persistent Memory?
A: Yes, the SYS-620U-TNR supports Intel Optane Persistent Memory 200 series. When combined with DDR4 RDIMM or LRDIMM modules, the system can support up to 12TB total memory capacity (8TB Optane + DDR4). With DDR4 modules alone, the maximum is 8TB.

Q: What networking options are available for this server?
A: The system offers flexible networking through optional Intel NICs: either dual 10GbE RJ45 ports (X710-AT2), or dual 10GbE RJ45 plus dual 10GbE SFP+ ports (X710-TM4). All configurations include a dedicated 1GbE RJ45 port for IPMI 2.0 remote management.

Q: How many PCIe expansion slots does the SYS-620U-TNR provide?
A: The server includes 8 PCIe 4.0 expansion slots: one x16 full-height, one x16 low-profile, two x8 slots, and four x8 full-height slots. With an optional RSC-W2-66G4 riser card, you can enable additional x16 slots in positions 5 and 7 for up to 4 GPU support, though this disables slots 6 and 8.

Q: What enterprise applications is the SYS-620U-TNR designed for?
A: This server is optimized for virtualization, high-performance computing (HPC), cloud computing, software-defined storage, high-end enterprise applications, application tier service providers, and 5G/Telco deployments. The dual Xeon Scalable processor architecture and large memory capacity make it ideal for mission-critical workloads requiring high performance and scalability.
