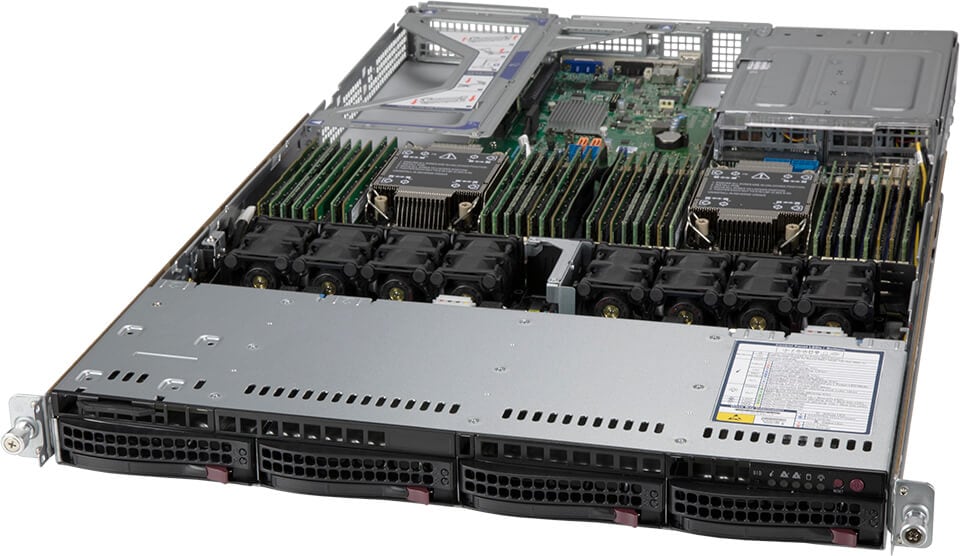

• Silver and black supermicro sys-610u-tnr dual xeon 1u rack server with cpu modules ram sticks and cooling fans visible inside
1 1

Supermicro

Supermicro SYS-610U-TNR | Dual Xeon 1U Rack Server, 32 DDR4, 4x 3.5" Hybrid

SYS-610U-TNR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro SYS-610U-TNR is a high-density 1U rackmount server engineered for virtualization, HPC, cloud computing, and software-defined storage. Supporting dual 3rd Gen Intel Xeon Scalable processors and up to 8TB of DDR4 memory across 32 DIMM slots, it delivers enterprise-grade performance with flexible hybrid storage supporting NVMe, SATA, and SAS drives. Equipped with PCIe 4.0 expansion, dual 10GbE networking options, and redundant 1200W Titanium-level power supplies, this platform is built for mission-critical workloads.

Features

Dual 3rd Gen Intel Xeon Scalable processor support with LGA-4189 sockets
- Intel C621A chipset for advanced I/O and reliability features
- 32 DIMM slots supporting up to 8TB DDR4 ECC memory or 12TB with Intel Optane Persistent Memory
- Hybrid storage backplane supporting 4x 3.5" hot-swap drives (NVMe/SATA/SAS) in any combination
- PCIe 4.0 expansion with four x16 slots for GPUs, network adapters, and RAID controllers
- Dual 10GbE networking options via Ultra riser cards (BaseT and/or SFP+)
- IPMI 2.0 dedicated management with KVM, virtual media, and remote access
- Redfish API support for modern data center automation
- Dual redundant 1200W 80 PLUS Titanium power supplies for efficiency and uptime
- Advanced thermal management with 8x heavy-duty fans and optimal speed control
- Tool-less hot-swap drive carriers for ease of maintenance
- Support for VROC (Virtual RAID on CPU) for NVMe RAID configurations
- TPM 2.0 header for hardware-based security and encryption
- Optional front-panel 2x hot-swap SATA drive bays for additional storage
- Chassis intrusion detection and inlet thermal sensors
- Compatible with Supermicro management suite: SuperDoctor 5, SSM, SPM, SUM, Supermicro Automation Assistant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U Rackmount (17.2" x 1.7" x 29.7")
- Processors: Dual Socket P+ (LGA-4189) for 3rd Gen Intel Xeon Scalable processors
- Chipset: Intel C621A
- Memory: 32 DIMM slots; up to 8TB DDR4 ECC RDIMM/LRDIMM (3200/2933/2666 MHz); supports Intel Optane Persistent Memory 200 series (up to 12TB combined)
- Drive Bays: 4x 3.5" hot-swap hybrid bays (NVMe/SATA/SAS support in any combination)
- Expansion Slots: 2x PCIe 4.0 x16 full-height (10.5" length), 1x PCIe 4.0 x16 low-profile, 1x internal PCIe 4.0 x16
- Networking: Flexible options including dual 10GbE BaseT (Intel X710-AT2) or dual 10GbE BaseT + dual 10GbE SFP+ (Intel X710-TM4)
- Power Supply: Dual 1200W redundant, 80 PLUS Titanium Level
- Cooling: 8x 4cm heavy-duty fans with optimal speed control
- Management: IPMI 2.0 with dedicated LAN, KVM, virtual media; Redfish API, SuperDoctor 5, Supermicro Update Manager, Supermicro Server Manager
- Dimensions (W x H x D): 437mm x 43mm x 754mm
- Gross Weight: 44.5 lbs (20.2 kg); Net Weight: 29.5 lbs (13.4 kg)

FAQs

Q: Can I mix NVMe, SATA, and SAS drives in the same system?
A: Yes, the SYS-610U-TNR supports hybrid storage with 4x 3.5" bays that can accommodate NVMe, SATA, and SAS drives in any combination. SAS and NVMe support require additional hardware components such as a RAID controller or NVMe add-on card.

Q: What is the maximum memory capacity supported?
A: The system supports up to 8TB of DDR4 RDIMM/LRDIMM memory or up to 12TB when combining 8TB of Intel Optane Persistent Memory with 4TB of DDR4 DRAM across 32 DIMM slots.

Q: What expansion capabilities does this server offer?
A: The SYS-610U-TNR features four PCIe 4.0 x16 slots: two full-height (10.5" length), one low-profile, and one internal slot. Ultra riser cards provide network connections and additional capabilities, and one slot can be used for a RAID controller for SAS support.

Q: What networking options are available?
A: The system offers flexible networking through Ultra riser cards, including options for dual 10GbE BaseT ports (Intel X710-AT2) or a combination of dual 10GbE BaseT and dual 10GbE SFP+ ports (Intel X710-TM4).

Q: What operating systems and hypervisors are compatible?
A: The SYS-610U-TNR is compatible with VMware ESXi, Citrix Hypervisor, Microsoft Windows Server 2019 and 2022, and is certified for Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and Oracle Linux.
