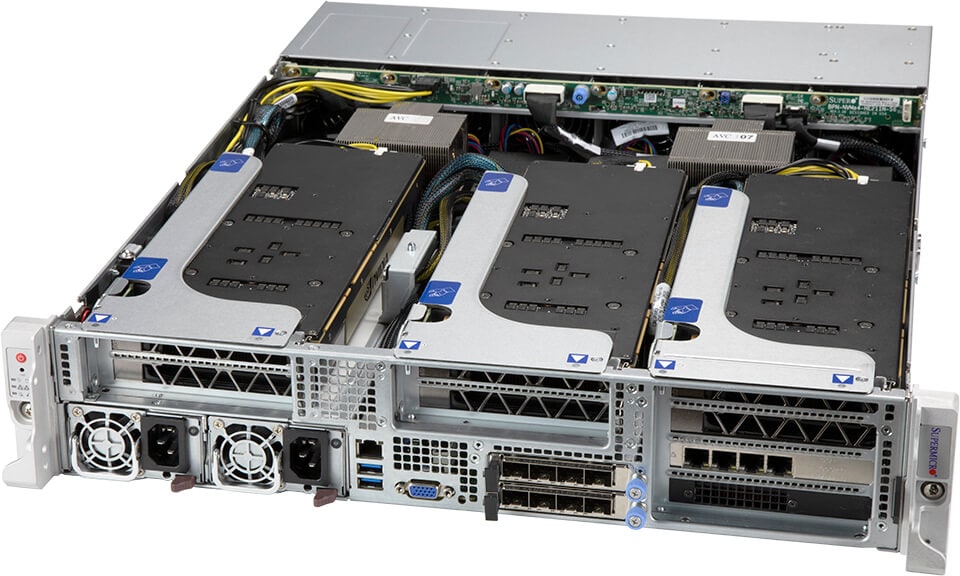

Supermicro SYS-220HE-FTNR | X12 Hyper-E 2U Dual Xeon Server, 32 DIMM, 6x 2.5" NVMe

Q: What makes this server suitable for 5G edge and telco applications?
A: The SYS-220HE-FTNR features a short-depth 2U form factor with front I/O design, NEBS Level 3 certification for telecom environments, redundant power supplies, and flexible networking with dual AIOM slots for OCP NIC 3.0 modules. It supports AI inference accelerators and GPUs for edge computing workloads while fitting into telco racks with limited depth.

Q: Can this system support GPUs or AI accelerators?
A: Yes, the system includes 3 standard PCIe 4.0 x16 slots plus an optional 4th slot, with power cables and physical space for up to 4 double-width GPUs or AI accelerators. It also supports M.2-based acceleration cards via an optional AOC-SHG3-4M2P PCIe switch card for additional NVMe or low-power AI inference modules.

Q: What storage configurations are supported?
A: The system includes 6 hot-swap 2.5" drive bays that natively support NVMe and SATA drives, or SAS drives with an optional HBA/RAID controller. Additionally, there are 2 onboard M.2 slots for boot drives or caching. The direct-attached backplane and cabled PCIe connections enable high-performance NVMe storage.

Q: What is the maximum memory capacity?
A: With 32 DIMM slots across both CPUs, the system supports up to 8TB of DDR4 ECC memory using RDIMM or LRDIMM modules at speeds up to 3200 MHz. It also supports Intel Optane Persistent Memory 200 series, allowing up to 8TB Optane or 12TB total combined memory when mixing DRAM and Optane modules.

Q: Is this server compatible with virtualization and NFV platforms?
A: Yes, the SYS-220HE-FTNR is certified for VMware ESXi, Red Hat Enterprise Linux, Oracle Linux, Citrix Hypervisor, and Microsoft Windows Server 2019. It is specifically designed for Network Function Virtualization (NFV), cloud computing, and software-defined networking workloads common in 5G and telecom infrastructure.
