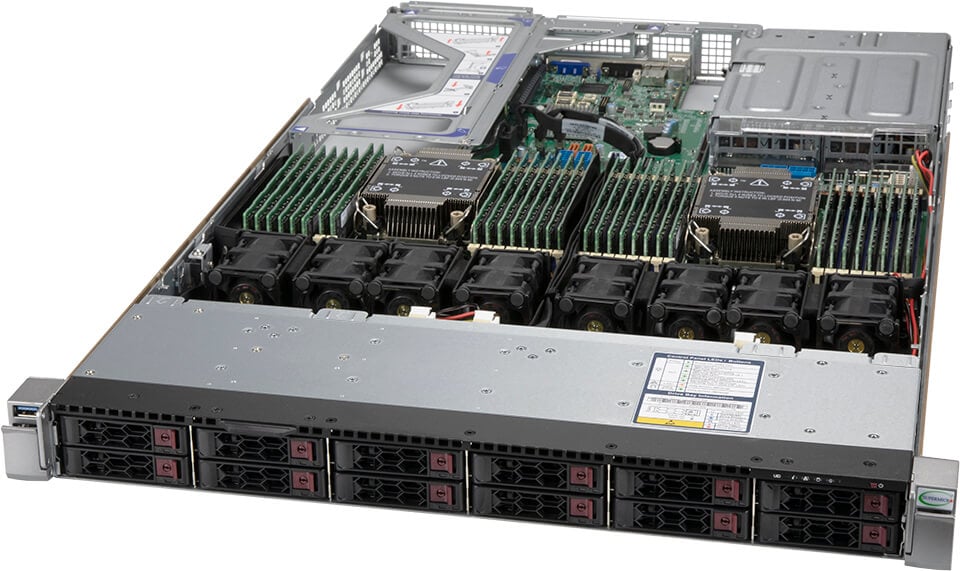

• Silver and black Supermicro SYS-120U-TNR 1U server rack with dual Xeon processors and multiple NVMe drives visible
1 1

Supermicro

Supermicro SYS-120U-TNR | X12 Ultra Dual Xeon 1U Server, 32 DDR4, 12x 2.5" NVMe

SYS-120U-TNR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SYS-120U-TNR is a high-performance 1U rack server engineered for virtualization, cloud computing, HPC, and enterprise workloads. It supports dual 3rd Gen Intel Xeon Scalable processors with up to 8TB DDR4-3200 memory across 32 DIMM slots, and features 12 hot-swap 2.5-inch hybrid drive bays supporting NVMe, SATA, and SAS storage with flexible PCIe 4.0 expansion. The system includes redundant 1200W 80 PLUS Titanium power supplies and dual 10GbE networking, delivering enterprise-grade reliability and performance in a compact form factor.

Features

Dual 3rd Gen Intel Xeon Scalable processor support with Intel UltraPath Interconnect for low-latency CPU-to-CPU communication
- Intel C621A chipset with PCIe 4.0 support across all expansion slots and storage
- Hybrid storage backplane supporting 12x PCIe 4.0 NVMe, SATA, and SAS drives in any combination
- Hot-swap 2.5-inch drive carriers with tool-less installation for rapid drive service
- 128 PCIe 4.0 lanes total (64 per CPU) supporting high-bandwidth expansion and storage
- Intel Optane Persistent Memory 200 series support for large-scale in-memory computing
- IPMI 2.0 out-of-band management with KVM-over-IP, remote virtual media, and Redfish API
- SuperDoctor 5, Supermicro Update Manager (SUM), and Supermicro Server Manager (SSM) for centralized monitoring
- Redundant 1200W 80 PLUS Titanium power supplies for high efficiency and reliability
- Advanced thermal management with 8 heavy-duty fans and optimal speed control
- Compatible with VMware ESXi, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, and SAP HANA 2.0
- Compact 1U form factor with 29.1-inch depth optimized for standard datacenter racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rackmount, 17.2" x 1.7" x 29.1" (437mm x 43mm x 739mm)
- Processors: Dual Socket P+ (LGA-4189) for 3rd Gen Intel Xeon Scalable processors (Ice Lake)
- Chipset: Intel C621A
- Memory: 32 DIMM slots, up to 8TB DDR4-3200/2933/2666 ECC RDIMM/LRDIMM; supports Intel Optane Persistent Memory 200 series (up to 12TB total with DRAM)
- Storage: 12x 2.5-inch hot-swap hybrid drive bays supporting NVMe/SATA/SAS (SAS requires optional controller)
- Expansion: 4x PCIe 4.0 x16 slots (2x full-height 10.5"L, 1x low-profile, 1x internal)
- Networking: Dual 10GbE Base-T RJ45 ports (configurable via optional LOM riser)
- Power Supply: Dual 1200W redundant 80 PLUS Titanium power supplies
- Management: IPMI 2.0 with dedicated RJ45 port, KVM-over-IP, virtual media, SuperDoctor 5, Redfish API
- Cooling: 8x 40mm heavy-duty fans with optimal speed control

FAQs

Q: What processors does the SYS-120U-TNR support?
A: The SYS-120U-TNR supports dual 3rd Gen Intel Xeon Scalable processors (Ice Lake) in LGA-4189 sockets. These processors offer up to 40 cores and 80 threads per CPU, with support for PCIe 4.0, DDR4-3200 memory, and Intel Optane Persistent Memory 200 series.

Q: Can I mix different drive types in the 12 drive bays?
A: Yes, the SYS-120U-TNR features a hybrid backplane that allows you to mix and match NVMe, SATA, and SAS drives in any of the 12 hot-swap 2.5-inch bays without speed limitations. SATA and NVMe are supported natively, while SAS requires an optional HBA or RAID controller card.

Q: What is the maximum memory capacity?
A: The system supports up to 8TB of DDR4 DRAM alone, or up to 12TB total when combining 4TB DDR4 with 8TB Intel Optane Persistent Memory 200 series modules across the 32 DIMM slots. Memory speeds supported are DDR4-3200, 2933, and 2666 ECC RDIMM or LRDIMM.

Q: What networking options are available?
A: The SYS-120U-TNR includes dual 10GbE Base-T RJ45 ports as standard. The system uses a customizable Ultra riser with LOM (LAN on Motherboard) architecture, allowing you to configure alternative networking options such as dual 10GbE SFP+ or other interface types via optional riser cards.

Q: What workloads is this server optimized for?
A: The SYS-120U-TNR is optimized for virtualization, high-performance computing (HPC), cloud computing, software-defined storage, 5G/telco infrastructure, and high-end enterprise applications. Its dual-socket architecture, high memory capacity, and hybrid storage flexibility make it ideal for demanding compute and I/O-intensive workloads.
