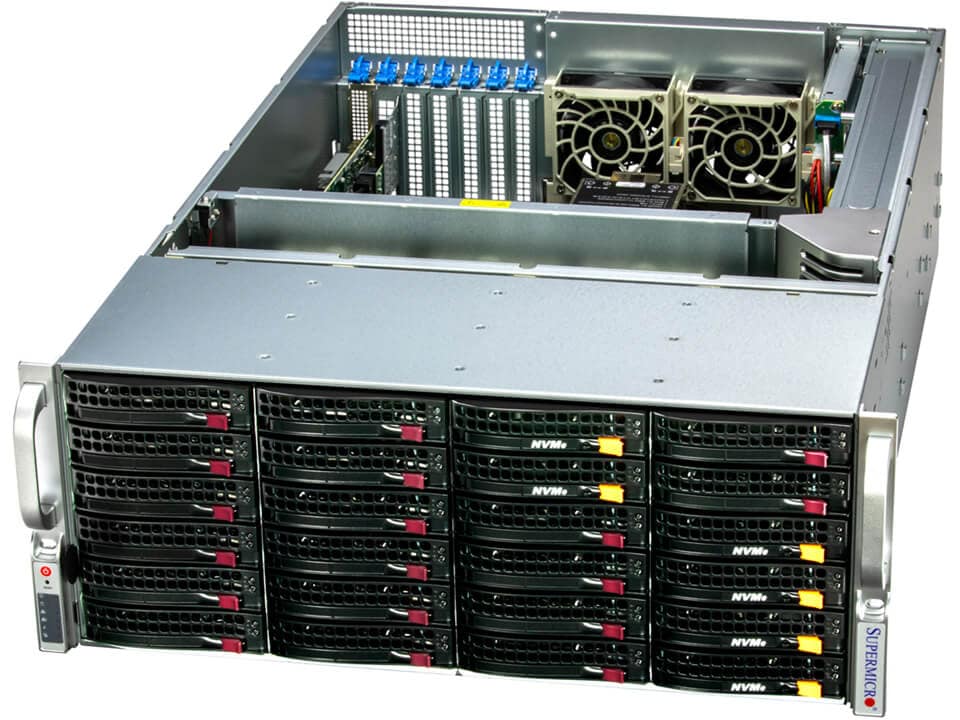

• Silver-framed supermicro ssg-641e-e1cr24l 4u storage server with multiple black nvme drives and internal cooling fans
1 1

Supermicro

Supermicro SSG-641E-E1CR24L | 4U Storage Server, Dual Xeon Scalable, 24x 3.5" Hot-Swap

SSG-641E-E1CR24L

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SSG-641E-E1CR24L is a high-capacity 4U storage server engineered for enterprise data centers, HPC environments, and iSCSI SAN deployments. Supporting dual 5th and 4th Gen Intel Xeon Scalable processors and up to 4TB of DDR5-5600 memory across 16 DIMM slots, it delivers exceptional compute and memory bandwidth for database processing and storage-intensive workloads. With 24 hot-swap 3.5-inch SAS/SATA drive bays, optional NVMe hybrid support, Broadcom 3808 HBA controller, dual 10GbE onboard networking, and redundant 1200W Titanium-level power supplies, this platform combines massive storage density with enterprise-grade reliability and performance.

Features

Dual 5th/4th Gen Intel Xeon Scalable processor support with LGA-4677 socket
- Up to 4TB DDR5-5600 memory capacity for high-performance database and HPC workloads
- 24x hot-swap 3.5-inch SAS3/SATA3 drive bays with optional NVMe hybrid support (6 bays)
- Broadcom 3808 SAS 12Gb/s HBA controller with hardware RAID
- PCIe 5.0 expansion slots for next-generation storage and network adapters
- Dual 10GbE onboard networking (Broadcom BCM57416) for high-speed storage traffic
- IPMI 2.0 remote management with KVM over LAN and virtual media support
- External JBOD expansion ports for scalable storage capacity
- Redundant 1200W 80 PLUS Titanium power supplies (96% efficiency)
- Hot-swap counter-rotating cooling fans for optimized airflow and serviceability
- 2x rear 2.5-inch SATA slots and 2x M.2 NVMe slots for boot drives and caching
- Enterprise-ready for iSCSI SAN, HPC, data center, and corporate database applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 4U rackmount storage server
- Processor: Dual Socket E (LGA-4677) supporting 5th/4th Gen Intel Xeon Scalable processors, up to 270W TDP (air-cooled)
- Chipset: Intel C741
- Memory: Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 16 DIMM slots
- Storage: 24x 3.5-inch/2.5-inch hot-swap SAS3/SATA3 drive bays (6 optional NVMe hybrid), 2x rear 2.5-inch SATA slots, 2x M.2 NVMe slots (2280/22110)
- Storage Controller: Broadcom 3808 SAS 12Gb/s HBA controller with RAID support; SATA3 (6Gbps) onboard controller with RAID
- Expansion: PCIe 5.0 support (3x PCIe 5.0 x16 slots, 1x PCIe 5.0 x8 slot)
- Network: 2x 10GbE RJ45 ports (Broadcom BCM57416), 1x 1GbE dedicated IPMI LAN port
- Remote Management: IPMI 2.0, KVM over LAN, Media over LAN
- Cooling: 5x 8cm hot-swap counter-rotating redundant PWM cooling fans
- Power Supply: Redundant 1200W 80 PLUS Titanium Level (96% efficiency)
- Additional Features: External JBOD expansion ports, rackmount rail kit included

FAQs

Q: What processor generations does the SSG-641E-E1CR24L support?
A: The SSG-641E-E1CR24L supports dual 5th and 4th Generation Intel Xeon Scalable processors in LGA-4677 socket format, with TDP support up to 270W using air cooling. This provides a broad range of CPU options for compute-intensive storage and database workloads.

Q: Can this server support NVMe drives in addition to SAS/SATA?
A: Yes, the system supports hybrid storage configurations with up to 6 of the 24 front drive bays optionally configured for NVMe drives when equipped with the appropriate backplane components. Additionally, there are 2x M.2 NVMe slots (2280/22110 form factors) on the motherboard for boot drives or caching.

Q: What storage controller and RAID capabilities are included?
A: The server includes a Broadcom 3808 SAS 12Gb/s HBA controller card that supports hardware RAID configurations. The motherboard also features onboard SATA3 (6Gbps) controller with RAID support. This provides flexible options for both SAS and SATA drive management with hardware-accelerated RAID.

Q: Is this server suitable for iSCSI SAN and JBOD expansion deployments?
A: Absolutely. The SSG-641E-E1CR24L is designed specifically for iSCSI SAN environments, featuring dual 10GbE networking for high-performance storage traffic, Broadcom HBA controller support, and external JBOD expansion ports to scale storage capacity beyond the 24 internal drive bays. This makes it ideal for enterprise storage clusters and data center consolidation.

Q: What memory speed is supported with DDR5 on this platform?
A: The server supports DDR5-5600MT/s when using 1 DIMM per channel (1DPC) configuration across the 16 DIMM slots, allowing up to 4TB of total system memory using 3DS ECC RDIMM modules. This high-bandwidth memory subsystem is optimized for database processing and storage-intensive applications.
