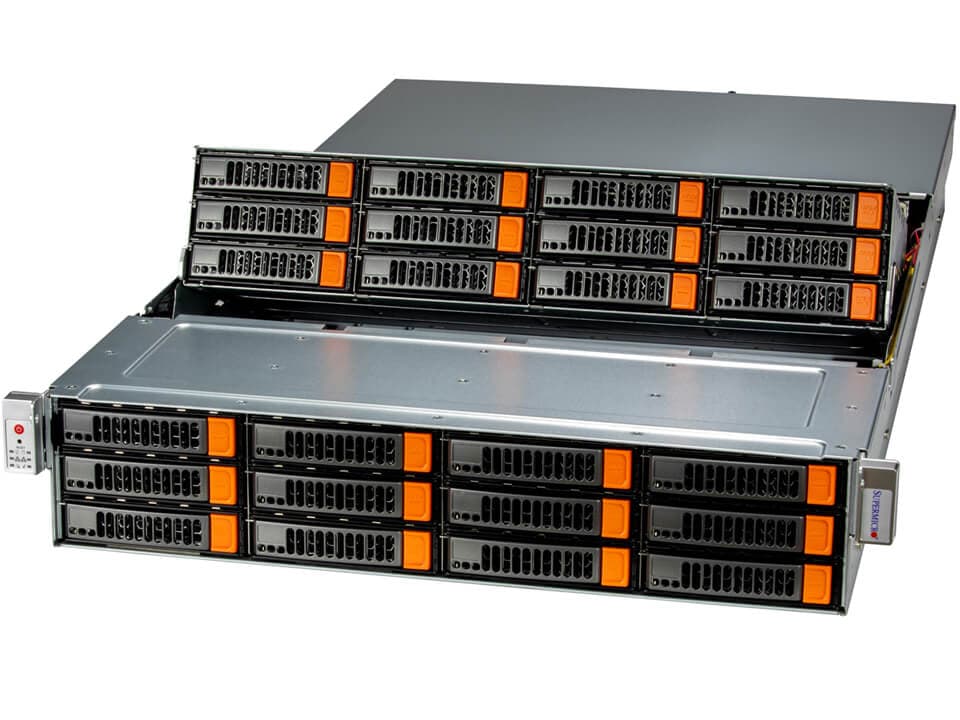

• Silver supermicro ssg-620p-e1cr24l 2u rackmount storage server with multiple black and orange drive bays and dual xeon processors
1 1

Supermicro

Supermicro SSG-620P-E1CR24L | 2U Rackmount Storage Server, Dual 3rd Gen Xeon, 4TB

SSG-620P-E1CR24L

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro SSG-620P-E1CR24L is a high-capacity 2U rackmount storage server engineered for enterprise data centers, HPC environments, and iSCSI SAN deployments. Powered by dual 3rd Gen Intel Xeon Scalable processors supporting up to 72 cores per node and up to 4TB of DDR4-3200 ECC memory across 16 DIMM slots, this platform delivers exceptional processing power for demanding storage workloads. With 24 hot-swap 3.5-inch SAS3/SATA3 drive bays, 4 rear SATA/NVMe slots, 2 M.2 NVMe/SATA slots, Broadcom 3808 HBA controller, PCIe 4.0 expansion, and redundant 1600W Titanium-level power supplies, it provides scalable, high-performance storage infrastructure for corporate databases, backup systems, and appliance-optimized storage building blocks.

Features

Dual 3rd Gen Intel Xeon Scalable processor support with up to 72 cores per node
- Up to 4TB DDR4-3200 ECC registered or load-reduced memory capacity
- 24 front hot-swap 3.5-inch SAS3/SATA3 drive bays for massive storage capacity
- 4 rear SATA/NVMe slots plus 2 M.2 NVMe/SATA slots for boot and caching
- Broadcom 3808 HBA controller for high-speed storage access in HBA mode
- PCIe 4.0 architecture with 3x x16 slots plus dedicated AIOM slot
- Intel VROC support for NVMe RAID without additional hardware controllers
- Dual 1600W 80 PLUS Titanium redundant power supplies for efficiency and uptime
- IPMI 2.0 with KVM over LAN and Media over LAN for remote management
- Hot-swap counter-rotating redundant cooling fans for optimal airflow
- 2x 10GbE Base-T network ports with flexible AIOM expansion
- Front and top-loading drive access for easy serviceability
- 2U rackmount design optimized for dense storage deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U Rackmount (17.2" x 3.5" x 34")
- Processor: Dual socket 3rd Gen Intel Xeon Scalable (LGA-4189), up to 72 cores per node
- Chipset: Intel C621A
- Memory: Up to 4TB DDR4-3200 ECC RDIMM/LRDIMM in 16 DIMM slots
- Front Storage: 24x 3.5" hot-swap SAS3/SATA3 drive bays
- Rear Storage: 4x SATA/NVMe slots, 2x M.2 NVMe/SATA (2280 form factor)
- Storage Controller: Broadcom 3808 HBA controller
- Expansion: 3x PCIe 4.0 x16 slots, 1x dedicated PCIe 4.0 AIOM slot
- Network: 2x 10GbE Base-T, 1x dedicated IPMI LAN port
- Management: IPMI 2.0, KVM over LAN, Media over LAN
- Cooling: 5x 8cm hot-swap counter-rotate redundant PWM fans
- Power Supply: Dual 1600W redundant 80 PLUS Titanium (96% efficiency)
- Additional: 2x SuperDOM ports, Intel VROC support

FAQs

Q: What processors are compatible with the SSG-620P-E1CR24L?
A: This server supports dual 3rd Gen Intel Xeon Scalable processors in LGA-4189 sockets, offering configurations up to 72 cores per node. The Intel C621A chipset enables enterprise-grade features including advanced RAS capabilities and PCIe 4.0 connectivity.

Q: Can I mix SAS and SATA drives in the front bays?
A: Yes, the 24 front hot-swap 3.5-inch bays support both SAS3 and SATA3 drives simultaneously. The onboard Broadcom 3808 HBA controller operates in HBA mode, allowing flexible drive configurations for different performance and capacity requirements across the same chassis.

Q: What are the rear storage expansion options?
A: The SSG-620P-E1CR24L includes 4 rear SATA/NVMe slots and 2 M.2 slots (2280 form factor) supporting either NVMe or SATA drives. This allows for OS boot drives, caching, or additional high-speed storage independent of the front 24-bay array.

Q: Does this server support NVMe RAID configurations?
A: Yes, the system supports Intel Virtual RAID on CPU (Intel VROC) for creating RAID arrays directly from NVMe SSDs connected to the processor PCIe lanes, bypassing the need for a traditional hardware RAID HBA and maximizing NVMe performance.

Q: What networking options are available?
A: The server includes integrated 2x 10GbE Base-T ports for high-speed network connectivity and a dedicated PCIe 4.0 AIOM slot for flexible networking expansion with additional 10GbE, 25GbE, or other network interface cards as needed for your deployment.
