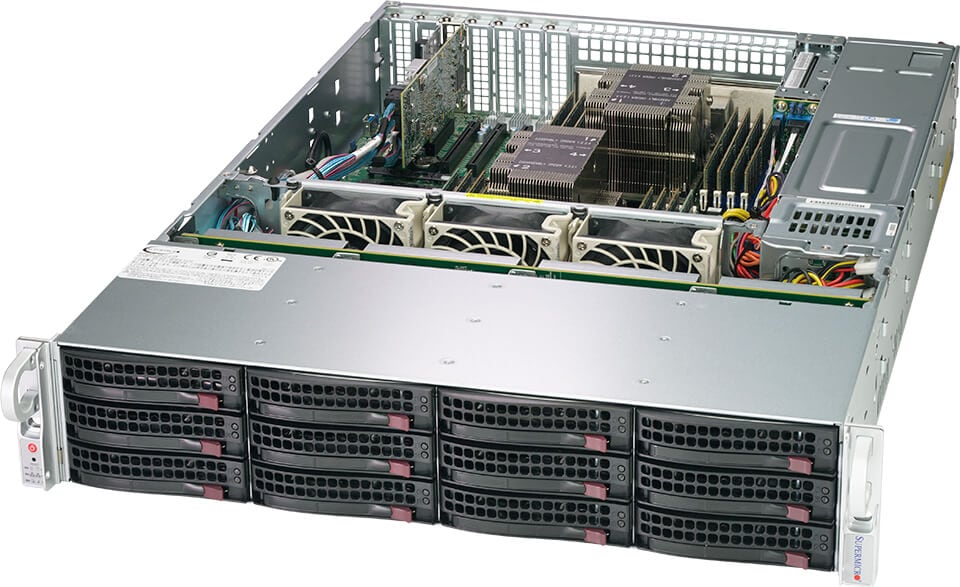

Supermicro SSG-620P-ACR12L | 2U Dual Xeon Scalable Storage Server, 12x 3.5" Bays

Q: What is the maximum memory capacity?
A: The SSG-620P-ACR12L supports up to 4TB of DDR4-3200 ECC memory across 16 DIMM slots using RDIMM or LRDIMM modules. Additionally, there are 2 dedicated slots for Intel Optane Persistent Memory to further expand memory capabilities for memory-intensive workloads.

Q: Can I mix SAS, SATA, and NVMe drives in this system?
A: Yes, the system features hybrid drive bay support. The 12 front 3.5-inch bays support both SAS3 and SATA3 drives, with 4 of those bays offering NVMe hybrid capability. There are also 2 rear 2.5-inch SATA slots and 1 onboard M.2 NVMe slot for additional storage flexibility.

Q: What types of applications is this server best suited for?
A: This storage server is ideal for enterprise applications including iSCSI SAN deployments, high-performance computing, data centers, database processing and storage, corporate databases, and virtualization environments requiring high-capacity storage with flexible connectivity options.

Q: Does this server support PCIe 4.0?
A: Yes, the SSG-620P-ACR12L supports PCIe 4.0, which provides double the bandwidth of PCIe 3.0. This enables faster data transfer rates for NVMe storage devices, high-performance network adapters, and other expansion cards that can take advantage of the increased throughput.

Q: What remote management features are included?
A: The server includes a dedicated IPMI LAN port for out-of-band management. It comes with Supermicro's management suite including SuperDoctor 5 for monitoring and diagnostics, Supermicro Thin-Agent Service, and Redfish API support for integration with data center management platforms.
