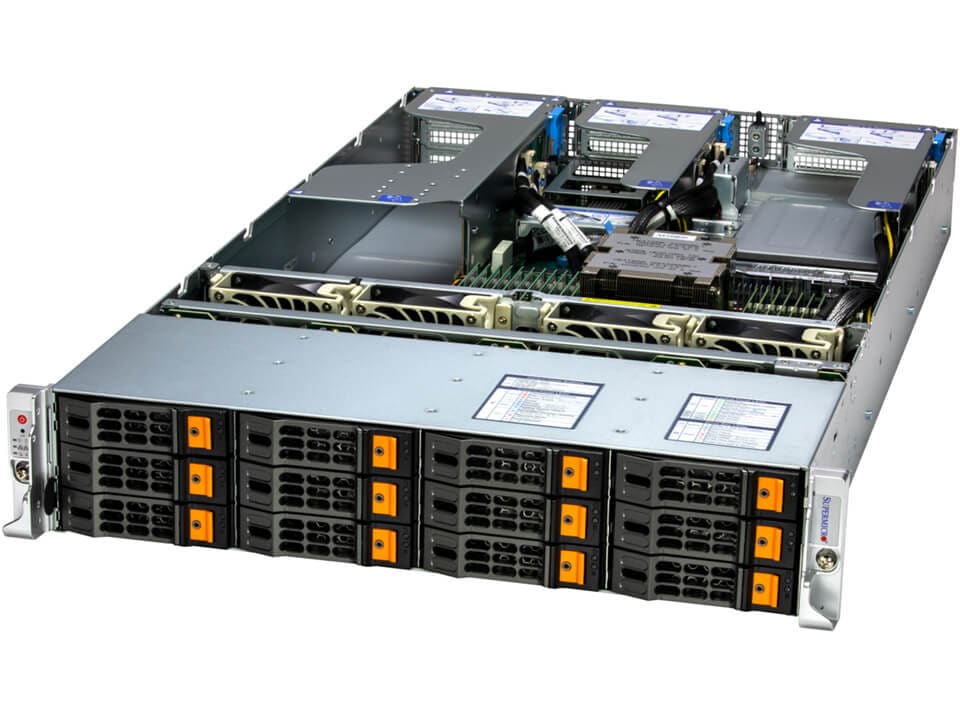

• Silver-colored Supermicro AS-2015HS-TNR 2U rack server with black and orange drive bays and modular high-density storage design
1 1

Supermicro

Supermicro AS-2015HS-TNR | H13 Hyper 2U Rack Server, AMD EPYC 9004/9005, 6TB DDR5

AS-2015HS-TNR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro AS-2015HS-TNR is a 2U rackmount server built on the H13SSH motherboard, supporting single AMD EPYC 9004 and 9005 series processors with up to 128 cores. Designed for virtualization, AI inference, cloud computing, and software-defined storage, it delivers exceptional scalability with up to 6TB DDR5 memory across 24 DIMM slots and 12 hot-swap 3.5-inch drive bays supporting NVMe, SATA, and SAS. Flexible PCIe 5.0 expansion supports up to 8 slots and includes OCP 3.0 AIOM networking, dual redundant 1200W Titanium power supplies, and comprehensive IPMI 2.0 remote management.

Features

Single socket SP5 supporting AMD EPYC 9004/9005 series processors with up to 128 cores and 256 threads
- System-on-Chip architecture with integrated I/O controller
- 24 DDR5 ECC RDIMM slots supporting up to 6TB memory capacity with 2DPC configuration
- 12 hot-swap 3.5-inch or 2.5-inch drive bays for NVMe, SATA, and SAS drives
- 2 onboard M.2 NVMe slots (PCIe 3.0 x4 and x2) for boot drives
- Flexible PCIe 5.0 expansion with up to 8 configurable slots (x16 or x8)
- 1 AIOM slot supporting OCP NIC 3.0 for flexible networking options
- Support for up to 4 double-width GPU accelerators for AI and ML workloads
- Dual redundant 1200W Titanium Level (96% efficient) power supplies with optional 1300W DC
- IPMI 2.0 with dedicated management LAN port and Aspeed AST2600 BMC
- KVM-over-IP for remote graphical console access
- Redfish API support for standards-based remote management
- SuperDoctor 5 and Supermicro Server Manager for comprehensive system health monitoring
- Hardware health monitoring including CPU, memory, and system temperature sensors
- Voltage monitoring for all major power rails
- ACPI 6.4 power management with configurable AC power loss recovery
- TPM header for enhanced security
- Hot-swap drive bays with tool-less design for easy maintenance
- Support for UEFI 2.8 and legacy BIOS boot modes
- Optimized thermal design for high-density server environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount
- Processor: Single socket SP5 for AMD EPYC 9004/9005 series, up to 128 cores, 400W TDP
- Memory: 24x DDR5 RDIMM slots, up to 6TB capacity, DDR5-4800/5200/6000 MT/s
- Storage: 12x hot-swap 3.5-inch or 2.5-inch drive bays (NVMe/SATA/SAS), 2x onboard M.2 NVMe slots (PCIe 3.0 x4 and x2)
- Expansion: Up to 8x PCIe 5.0 slots (configurable as x16 or x8), 1x AIOM slot (OCP NIC 3.0)
- Management: IPMI 2.0 with dedicated LAN, AST2600 BMC, KVM-over-IP, Redfish API
- Power Supply: Dual redundant 1200W Titanium Level (96% efficient), optional 1300W DC
- Networking: 1x dedicated IPMI LAN port, AIOM slot for OCP 3.0 network adapters
- Motherboard: Supermicro H13SSH (System-on-Chip design)
- Chassis: CSE-HS829-R1K24P-A
- Dimensions: 3.5" H x 17.2" W x 31.6" D (88.9mm x 437mm x 803mm)
- Weight: 39 lbs (17.7 kg) net, 69 lbs (31.3 kg) gross
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Management Software: SuperDoctor 5, Supermicro Update Manager, Server Manager, Super Diagnostics

FAQs

Q: What processors are compatible with the AS-2015HS-TNR?
A: The AS-2015HS-TNR supports single AMD EPYC 9004 and 9005 series processors in SP5 socket with up to 128 cores and 256 threads. AMD EPYC 9005 series support requires motherboard revision 2.x. The system supports processors with TDP up to 400W.

Q: How much memory can this server support?
A: The system supports up to 6TB of DDR5 ECC RDIMM memory across 24 DIMM slots in 2DPC configuration. Memory speeds vary by processor: AMD EPYC 9004 supports up to DDR5-4800 at 2DPC, while EPYC 9005 supports up to DDR5-4400 at 2DPC and DDR5-5200 at 1DPC. Modules must be installed in groups of 12 for optimal performance.

Q: What storage configurations are supported?
A: The AS-2015HS-TNR includes 12 hot-swap 3.5-inch or 2.5-inch drive bays that support NVMe, SATA, and SAS drives (additional controllers may be required). It also features 2 onboard M.2 NVMe slots for boot drives: one PCIe 3.0 x4 and one PCIe 3.0 x2, supporting 80mm and 110mm form factors.

Q: What PCIe expansion options does this server offer?
A: The server offers flexible PCIe 5.0 configurations with up to 8 slots total, including options for 4x PCIe 5.0 x16, 8x PCIe 5.0 x8, or mixed configurations. All slots support PCIe 5.0 standard. Additionally, there is 1 AIOM slot supporting OCP NIC 3.0 for flexible networking without consuming PCIe slots.

Q: What remote management capabilities are included?
A: The AS-2015HS-TNR includes comprehensive out-of-band management via IPMI 2.0 with dedicated LAN port, Aspeed AST2600 BMC, and KVM-over-IP functionality. Administrators can use SuperDoctor 5, Redfish API, Supermicro Server Manager, and Supermicro Update Manager for local and remote system monitoring, configuration, and firmware updates.
