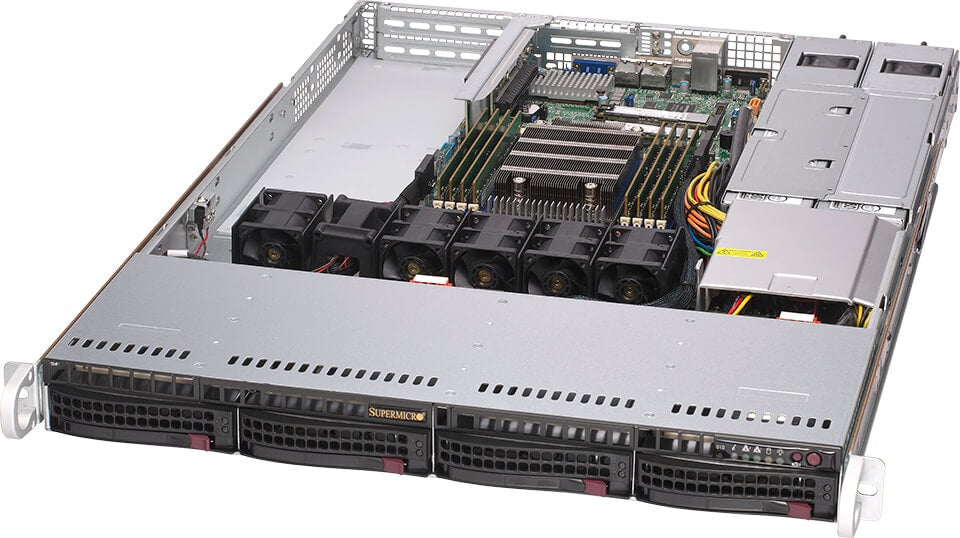

• Silver and black supermicro as-1014s-wtrt 1u rackmount server with multiple fans ram modules and drive bays
1 1

Supermicro

Supermicro AS-1014S-WTRT | 1U Rackmount Server, AMD EPYC 7002/7003, 8 DIMM 2TB

AS-1014S-WTRT

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro AS-1014S-WTRT is a versatile 1U single-socket rackmount server designed for database processing, storage, data center applications, and firewall deployments. Supporting AMD EPYC 7002 and 7003 series processors up to 280W TDP, it delivers up to 64 cores of processing power with 8 DDR4 DIMM slots supporting up to 2TB of ECC memory at 3200MHz. The system features dual 10GBase-T networking, 4 hot-swap 3.5" SATA bays with optional NVMe expansion, 3 PCIe 4.0 slots, and redundant 500W Platinum-rated power supplies for reliable enterprise performance.

Features

Single socket SP3 for AMD EPYC 7002/7003 series processors with up to 64 cores and 280W TDP support
- 8 DDR4 DIMM slots supporting up to 2TB ECC DDR4-3200MHz RDIMM/LRDIMM with 3DS technology
- PCIe 4.0 expansion with 2 full-height full-length slots and 1 low-profile slot for GPUs, NICs, and storage controllers
- Dual 10GBase-T LAN ports via Broadcom BCM57416 controller for high-speed networking
- 4 hot-swap 3.5" SATA3 drive bays with tool-less drive trays for easy maintenance
- Optional NVMe expansion supporting up to 4 U.2 NVMe drives via PCIe 3.0 for hybrid storage configurations
- Integrated IPMI 2.0 with KVM and dedicated management LAN for remote server management
- Software Out-of-Band License included for OOB BIOS management capabilities
- 2 SuperDOM (Disk on Module) ports for boot drives or OS installation without using drive bays
- Redundant 500W Platinum-level power supplies with >91% efficiency and PMBus support
- Wide I/O (WIO) design optimized for flexible expansion and connectivity
- Supports CPU TDP up to 280W with optimized thermal design for high-performance processors
- 1U rackmount form factor suitable for data center, storage, and firewall applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Processor: Single socket SP3 for AMD EPYC 7002/7003 series, up to 64 cores, up to 280W TDP
- Memory: 8x DDR4 DIMM slots, up to 2TB ECC DDR4-3200MHz RDIMM/LRDIMM, 3DS support
- Storage: 4x hot-swap 3.5" SATA3 bays, optional 4x U.2 NVMe (PCIe 3.0) via additional kit, 2x SuperDOM ports
- Network: Dual 10GBase-T LAN ports via Broadcom BCM57416 controller
- Expansion: 2x PCIe 4.0 x16 FHFL slots, 1x PCIe 4.0 x16 low-profile slot
- Management: IPMI 2.0 with integrated KVM and dedicated LAN, Software Out-of-Band License included
- I/O: 1x VGA, 5x USB 3.0 (4 rear, 1 internal Type A)
- Power: Redundant 500W Platinum-level power supplies (>91% efficiency) with PMBus
- Form Factor: 1U rackmount chassis
- Certifications: 80 PLUS Platinum certified PSU

FAQs

Q: Does the AS-1014S-WTRT support both AMD EPYC 7002 and 7003 series processors?
A: Yes, the AS-1014S-WTRT supports both AMD EPYC 7002 (Rome) and 7003 (Milan) series processors in the SP3 socket. For AMD EPYC 7003 series processors, BIOS version 2.0 or newer is required. For processors with AMD 3D V-Cache technology, BIOS version 2.3 or newer is required.

Q: Can I add NVMe storage to this server?
A: Yes, the server includes 4 SATA3 bays by default and supports optional NVMe expansion. With an additional kit, you can configure up to 4 U.2 NVMe drives using PCIe 3.0 connectivity, allowing hybrid SATA/NVMe storage configurations for performance-critical applications.

Q: What type of networking does this server include?
A: The AS-1014S-WTRT features dual 10GBase-T LAN ports via an onboard Broadcom BCM57416 controller, providing high-speed 10 Gigabit Ethernet connectivity over standard copper cabling. Additional network cards can be installed in the three PCIe 4.0 expansion slots.

Q: What expansion options are available?
A: The server offers 3 PCIe 4.0 x16 slots via an included riser card: 2 full-height full-length (FHFL) slots and 1 low-profile (LP) slot. This provides flexibility for adding GPU accelerators, high-speed network adapters, storage controllers, or other expansion cards.

Q: What is the maximum memory capacity?
A: The AS-1014S-WTRT supports up to 2TB of DDR4 ECC memory using 8 DIMM slots with 3DS RDIMM or LRDIMM modules at speeds up to 3200MHz. This high memory capacity makes it suitable for memory-intensive database and virtualization workloads.
