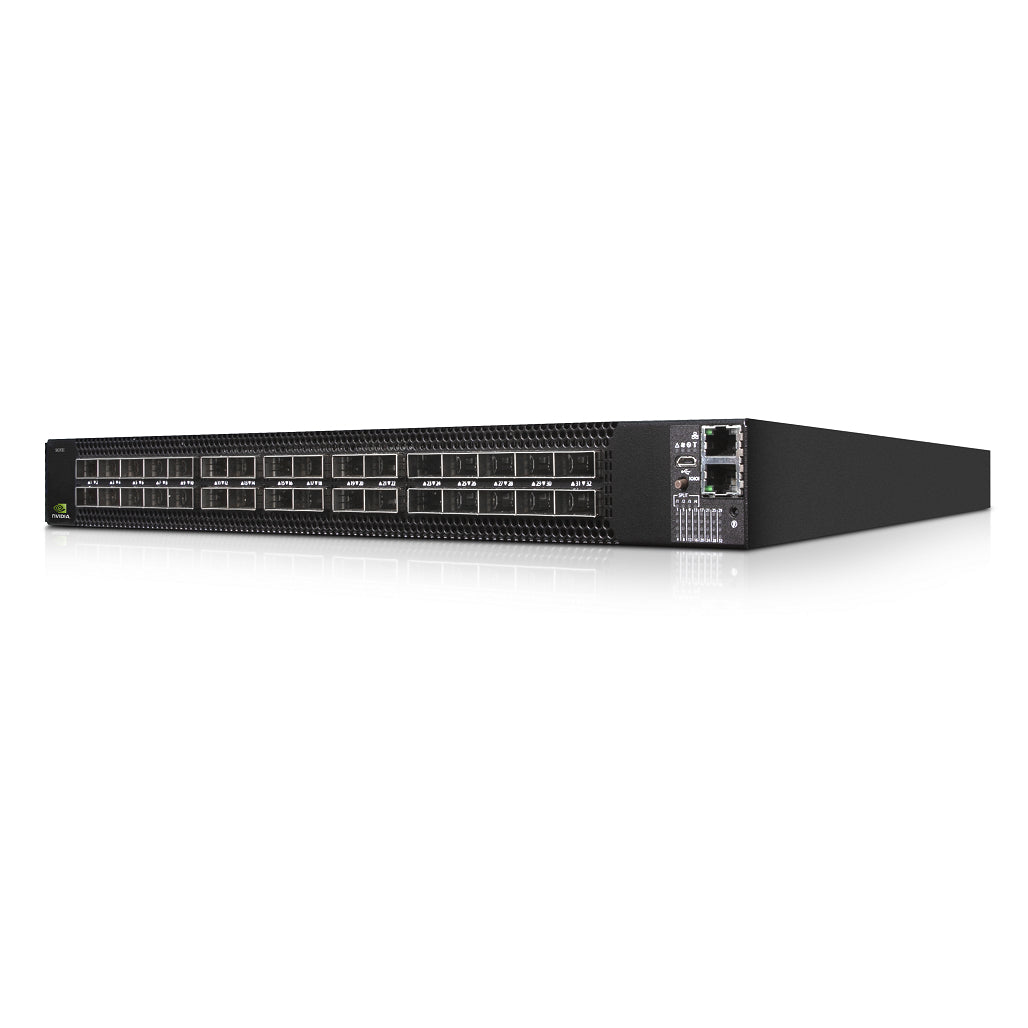

• NVIDIA MSN3700-CS2FC 32-port 100G QSFP28 switch with sleek black design
1 1

NVIDIA

NVIDIA MSN3700-CS2FC | Spectrum-2 32-Port 100G Switch, 6.4Tbps, Cumulus Linux

MSN3700-CS2FC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA MSN3700-CS2FC is a high-performance 1U data center switch built on the Spectrum-2 ASIC, delivering 32 ports of 100GbE QSFP28 connectivity with full port breakout capability to 128x 10/25GbE. With 6.4 Tbps switching capacity, 4.76 Bpps forwarding rate, and sub-microsecond latency, it excels in spine and high-density leaf deployments for cloud-scale networks. Ships with Cumulus Linux preinstalled and features power-to-connector (P2C) airflow, dual AC power supplies, and an x86 management CPU.

Features

NVIDIA Spectrum-2 ASIC for wire-speed Layer 2 and Layer 3 switching
- Full port breakout: each QSFP28 port splits to 4x25GbE or 4x10GbE (up to 128 ports total)
- Support for 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE speeds
- Advanced routing protocols: BGP, OSPFv2, VRRP, static IPv4/IPv6
- Data center bridging: flow control, priority flow control, ECN
- Layer 2 features: RSTP, MSTP, IGMP snooping, port mirroring, LACP
- sFlow traffic monitoring and analysis
- Access control lists (ACLs) and QoS
- DCBX (Data Center Bridging Exchange) support
- Scale: up to 512K entries dynamically shared across MAC, ARP, IPv4/IPv6 routes, ACLs, ECMP, and tunnels
- Cumulus Linux for automation with Ansible, Puppet, Chef, and Python
- Dual hot-swappable AC power supplies for redundancy
- x86 CPU with PCIe Gen 3.0 x4 expansion
- IPv6 ready with full dual-stack support
- Load balancing and ECMP for optimal traffic distribution

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

32x QSFP28 ports supporting 100GbE, 40GbE, with 4x25GbE or 4x10GbE breakout per port
- Switching capacity: 6.4 Tbps
- Forwarding rate: 4.76 billion packets per second (Bpps)
- Latency: 400-425 nanoseconds port-to-port
- Packet buffer: 42 MB shared
- Layer 3 managed with BGP, OSPF, VRRP, static IPv4/IPv6 routing
- Management: CLI, SNMP v1/v2/v3, HTTP, HTTPS, Telnet, Syslog
- Operating system: Cumulus Linux (preinstalled)
- CPU: Intel x86 dual-core 2.20 GHz
- Memory: 8 GB DDR4 RAM, 32 GB SSD
- Power: Dual AC 100-264V (50/60 Hz), typical 242W consumption
- Airflow: P2C (power-to-connector, back-to-front)
- Form factor: 1U rack-mountable, 19-inch
- Dimensions: 1.72" H x 16.84" W x 22" D
- Weight: 30.86 lbs
- Operating temperature: 0°C to 40°C
- Jumbo frame support: 9216 bytes

FAQs

Q: Can this switch be used as a leaf switch in addition to spine?
A: Yes, the MSN3700-CS2FC is designed for both spine and high-density leaf deployments. Each QSFP28 port supports breakout to 4x25GbE or 4x10GbE, enabling up to 128 logical ports for high-density server aggregation.

Q: What is P2C airflow and why does it matter?
A: P2C (power-to-connector) airflow means air flows from the back (power side) to the front (connector side). This is critical for rack cooling design and must match your data center's hot/cold aisle architecture for proper thermal management.

Q: What network operating system does this switch run?
A: This model ships with Cumulus Linux preinstalled, an open network operating system designed for automation, programmability, and web-scale data center operations using Linux tools and workflows.

Q: What is the difference between the MSN3700-CS2FC and other MSN3700 variants?
A: The MSN3700-CS2FC variant includes Cumulus Linux (indicated by the C suffix) and P2C airflow (F). Other variants may use ONIE or Onyx OS, C2P reverse airflow (R), or secured-boot configurations depending on the suffix.

Q: Can I use this switch for 40GbE connectivity?
A: Yes, all 32 QSFP28 ports support both 100GbE and 40GbE operation, providing backward compatibility with 40GbE infrastructure while offering a migration path to 100GbE.
