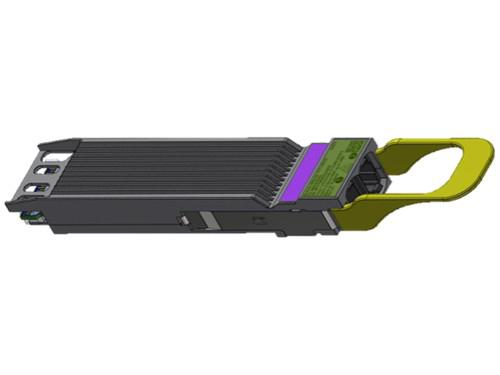

NVIDIA MMS4X00-NS-FLT | OSFP | 2xNDR 400G (800G agg) | InfiniBand NDR | 1310nm | 100m SMF | 2x MPO-12 APC | flat-top

NVIDIA MMS4X00-NS-FLT | OSFP | 2xNDR 400G (800G agg) | InfiniBand NDR | 1310nm | 100m SMF | 2x MPO-12 APC | flat-top

SKU:MMS4X00-NS-FLT

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

Twin-port OSFP optical module delivering an aggregate 800G via 2x 400G NDR lanes for InfiniBand environments. 1310nm parallel SMF optics with MPO-12 APC connectors provide low-latency, short-reach data center interconnects up to 100m. Flat-top OSFP design for hosts that require a low-profile heat interface.

Features

- Dual 400G NDR channels for 800G aggregate capacity
- Low-profile flat-top OSFP for tight thermal envelopes
- 1310nm SMF parallel optics optimized for short-reach fabric links
- APC MPO-12 interfaces reduce back-reflection
- Independent channel operation for flexible deployment
- Engineered for HPC/AI scale-out InfiniBand fabrics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this module compatible with OSFP NDR switch and adapter ports?
A: Yes, it is designed for hosts and switches with OSFP cages supporting InfiniBand NDR 400G per port.

Q: Does it require APC-terminated trunk cables?
A: Yes, the MPO interface is APC-polished; use MPO-12 APC SMF cabling.

Q: Can I use only one of the two 400G channels?
A: Yes, each 400G NDR channel operates independently; you can light one or both.

Q: What applications is the 100m reach suited for?
A: Intra-row and short inter-row data center links such as leaf-to-spine or spine-to-super-spine.

Technical Specifications

- Form factor: OSFP, flat-top
- Aggregate speed: 800Gbps (2x 400G NDR)
- Protocol: InfiniBand NDR (PAM4)
- Wavelength: 1310nm
- Fiber type: Single-Mode Fiber (SMF)
- Reach: up to 100 meters
- Connector: 2x MPO-12 APC
- Port breakout: parallel optics per 400G channel
- Operating temperature: data center environment
- Use case: leaf–spine, scale-out HPC/AI fabrics
