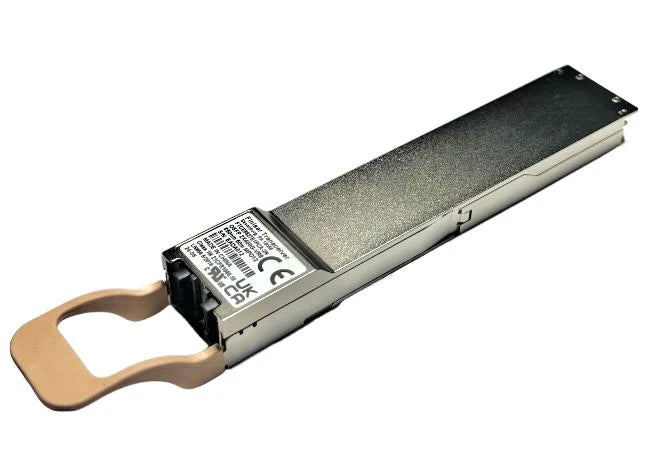

NVIDIA MMA4Z00-NS | 800G OSFP | 2x NDR SR4 | 850nm MMF | 50m | 2x MPO-12 APC

NVIDIA MMA4Z00-NS | 800G OSFP | 2x NDR SR4 | 850nm MMF | 50m | 2x MPO-12 APC

SKU:MMA4Z00-NS

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

Dual‑port 800G OSFP MMF transceiver delivering two independent 400G NDR SR4 links for dense HPC/AI fabrics. Finned OSFP design enables optimal thermal performance with 2x MPO‑12 APC interfaces up to 50 m on OM4/OM5.

Features

- 2x 400G NDR SR4 in a single high‑density OSFP module
- Optimized thermal design with finned heatsink for sustained performance
- MPO‑12 APC MMF interfaces for quick, scalable cabling
- PAM4 signaling for extreme throughput with low latency
- Hot‑swappable with DDM for operational monitoring
- Purpose‑built for HPC and AI fabric aggregation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this an Ethernet 800G module?
A: No. It provides two 400G NDR InfiniBand SR4 links within a single OSFP module.

Q: Do I need two separate MPO trunks?
A: Yes. Each NDR SR4 link uses its own MPO‑12 APC MMF trunk with Type‑B polarity.

Q: Will this fit in any OSFP slot?
A: Use in OSFP ports that support the required thermal and power envelope for finned NDR optics.

Q: Are the two 400G links independent?
A: Yes, each MPO interface presents an independent 400G NDR SR4 link.

Technical Specifications

- Aggregate data rate: 800 Gb/s (2x 400G NDR)
- Form factor: OSFP (finned heatsink)
- Protocol/application: InfiniBand NDR SR4 x2 (not Ethernet)
- Wavelength: 850 nm
- Fiber type: MMF (OM4/OM5)
- Reach: up to 50 m
- Connectors: 2x MPO-12 APC, female (no pins)
- Optical lanes: 2x SR4 (each link 4 Tx / 4 Rx, 100G PAM4 per lane)
- Digital diagnostics (DDM/DOM): Supported
- Operating temperature: 0 to +70 °C (commercial)
- Compatibility: NDR-capable OSFP switch/adapter ports supporting dual-port optics
