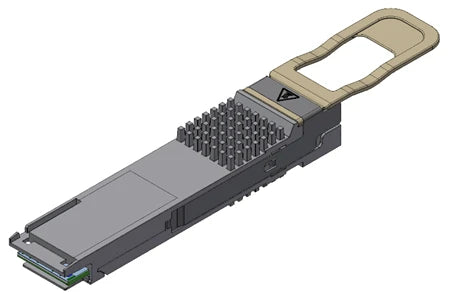

NVIDIA MMA1Z00-NS400 | 400G QSFP112 | NDR SR4 | 850nm MMF | 50m | MPO-12 APC

NVIDIA MMA1Z00-NS400 | 400G QSFP112 | NDR SR4 | 850nm MMF | 50m | MPO-12 APC

SKU:MMA1Z00-NS400

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

400G InfiniBand NDR SR4 optic for ultra‑low‑latency short‑reach fabric links in HPC and AI clusters. QSFP112 form factor with MPO‑12 APC interface delivers 4x100G PAM4 lanes over OM4/OM5 up to 50 m.

Features

- Purpose-built for 400G NDR InfiniBand short‑reach links
- QSFP112 form factor for 4x100G PAM4 lanes
- MPO‑12 APC MMF interface simplifies high‑density cabling
- Low‑latency optical path optimized for HPC/AI fabrics
- Hot‑swappable with DDM for operational visibility
- Interoperable with NDR-capable switches and adapters

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this module support Ethernet (400GbE)?
A: No. It is for InfiniBand NDR fabrics and is not intended for Ethernet.

Q: What cable should I use?
A: Use OM4 or OM5 MMF with MPO‑12 APC connectors and Type‑B polarity for SR4.

Q: Is the MPO interface pinned?
A: The module presents an MPO‑12 APC female (no pins); use pinned male cables.

Q: Maximum distance?
A: Up to 50 m on OM4/OM5, subject to link budget and cabling quality.

Technical Specifications

- Data rate: 400 Gb/s (4x100G PAM4)
- Form factor: QSFP112
- Protocol/application: InfiniBand NDR SR4 (not Ethernet)
- Wavelength: 850 nm
- Fiber type: MMF (OM4/OM5)
- Reach: up to 50 m
- Connector: MPO-12 APC, female (no pins)
- Optical lanes: SR4 (4 Tx / 4 Rx)
- Digital diagnostics (DDM/DOM): Supported
- Operating temperature: 0 to +70 °C (commercial)
- Compatibility: NDR-capable HCAs/NICs and switches supporting QSFP112 SR4 optics
