NVIDIA MFA7U10-H005 | LinkX 400G OSFP to 2x200G QSFP56 AOC Splitter, 5m

SKU:MFA7U10-H005

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

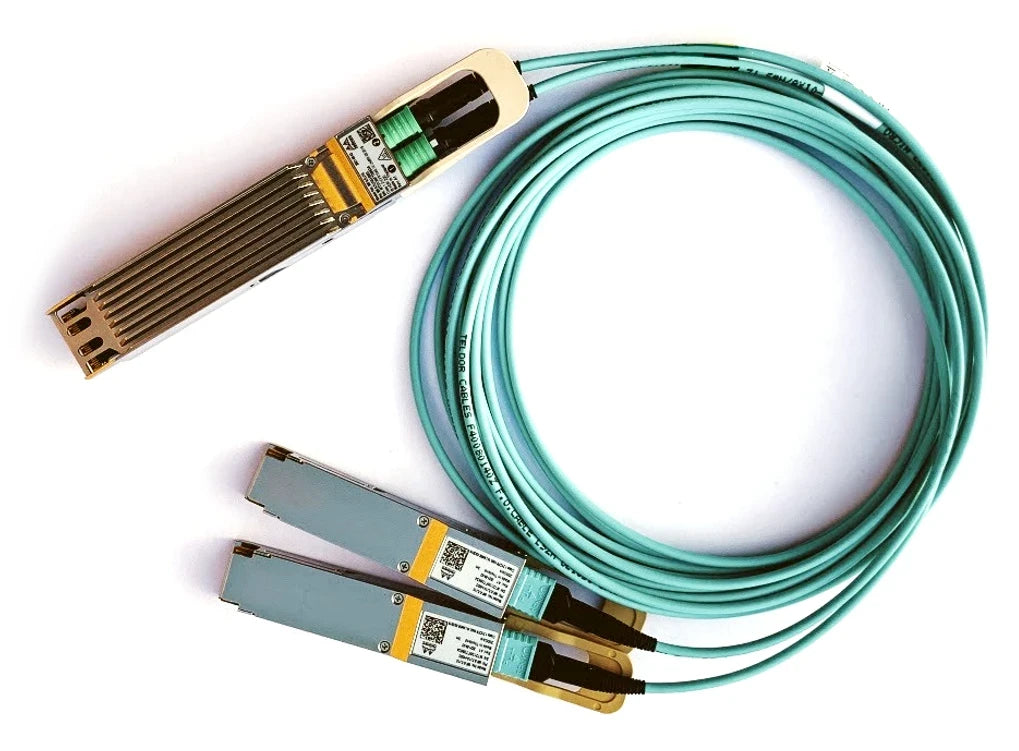

This NVIDIA LinkX active optical splitter cable breaks out one 400Gb/s OSFP port into two 200Gb/s QSFP56 connectors over multimode fibre. At 5m long, it suits breakout runs from an NDR or 400GbE switch to two legacy HDR or 200GbE switch ports or HCAs, for example one switch feeding two servers.

The OSFP end carries 8 multimode fibre pairs, split into 4 pairs for each QSFP56 end. It is an InfiniBand HDR twin port cable with a signalling rate of 26.5625 GBd per lane and 850nm operation. The OSFP end draws 10W maximum and each QSFP56 end draws 4.5W maximum from a single 3.3V supply. It operates at case temperatures from 0 to 70 C and is hot pluggable.

The OSFP head end is CMIS 4.0 compliant and the QSFP56 ends are SFF-8636 compliant. Pin assignments follow OSFP MSA Rev. 1.12 and SFF-8679. Ethernet and InfiniBand applications are supported with ConnectX-6 cards. This is the standard (non-flat-top) head version.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Splits one 400Gb/s OSFP port into two 200Gb/s QSFP56 connections
- OSFP head end CMIS 4.0 compliant
- QSFP56 ends SFF-8636 compliant
- Programmable Rx output amplitude and pre-emphasis
- Hot pluggable with a single 3.3V power supply
- EEPROM on each end for product and status monitoring
- RoHS compliant
- Production-tested for out-of-the-box installation, performance and durability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Type: Active optical splitter cable (AOC)
- Data rate: 400Gb/s to 2x200Gb/s
- Protocol: InfiniBand HDR (twin port)
- Connectors: OSFP to 2x QSFP56
- Fibre type: Multimode (MMF), 850nm
- Length: 5m
- Signalling rate per lane: 26.5625 GBd (+/-100 ppm)
- OSFP end power consumption: 9.0W typical, 10W maximum
- QSFP56 end power consumption: 4.35W typical, 4.5W maximum per end
- Supply voltage: 3.135 to 3.465V (3.3V typical)
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85%
- Storage temperature: -40 to 85 C
- Cable diameter: 3mm (+/-0.2mm)
- Minimum bend radius: 30mm
- Cable colour: Aqua
- Cable jacket: LSZH/OFNR
- Management interface: SFF-8636 compliant I2C
- Compliance: RoHS, OSFP MSA Rev. 1.12, SFF-8665 (QSFP56), SFF-8679 pin assignment

FAQs

Q: What does this cable connect?
A: It connects one 400Gb/s OSFP port on an NDR or 400GbE switch to two 200Gb/s QSFP56 ports on HDR or 200GbE switches or HCAs.

Q: Does it work with Ethernet as well as InfiniBand?
A: Both Ethernet and InfiniBand applications are supported, but only with ConnectX-6 cards.

Q: What power does it draw?
A: It runs from a single 3.3V supply. The OSFP end draws 10W maximum and each QSFP56 end draws 4.5W maximum.

Q: What fibre type does it use?
A: It uses multimode fibre at 850nm, with 8 fibre pairs on the OSFP end split into 4 pairs for each QSFP56 end.

Q: How does it differ from other MFA7U10-H00x lengths?
A: This SKU is the 5m OSFP to 2x QSFP56 version with a standard (non-flat-top) head. Other SKUs in the range differ by length and head style.
