NVIDIA

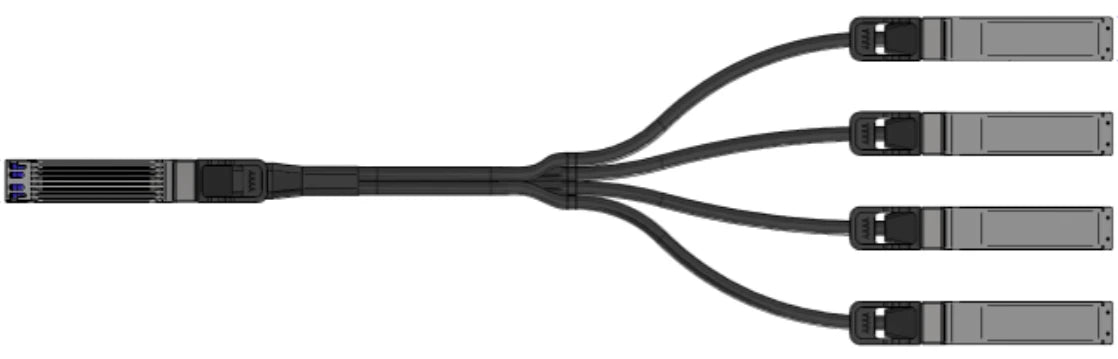

NVIDIA MCP7Y50-N001-FLT | DAC breakout | IB NDR 800G→4x200G | OSFP (flat‑top)→4xOSFP | passive copper | 1m

SKU:MCP7Y50-N001-FLT

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Passive copper DAC breakout with flat‑top OSFP on the 800G root side for improved clearance in dense cages, fanning out to four 200G OSFP endpoints. Delivers zero‑power, ultra‑low latency links for short‑reach, in‑rack wiring in HPC/AI deployments. Ideal for NDR switch or adapter fan‑out directly to OSFP 200G hosts. Length: 1 m.

Features

- Flat‑top OSFP root for dense chassis compatibility
- 800G→4x200G OSFP fan‑out for high‑density interconnects
- Passive copper for zero power and minimal latency
- Rugged latching connectors suited to in‑rack installs
- Optimized for NDR/NDR200 IB fabrics in HPC/AI

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What is the benefit of the flat‑top OSFP?
A: It provides additional mechanical clearance in high‑density cages while maintaining electrical compatibility with OSFP NDR ports.

Q: Is this for Ethernet?
A: No. It is designed for InfiniBand NDR/NDR200 environments.

Q: Are separate optics required?
A: No. This is a passive DAC assembly with integrated connectors.

Q: Can it connect to QSFP112 endpoints?
A: No. This variant terminates in 4x OSFP. Use an OSFP→4xQSFP112 model for QSFP112 endpoints.

Technical Specifications

- Interface/protocol: InfiniBand NDR 800G (root) to NDR200 200G x4 (fan-out)
- Breakout: 1x OSFP flat‑top (twin‑port 800G) to 4x OSFP (200G)
- Cable type: Passive copper DAC
- Aggregate data rate: 800 Gb/s (4x 200 Gb/s legs)
- Length: 1 m
- Connectors: OSFP male (flat‑top) → 4x OSFP male
- Mechanical note: Flat‑top OSFP for clearance‑constrained ports
- Power: 0 W (passive), ultra‑low latency
- Compatibility: NDR‑capable OSFP ports (e.g., Quantum‑2, ConnectX‑7 IB)
