NVIDIA

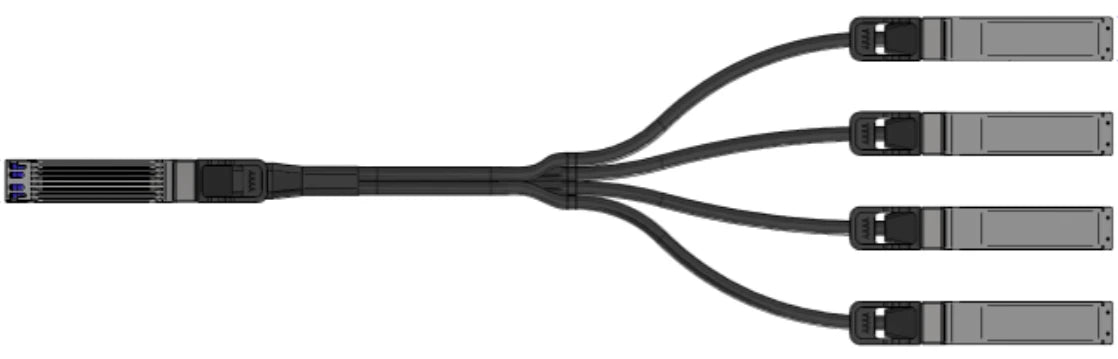

NVIDIA MCP7Y50-N001 | DAC breakout | IB NDR 800G→4x200G | OSFP→4xOSFP | passive copper | 1m

SKU:MCP7Y50-N001

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Passive copper DAC breakout that fans out an InfiniBand NDR 800G twin‑port OSFP to four 200G OSFP endpoints. Provides zero‑power, ultra‑low latency connectivity for short‑reach, in‑rack wiring in HPC/AI clusters. Suited for fan‑out from NDR switches or adapters directly to OSFP 200G hosts. Length: 1 m.

Features

- 800G root to 4x200G OSFP fan‑out for dense fabrics
- Passive, zero‑power operation with minimal latency
- Robust OSFP connectors on both root and fan‑out
- Simplifies leaf‑to‑server breakouts in HPC/AI clusters
- Purpose‑built for NDR/NDR200 environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Can this connect to QSFP112 endpoints?
A: No. This variant is OSFP to 4x OSFP. For QSFP112 endpoints, use an OSFP→4xQSFP112 version.

Q: Is it suitable for Ethernet?
A: No. It is intended for InfiniBand NDR/NDR200 ports only.

Q: Do I need separate transceivers or modules?
A: No. As a DAC assembly, it plugs directly into the ports without additional optics.

Q: What distance is supported?
A: As a passive copper DAC, it is designed for short in‑rack runs. Use optical solutions for longer distances.

Technical Specifications

- Interface/protocol: InfiniBand NDR 800G (root) to NDR200 200G x4 (fan-out)
- Breakout: 1x OSFP (twin‑port 800G) to 4x OSFP (200G)
- Cable type: Passive copper DAC
- Aggregate data rate: 800 Gb/s (4x 200 Gb/s legs)
- Length: 1 m
- Connectors: OSFP male → 4x OSFP male
- Power: 0 W (passive), ultra‑low latency
- Use case: Short‑reach, in‑rack fan‑out from NDR switch/adapter to 4 OSFP endpoints
- Compatibility: NDR‑capable OSFP ports on switches and adapters (e.g., Quantum‑2, ConnectX‑7 IB)
