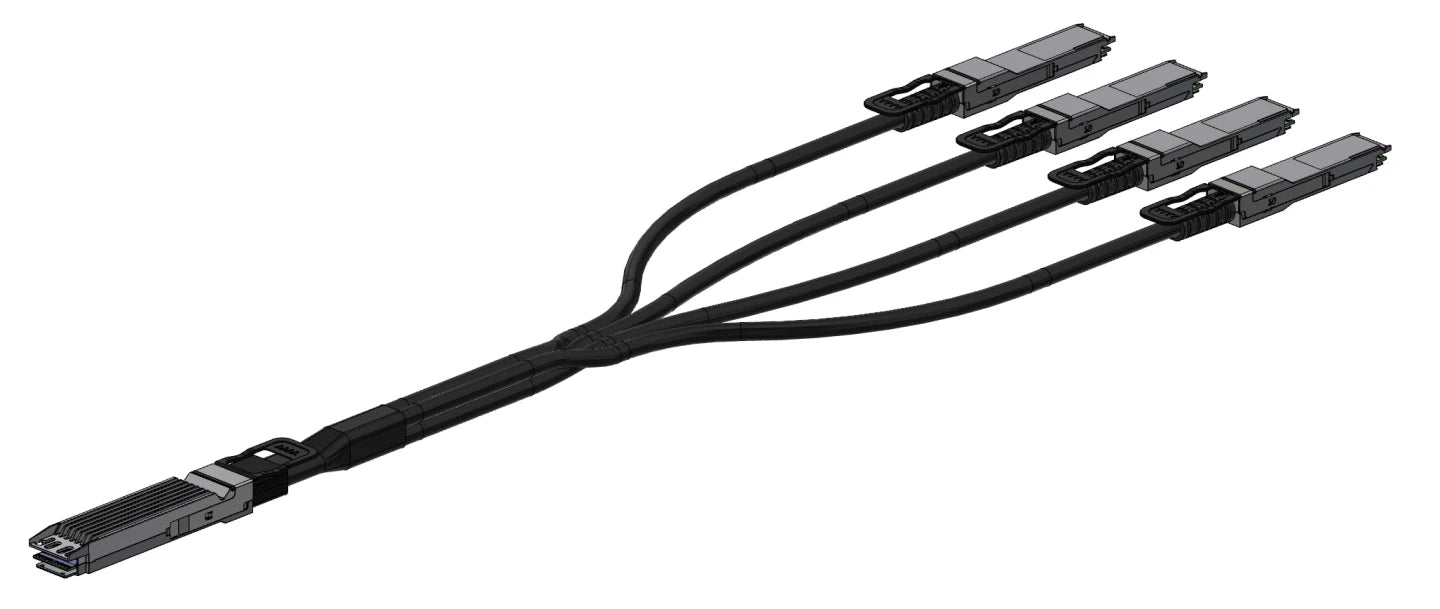

• NVIDIA MCP7Y40-N002 800G OSFP to 4x200G QSFP112 2m DAC cable
1 1

NVIDIA

NVIDIA MCP7Y40-N002 | 800G NDR OSFP to 4x200G QSFP112 DAC, passive copper, 2m, breakout 1:4, InfiniBand, 112G PAM4 lanes, reach 2m, connectors: OSFP | QSFP112

MCP7Y40-N002

Stock Status: Enquire

$2,064.48 AUD
$2,064.48 AUD
$2,064.48 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Passive copper splitter DAC for InfiniBand NDR fanout, converting a single 800G OSFP port into four 200G QSFP112 branches. Suited for short-reach, in-rack and row deployments up to 2 meters with ultra-low latency and zero power consumption.

Features

- High-density 1:4 fanout for NDR fabrics
- Zero power, low heat dissipation
- Consistently low latency via passive copper
- 2 m reach for flexible in-rack routing
- Simple, hot-pluggable installation
- Cost-effective versus optical for short distances

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Interface/standard: InfiniBand NDR (800G aggregate)
- Data rate: 800G host to 4x 200G branches
- Electrical lanes: OSFP 8x 100G-PAM4; each QSFP112 branch 2x 100G-PAM4
- Connector A: OSFP (host)
- Connectors B: 4x QSFP112 (fanout)
- Cable type: Direct Attach Copper (passive)
- Breakout ratio: 1:4
- Reach/length: 2 m
- Low latency: passive copper, no retimers
- Hot-pluggable form factors

FAQs

Q: Active or passive?
A: Passive copper DAC.

Q: Intended use?
A: Fanout from an 800G OSFP NDR port to four 200G QSFP112 NDR200 ports.

Q: Lane mapping?
A: 8x100G at OSFP, split as 4x branches of 2x100G each at QSFP112.

Q: Ethernet compatibility?
A: Designed for InfiniBand NDR; confirm platform support before using with other protocols.

Q: External power required?
A: No.

Q: Hot-pluggable?
A: Yes, OSFP and QSFP112 are hot-pluggable.
