NVIDIA

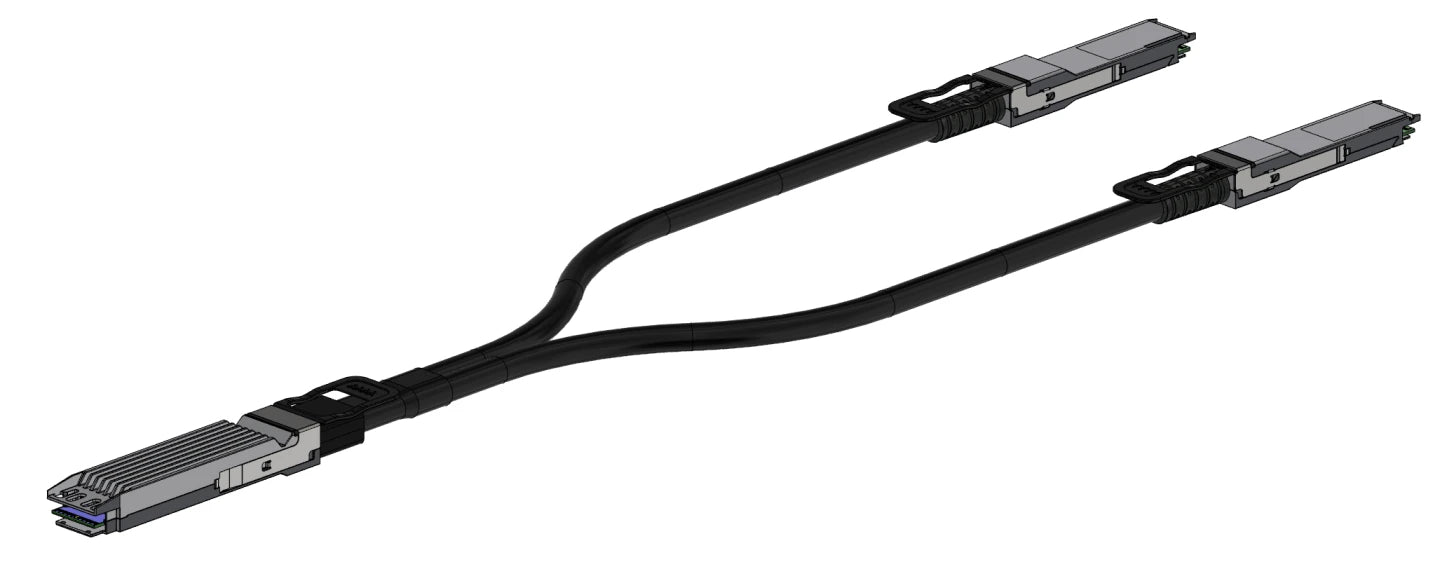

NVIDIA MCP7Y10-N003 | Passive DAC splitter | OSFP to 2x QSFP112 | IB NDR 800G->2x400G | 3m

SKU:MCP7Y10-N003

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Passive copper breakout DAC that converts one 800G NDR OSFP port into two 400G NDR QSFP112 links. Provides low‑latency, short‑reach connectivity for switch and adapter breakouts at 3m length with precise lane mapping and no power consumption. Ideal for structured intra‑rack routing in HPC/AI fabrics.

Features

- 3m passive twinax DAC for 800G→2x400G NDR breakouts
- Ultra‑low latency, no power consumption
- Clean lane breakout: 8‑lane OSFP to 2x 4‑lane QSFP112
- Ideal for structured intra‑rack cabling
- Reliable performance for HPC and AI fabrics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is 3m suitable for passive DAC at 800G/400G?
A: Yes. This assembly is designed for short‑reach passive operation at the specified 3m length on supported NDR ports.

Q: Do I need special drivers or licenses?
A: No licenses are required for the cable; ensure your ports support NDR breakout operation.

Q: Can each 400G leg connect to a different device?
A: Yes. Each leg functions as an independent 400G link to a compatible QSFP112 port.

Technical Specifications

- Type: Passive copper direct attach splitter (DAC)
- Interface: OSFP 800G NDR to 2x QSFP112 400G NDR
- Aggregate/Breakout Rate: 800Gb/s to 2x 400Gb/s
- Form factors: 1x OSFP (host) to 2x QSFP112 (remote)
- Lane mapping: 8 lanes -> 2x (4 lanes) PAM4
- Medium: Twinax copper
- Length: 3m
- Operation: Passive (no power), ultra‑low latency
- Use case: Short‑reach intra‑rack InfiniBand NDR breakouts
- Compatibility: Devices with 800G NDR OSFP and 400G NDR QSFP112 ports
