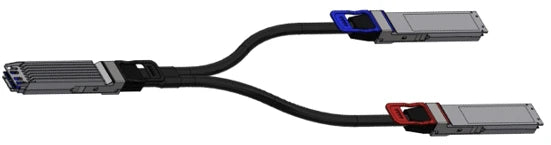

• NVIDIA MCP7Y00-N01A black red 800G OSFP DAC splitter cable 1.5m
1 1

NVIDIA

NVIDIA MCP7Y00-N01A | IB NDR 800G OSFP-to-2xOSFP passive DAC splitter, 2x400G breakout, 1.5m reach

MCP7Y00-N01A

Stock Status: Enquire

$1,443.37 AUD
$1,443.37 AUD
$1,443.37 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Passive direct-attach copper Y-splitter enabling one 800G OSFP twin-port to break out into two 400G OSFP links. Optimized for very short-reach InfiniBand NDR connections with minimal latency and power versus optics. Ideal for top-of-rack to server or intra-rack switch links.

Features

- Short 1.5 m reach for lowest latency and power
- 800G to 2x400G breakout for flexible port utilization
- OSFP-to-OSFP ends for direct connection without transceivers
- Passive copper design for cost-effective short links
- Mechanical/electrical alignment with OSFP MSA

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cable type: Passive Direct Attach Copper (DAC) splitter
- Interface/form factor: OSFP (800G twin-port to 2x OSFP 400G)
- Aggregate data rate: 800 Gb/s
- Per-leg data rate: 400 Gb/s
- Protocol/base standard: InfiniBand NDR (PAM4)
- Breakout/lane mapping: 16x50G PAM4 to 2x(8x50G PAM4)
- Reach: 1.5 meters
- Connectors: 1x OSFP (800G) to 2x OSFP (400G)
- Power: Passive, no external power or optics required
- Compliance: OSFP MSA; passive DAC handling and bend-radius practices apply
- Use case: Ultra-short TOR/leaf to server or adjacent switch breakout

FAQs

Q: Is this for InfiniBand or Ethernet?
A: It targets InfiniBand NDR. Ethernet operation depends on specific platform support for OSFP breakouts.

Q: Does it require configuration?
A: Devices must support 800G-to-dual-400G breakout on OSFP ports; enable breakout if required by the platform.

Q: Can it connect to QSFP?
A: No, all ends are OSFP.

Q: What is the length?
A: 1.5 meters.

Q: Is this active or passive?
A: Passive DAC; no active optical components.
