NVIDIA MCP7Y00-N003 | LinkX 800G to 2x400G OSFP DAC Splitter Cable, 3m

SKU:MCP7Y00-N003

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

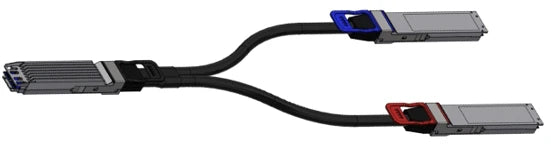

The NVIDIA LinkX MCP7Y00 is a passive direct attach copper breakout cable that connects one 800Gb/s twin-port OSFP port on a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch to two 400Gb/s OSFP ports on ConnectX-7 adapters. It suits data-centre, AI and HPC server racks where a single switch port needs to feed two adapters over a short run.

This 3m version uses 26AWG copper with a finned-top twin-port OSFP head on the switch end and two flat-top OSFP ends on the adapter side. Each 400Gb/s end carries 4 x 100G-PAM4 lanes, giving an 800Gb/s to 2x400Gb/s 1:2 breakout. The cable is passive with no electronics in the data path, and each OSFP end draws just 0.1 W maximum from the host. Operating case temperature is 0 to 70 C, and the jacket is LSZH.

The finned-top twin-port head fits NVIDIA Quantum-2 and Spectrum-4 switch cages. The flat-top ends fit ConnectX-7 OSFP adapters with riding heat sinks. Firmware supports both InfiniBand NDR and Ethernet, selected automatically by the protocol of the attached switch. This is the non-FLT variant, so it is not intended for liquid-cooled switches that use a flat-top twin-port head.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 800Gb/s to two 400Gb/s breakout in a single cable
- Firmware supports both InfiniBand and Ethernet, enabled automatically by the attached switch protocol
- Passive design with no electronics in the data path for low latency and near-zero power
- EEPROM in each end provides product identification and characteristics to the host
- Cable length tuned to reduce internal signal noise and back reflections
- Hot pluggable, RoHS compliant, LSZH jacket
- Rigorous production testing for an out-of-the-box installation experience and durability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 800Gb/s twin-port OSFP (finned top, switch end) to 2x 400Gb/s OSFP (flat top, adapter ends)
- Cable type: Passive Direct Attach Copper (DAC) dual breakout/splitter
- Data rate: 800Gb/s to 2x400Gb/s, based on 100G-PAM4 modulation
- Protocol: InfiniBand NDR, also supports Ethernet
- Length: 3.0 m (length tolerance +/-50 mm for lengths of 2 m or more)
- Wire gauge: 26AWG, 2x8 pairs
- Cable diameter: 8.9 +/-0.03 mm
- Minimum bend radius: 89 mm
- Assembly space L (combined/single end): 156/147 mm
- Supply voltage (Vcc): 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption: 0.1 W max (per OSFP end)
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Management interface: CMIS Rev 5.0 compliant I2C (OSFP end), flat memory, Power Class 1
- Media type: Passive copper (OSFP identifier 19h)
- Jacket/PCB: LSZH jacket; lead-free, halogen-free PCB
- Safety certifications: CB, TUV, CE, EAC, UKCA
- EMC certifications: CE, FCC (Class A), ICES, RCM, VCCI

FAQs

Q: Which switches and adapters does this cable connect?
A: The finned-top twin-port OSFP head fits NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet switch cages. The two flat-top OSFP ends fit ConnectX-7 OSFP adapters with riding heat sinks.

Q: Does it need external power?
A: No. It is a passive cable and each OSFP end draws only 0.1 W maximum from the host at 3.3 V (Power Class 1).

Q: Can it be used with BlueField-3 or ConnectX-7 QSFP112 devices?
A: No. Those devices need the QSFP112 MCP7Y10 or MCP7Y40 cables. This cable is for OSFP ConnectX-7 adapters.

Q: Does it support Ethernet as well as InfiniBand?
A: Yes. The firmware supports both InfiniBand NDR and Ethernet, and the protocol is enabled automatically based on the attached switch.

Q: How does this differ from the -FLT variants?
A: This SKU has a finned-top twin-port OSFP head for air-cooled switches. The -FLT variants use a flat-top twin-port head for liquid-cooled switches such as the DGX-H100.
