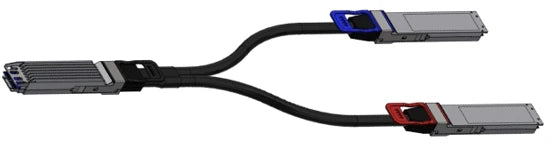

NVIDIA MCP7Y00-N002 | LinkX 800G OSFP to 2x400G OSFP DAC Splitter, 2m
SKU:MCP7Y00-N002
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The LinkX MCP7Y00 is a 2 m passive copper splitter cable that links one 800Gb/s twin-port OSFP head to two 400Gb/s OSFP tails. It is built for short-reach data centre links, connecting Quantum-2 InfiniBand or Spectrum-4 Ethernet switches to OSFP-based ConnectX-7 adapters.
The twin-port end has a finned top and the two single-port ends have a flat top. The cable uses 26AWG wire in a 2x8 pair construction with 100G-PAM4 modulation, giving four 100G channels on each 400G end. It supports InfiniBand NDR and Ethernet 800GBASE-CR8 and 400GBASE-CR4. Each OSFP end draws a maximum of 0.1 W from a 3.3 V host supply, there is no electronics in the data path, and the cable is hot pluggable. The jacket is LSZH and the cable is RoHS compliant. No licence or subscription is required.
The finned-top twin-port head fits Quantum-2 InfiniBand and Spectrum-4 Ethernet switch cages, and the flat-top tails fit ConnectX-7 OSFP adapters. The flat-top twin-port FLT variant for liquid-cooled systems is a different SKU.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Twin-port finned-top OSFP head for Quantum-2 and Spectrum-4 switch cages
- Two single-port flat-top OSFP tails for ConnectX-7 adapters
- Passive design with no electronics in the data path for low latency and near-zero power
- Firmware supports both InfiniBand and Ethernet and selects the right mode automatically from the attached switch
- Each end has an EEPROM holding product identification and characteristics
- Hot pluggable
- Cable length is tuned to reduce internal signal noise and back reflections
- LSZH jacket with lead-free, halogen-free PCB
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ordering part number: MCP7Y00-N002
- Data rate: 800Gb/s to two 400Gb/s
- Connectors: twin-port OSFP (finned top) to 2 x OSFP (flat top)
- Media type: Passive copper DAC
- Modulation: 100G-PAM4
- Length: 2.0 m
- Wire gauge: 26AWG, 2x8 pairs
- Cable diameter: 8.9 mm
- Minimum bend radius: 89 mm
- Supply voltage: 3.135 to 3.465 V (3.3 V typical)
- Power consumption: 0.1 W max per OSFP end
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Propagation delay: 4.5 ns/m max
- Management interface: CMIS Rev 5.0 compliant I2C
- Supported applications: InfiniBand NDR, 800GBASE-CR8, 400GBASE-CR4, 200GBASE-CR2, 100GBASE-CR1
- Jacket: LSZH
- Regulatory: CE, FCC, UKCA, RCM, VCCI, RoHS compliant
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and requires no licence or subscription.
Q: How is the cable powered?
A: It is passive and draws power from the host at 3.3 V, with a maximum of 0.1 W per OSFP end (Power Class 1).
Q: Which devices does it connect?
A: The twin-port OSFP head fits Quantum-2 InfiniBand and Spectrum-4 Ethernet switch cages. The two flat-top OSFP tails fit ConnectX-7 OSFP adapters.
Q: Can I use it with ConnectX-7 or BlueField-3 QSFP112 ports?
A: No. Adapters and DPUs with QSFP112 ports need the QSFP112 versions, MCP7Y10 or MCP7Y40.
Q: How does it differ from the FLT variant?
A: This SKU has a finned-top twin-port head for air-cooled switch cages. The FLT variant has a flat-top twin-port end for liquid-cooled systems such as DGX-H100.
