NVIDIA MCP7Y00-N002-FLT | LinkX 800G to 2x400G OSFP DAC Splitter, 2m, Flat Top

SKU:MCP7Y00-N002-FLT

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

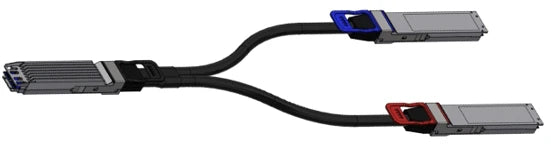

This NVIDIA LinkX MCP7Y00 passive copper splitter cable breaks one 800Gb/s twin-port OSFP out into two 400Gb/s OSFP ends. It is built for InfiniBand NDR and Ethernet deployments, linking an 800Gb/s Quantum-2 InfiniBand or Spectrum-4 Ethernet switch to two OSFP-based 400Gb/s ConnectX-7 adapters in data centre and AI/HPC clusters.

The cable is 2.0 m long and uses 26AWG, 2 x 8 pair construction with 100G-PAM4 modulation and 4 channels per 400G end. The -FLT variant has a flat-top twin-port OSFP head intended for liquid-cooled switches such as DGX-H100 systems, and flat-top single-port OSFP tails suit ConnectX-7 adapters with riding heat sinks. Being passive, each OSFP end draws only 0.1 W maximum from a 3.3 V supply (Power Class 1). The jacket is LSZH, and the cable is hot pluggable.

The twin-port head connects to 800Gb/s switch ports, while the two 400G tails connect to OSFP-based ConnectX-7 PCIe adapters. BlueField-3 and ConnectX-7 QSFP112 devices need the QSFP112-ended MCP7Y10 or MCP7Y40 cables instead.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Splits one 800Gb/s twin-port OSFP into two 400Gb/s OSFP links
- Firmware supports both InfiniBand and Ethernet, selected automatically by the attached switch protocol
- Flat-top twin-port OSFP head for liquid-cooled switches
- Flat-top single-port OSFP ends suit ConnectX-7 adapters with riding heat sinks
- Passive design with the lowest cost, lowest latency and near-zero power consumption
- EEPROM at each end provides product identification to the host
- Cable length is tuned to reduce signal noise and back reflections
- Hot pluggable, with each production cable tested
- Application descriptors cover IB NDR, 800GBASE-CR8, 400GBASE-CR4, 200GBASE-CR2 and 100GBASE-CR1

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: OSFP twin-port head to 2 x single-port OSFP ends
- Data rate: 800Gb/s to 2 x 400Gb/s
- Modulation: 100G-PAM4, 4 channels per 400G end
- Cable length: 2.0 m
- Cable type: Passive copper, 26AWG, 2 x 8 pairs
- Cable diameter: 8.9 mm
- Length tolerance: +/-50 mm (length 2 m and above)
- Minimum bend radius: 89 mm
- Assembly space L (combined/single end): 156/147 mm
- Supply voltage (Vcc): 3.135 min, 3.3 typ, 3.465 max V
- Power consumption: 0.1 W max per OSFP end
- Power class: Class 1
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Management interface: CMIS Rev 5.0 compliant I2C, flat memory model
- Media type: Passive copper, unequalised
- Jacket: LSZH, lead-free halogen-free PCB
- Regulatory (safety): CB, TUV, CE, EAC, UKCA
- Regulatory (EMC): CE, FCC, ICES, RCM, VCCI
- Compliance: RoHS, FCC Class A

FAQs

Q: What does the flat-top (-FLT) head mean?
A: The twin-port OSFP head has a flat top for use in liquid-cooled switches, such as DGX-H100 systems. The single-port OSFP tails are also flat-top.

Q: Which switch ports does the twin-port end connect to?
A: It connects to 800Gb/s Quantum-2 InfiniBand or Spectrum-4 Ethernet switch ports in liquid-cooled systems.

Q: Which adapters can the two 400G ends connect to?
A: The two 400G tails connect to OSFP-based 400Gb/s ConnectX-7 PCIe adapters. BlueField-3 and ConnectX-7 QSFP112 devices need the QSFP112-ended MCP7Y10 or MCP7Y40 cables instead.

Q: Does it support both InfiniBand and Ethernet?
A: Yes. The firmware supports both InfiniBand NDR and Ethernet, selected automatically by the protocol of the attached switch.

Q: How much power does this cable use?
A: It is a passive cable with no active electronics in the data path. Each OSFP end draws 0.1 W maximum from a 3.3 V supply (Power Class 1).
