NVIDIA MCP7Y00-N001 | LinkX 800G OSFP to 2x400G OSFP DAC Splitter, 1m, 30AWG
SKU:MCP7Y00-N001
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

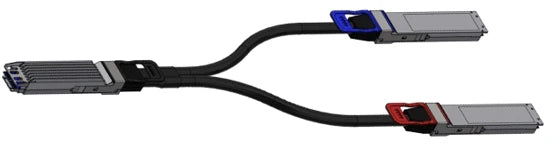

The LinkX MCP7Y00-N001 is a passive copper splitter cable that breaks one 800Gb/s twin-port OSFP (finned top) out to two 400Gb/s OSFP (flat top) ends. It is built for data centre and AI/HPC fabrics that link Quantum-2 InfiniBand or Spectrum-4 Ethernet switches to OSFP-based 400Gb/s ConnectX-7 adapters.
The cable is 1m long, uses 30AWG conductors (2x8 pairs) and carries 100G-PAM4 signalling, with 4 lanes per 400G end. Because there are no electronics in the data path, each OSFP end draws just 0.1 W maximum from a 3.3 V supply (OSFP Power Class 1), keeping power and latency low compared with active links. Each end holds an EEPROM that passes product identification to the host, and the cable is hot pluggable.
The finned-top twin-port end fits Quantum-2 and Spectrum-4 switch cages, while the two flat-top 400G OSFP ends suit ConnectX-7 OSFP adapters with riding heat sinks. Firmware supports both InfiniBand and Ethernet and is enabled automatically based on the attached switch protocol. The LSZH jacket and RoHS compliance suit enclosed data centre cable runs.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Firmware supports both InfiniBand and Ethernet, enabled automatically based on the attached switch protocol
- Finned-top twin-port OSFP end is designed for Quantum-2 and Spectrum-4 switch cages
- Two flat-top 400G OSFP ends are designed for ConnectX-7 adapters with riding heat sinks
- Passive design gives near-zero power consumption and low latency compared with active links
- EEPROM in each end provides product identification and characteristics to the host
- Hot pluggable for in-service connection
- LSZH jacket and RoHS compliant construction
- Same design and internals as the QSFP112 version, with different connector shells
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ordering part number: MCP7Y00-N001
- Data rate: 800Gb/s to two 400Gb/s
- Connectors: twin-port OSFP (finned top) to 2x OSFP (flat top)
- Protocol: InfiniBand NDR, 1:2 split
- Modulation: 100G-PAM4, 4 lanes per 400G end
- Cable type: passive copper
- Cable length: 1.0 m (tolerance +/-25 mm for lengths under 2 m)
- Wire gauge: 30AWG, 2x8 pairs
- Cable diameter: 7.2 +/-0.03 mm
- Minimum bend radius: 72 mm
- Supply voltage (Vcc): 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption: 0.1 W max per OSFP end
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Management interface: CMIS 5.0 compliant I2C
- Jacket: LSZH, lead-free and halogen-free PCB
- Regulatory: CB, TUV, CE, EAC, UKCA, FCC, ICES, RCM, VCCI
FAQs
Q: Which switches does the twin-port end connect to?
A: The finned-top twin-port OSFP end fits Quantum-2 InfiniBand and Spectrum-4 Ethernet switch cages.
Q: Which adapters do the two 400G ends connect to?
A: The two flat-top 400G OSFP ends fit OSFP-based ConnectX-7 adapters. BlueField-3 and ConnectX-7 QSFP112 devices need the QSFP112-end cables (MCP7Y10 or MCP7Y40) instead.
Q: Does this cable need external power?
A: No. It is a passive copper cable with no electronics in the data path. Each OSFP end draws 0.1 W maximum from a 3.3 V supply.
Q: Can it be used for Ethernet as well as InfiniBand?
A: Yes. The firmware supports both protocols and is enabled automatically based on the protocol of the attached switch.
Q: How does this differ from the -FLT variant?
A: This MCP7Y00-N001 uses a finned-top twin-port OSFP end. The -FLT variant has a flat-top twin-port end and is intended for liquid-cooled switches.
