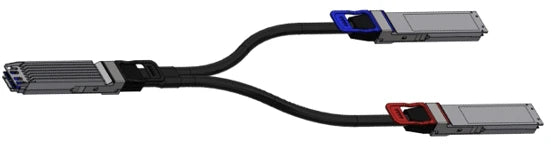

NVIDIA MCP7Y00-N001-FLT | LinkX 800G OSFP to 2x400G OSFP DAC Splitter, 1m, Flat Top
SKU:MCP7Y00-N001-FLT
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NVIDIA LinkX MCP7Y00 is a passive copper splitter cable that connects one 800Gb/s twin-port OSFP to two 400Gb/s OSFP ends. It is designed for linking an 800Gb/s Quantum-2 InfiniBand or Spectrum-4 Ethernet switch to two 400Gb/s ConnectX-7 OSFP network adapters in server racks. This flat-top (-FLT) variant uses a flat-top twin-port OSFP head for liquid-cooled switches such as the DGX-H100.
The cable is 1 m long and built from 30AWG wire (2x8 pairs) with a 7.2 mm cable diameter and an LSZH jacket. It uses 100G-PAM4 modulation with four 100G channels per 400G end. Each OSFP end draws 0.1 W maximum from the host at 3.3 V (Power Class 1), with no electronics in the data path for the lowest latency and cost. The operating case temperature range is 0 to 70 C.
The single-port OSFP ends work only with ConnectX-7 OSFP adapters. BlueField-3 and ConnectX-7 QSFP112 devices need the QSFP112 ends found on the MCP7Y10 and MCP7Y40 cables instead. A single cable firmware supports both InfiniBand and Ethernet, selected automatically to match the attached switch.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Flat-top twin-port OSFP head for liquid-cooled switches such as the DGX-H100
- One cable firmware supports both InfiniBand and Ethernet, enabled automatically for the attached switch
- Near-zero-power, low-latency link with no electronics in the data path
- Supports InfiniBand NDR, Ethernet 800GBASE-CR8, 400GBASE-CR4, 200GBASE-CR2 and 100GBASE-CR1 application modes via the memory map
- Hot pluggable
- Each end has an EEPROM holding product identification and characteristics for the host system
- Cable length is tuned to reduce internal signal noise and back reflections
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MCP7Y00-N001-FLT
- Data rate: 800Gb/s to 2x 400Gb/s (1:2 splitter)
- Modulation: 100G-PAM4 (4 channels x 100G per 400G end)
- Switch-side connector: twin-port OSFP, flat top for liquid-cooled switches
- Adapter-side connectors: 2x single-port OSFP, flat top
- Media type: Passive copper
- Cable length: 1.0 m (tolerance +/-25 mm for lengths under 2 m)
- Wire gauge: 30AWG, 2x8 pairs
- Cable diameter: 7.2 +/-0.03 mm
- Minimum bend radius: 72 mm
- Supply voltage (Vcc): 3.135 / 3.3 / 3.465 V (min/typ/max)
- Power consumption: 0.1 W max per OSFP end
- Power class: Class 1
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Management interface: CMIS 5.0 compliant I2C
- Jacket: LSZH, lead-free and halogen-free PCB
- Safety certifications: CB, TUV, CE, EAC, UKCA
- EMC certifications: CE, FCC, ICES, RCM, VCCI
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper cable. Each OSFP end draws 0.1 W maximum from the host at 3.3 V (Power Class 1).
Q: Which adapters can the 2x400G ends connect to?
A: The single-port OSFP ends work only with ConnectX-7 OSFP adapters. BlueField-3 and ConnectX-7 QSFP112 devices need the QSFP112 ends on the MCP7Y10 and MCP7Y40 cables instead.
Q: What does the flat-top head mean for switch compatibility?
A: The -FLT variant has a flat-top twin-port OSFP head intended for liquid-cooled switches such as the DGX-H100.
Q: Does it work for both InfiniBand and Ethernet?
A: Yes. One cable firmware supports both, and the mode is enabled automatically according to the protocol of the attached switch.
Q: Which switches does it connect to?
A: It links an 800Gb/s Quantum-2 InfiniBand or Spectrum-4 Ethernet switch to two 400Gb/s ConnectX-7 OSFP adapters.
