NVIDIA MCP7H50-H01AR30 | LinkX HDR 200G to 2x100G QSFP56 Breakout DAC, 1.5m, 30AWG
SKU:MCP7H50-H01AR30
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

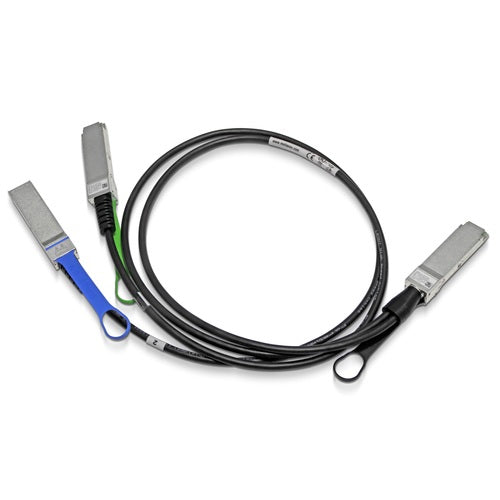

This LinkX passive copper breakout cable connects one 200Gb/s InfiniBand HDR QSFP56 port to two 100Gb/s HDR100 QSFP56 ports. It suits short-reach links inside data centres and InfiniBand HDR fabrics, where a single switch port fans out to two adapters or ports at a lower cost and lower power draw than optical fibre.
The cable is 1.5m long and built from 30 AWG copper, using 4x 50Gb/s PAM4 modulation. It is passive, runs from the host's 3.3V supply and draws 0.1W maximum. The LSZH jacket and coloured pull tabs make it suitable for dense rack cabling, and the cable is hot pluggable. Operating case temperature is 0 to 70 C.
It is designed for InfiniBand HDR end-to-end systems, with the single QSFP56 end going to the 200Gb/s HDR port and the two QSFP56 ends going to 100Gb/s HDR100 ports. Each connector includes an EEPROM with host-readable product information over an SFF-8636 compliant I2C interface.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- IBTA InfiniBand HDR compliant
- Splits one 200Gb/s HDR port into two 100Gb/s HDR100 ports
- Hot pluggable
- LSZH jacket for low smoke and zero halogen
- Lead-free, halogen-free PCB
- EEPROM in each QSFP56 connector for host-readable product information
- SFF-8636 compliant I2C management interface
- Production-tested for out-of-the-box installation and durability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MCP7H50-H01AR30
- Data rate: 200Gb/s HDR to 2x100Gb/s HDR100
- Connectors: QSFP56 to 2x QSFP56
- Modulation: 4x 50Gb/s PAM4
- Length: 1.5 m
- Wire gauge: 30 AWG
- Single cable diameter: 5.2 mm
- Minimum bend radius (single bend): 26 mm
- Minimum bend radius (repeated bend): 52 mm
- Supply voltage: 3.135 to 3.465 V (3.3 V typical)
- Power consumption: 0.1 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Bit error rate: better than 1E-15 with InfiniBand HDR systems
- Management interface: SFF-8636 compliant I2C
- Connector standard: SFF-8665 compliant
- Jacket: LSZH (Low Smoke Zero Halogen)
- Compliance: IBTA InfiniBand HDR, RoHS
FAQs
Q: Does this cable need external power?
A: No. It is a passive cable that runs from the host's 3.3 V supply (3.135 to 3.465 V) and draws 0.1 W maximum.
Q: Which ports does each end connect to?
A: The single QSFP56 end connects to a 200Gb/s InfiniBand HDR port, and the two QSFP56 ends connect to 100Gb/s HDR100 ports.
Q: What type of network is this cable designed for?
A: It is designed for InfiniBand HDR end-to-end systems and is IBTA InfiniBand HDR compliant.
Q: How does it differ from other cables in the MCP7H50 range?
A: This SKU is the 1.5m version using 30 AWG copper. Other SKUs in the range differ by length and wire gauge.
Q: What is the minimum bend radius?
A: The minimum bend radius is 26 mm for a single bend and 52 mm for assembly or repeated bends.
