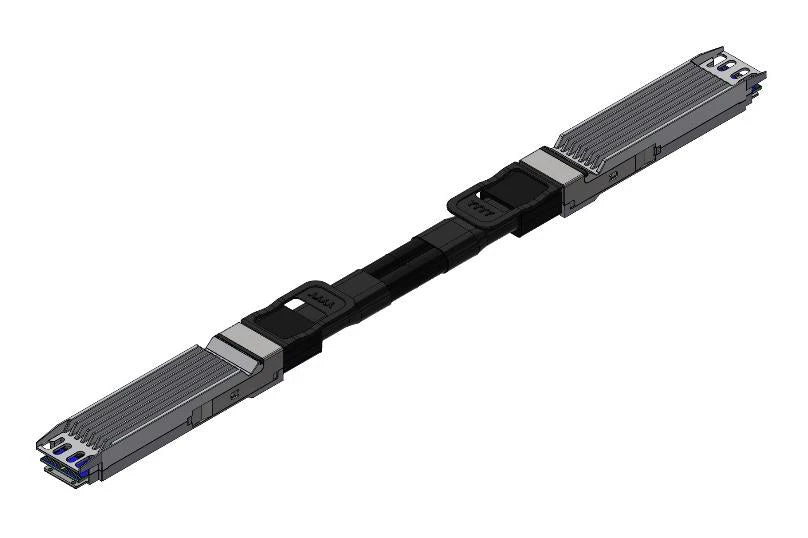

NVIDIA MCP4Y10-N01A | 2x400G OSFP InfiniBand NDR DAC Cable, 1.5m, Finned Top
SKU:MCP4Y10-N01A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This passive copper direct attach cable has an OSFP connector at each end and carries up to 800Gb/s (twin-port, 2x400Gb/s) of InfiniBand NDR traffic. It is built for short-reach links on NDR fabrics, such as switch-to-switch connections between Quantum-2 switches, and switch-to-server connections to hosts like DGX-H100 or ConnectX-7 adapters.
The cable is 1.5m long and uses finned-top OSFP connectors, which makes it distinct from the flat-top version of this cable, sold as a separate SKU. Being passive, it has no active electronics and needs no external power. NVIDIA's firmware documentation lists passive copper for NDR at lengths up to 3m, so the 1.5m length suits adjacent racks or short in-rack runs.
This cable is validated as a supported NDR cable in NVIDIA Quantum-2 and ConnectX-7 firmware documentation. It is also sold in other lengths, including 0.5m, 1m and 2m.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Twin-port 2x400Gb/s OSFP to OSFP passive DAC for InfiniBand NDR
- Passive copper design with no active electronics
- No external power required
- Validated as a supported NDR cable on NVIDIA Quantum-2 switches and ConnectX-7 adapters
- Finned-top OSFP connectors
- Suited to short-reach switch-to-switch and switch-to-server links
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: Passive copper direct attach cable (DAC)
- Data rate: up to 800Gb/s (2x400Gb/s)
- Protocol: InfiniBand NDR
- Connector: OSFP to OSFP, twin-port
- Connector style: Finned top (non-flat-top)
- Length: 1.5m
- NVIDIA OPN: 980-9IA0Q-00N01A
- Legacy OPN: MCP4Y10-N01A
- Maximum passive copper length for NDR: up to 3m
FAQs
Q: What is the difference between this cable and the flat-top version?
A: This SKU uses finned-top OSFP connectors. The flat-top version is a separate SKU, MCP4Y10-N01A-FLT, so choose the connector style that matches the ports on your switch or adapter.
Q: Does this cable need external power?
A: No. It is a passive copper cable with no active electronics, so it needs no external power.
Q: What equipment is this cable validated for?
A: It is listed as a supported NDR cable in NVIDIA Quantum-2 switch and ConnectX-7 adapter firmware documentation.
Q: What other lengths are available in this family?
A: The MCP4Y10-Nxxx family is also available in 0.5m, 1m and 2m lengths, plus flat-top versions.
