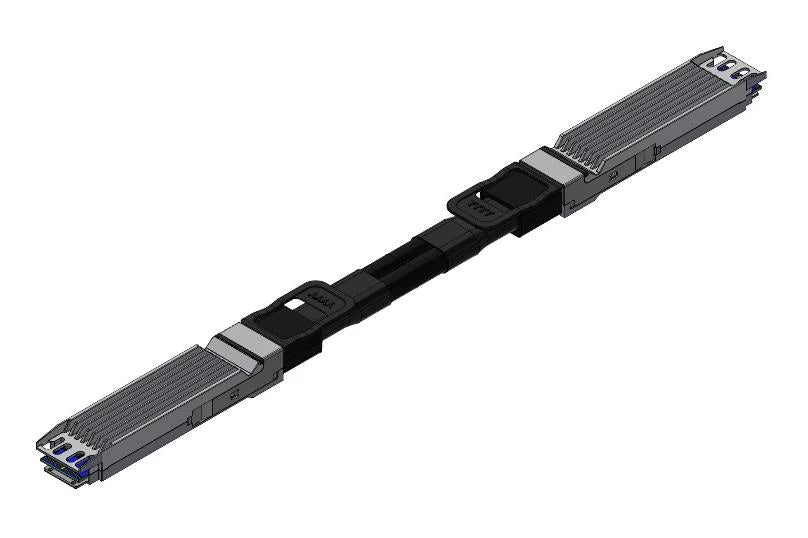

NVIDIA MCP4Y10-N00A | LinkX 800Gb/s OSFP Twin-Port DAC, IB NDR, 0.5m, Finned Top

SKU:MCP4Y10-N00A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA LinkX MCP4Y10-N00A is a passive twin-port OSFP to twin-port OSFP direct attach copper cable for InfiniBand NDR links. It carries 2x400Gb/s, 800Gb/s in total, and is built for short switch-to-switch runs between NVIDIA Quantum-2 InfiniBand or Spectrum-4 Ethernet switches, as well as links to DGX H100 systems.

This 0.5 m cable carries 8 channels of 100G-PAM4 over 30AWG, 2x8 pairs. It has finned-top connectors at both ends, which suits air-cooled switch ports. As a passive copper design it draws just 0.1 W maximum from a single 3.3 V supply and is Power Class 1. No licence or subscription is required. The firmware supports both InfiniBand and Ethernet and is enabled automatically based on the protocol of the attached switch.

The cable is compliant with OSFP MSA Rev 1.12, SFF-8665 and CMIS 5.0, and is hot pluggable. The jacket is LSZH and the PCB is lead-free and halogen-free. Flat-top variants are a separate part for liquid-cooled switches and DGX H100, so this finned-top-to-finned-top SKU is the one for switch-to-switch links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 2x400Gb/s data rate based on 8 channels of 100G-PAM4
- Low-cost, low-latency, near-zero-power high-speed link
- Firmware supports both InfiniBand and Ethernet, auto-enabled based on the attached switch protocol
- Cable length tuned to reduce internal signal noise and back reflections
- Thin 30AWG wire for easy bending at short lengths
- Hot pluggable with a single 3.3 V supply
- EEPROM provides product configuration to the host
- LSZH jacket with lead-free, halogen-free PCB

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: 2x400Gb/s (800Gb/s total)
- Modulation: 8 channels of 100G-PAM4
- Form factor: OSFP twin-port to OSFP twin-port (OSFP MSA based, SFF-8665 compliant)
- Protocol: InfiniBand NDR
- Media: Passive copper (DAC)
- Cable length: 0.5 m
- Length tolerance: +/-25 mm
- Wire gauge: 30AWG, 2x8 pairs
- Cable diameter: 7.2 +/-0.03 mm
- Minimum bend radius: 72 mm
- Connector top: Finned top at both ends
- Management interface: SFF-8636 compliant I2C, CMIS Rev 5.0 memory map
- Supply voltage: 3.135 V min, 3.3 V typ, 3.465 V max
- Power consumption: 0.1 W max
- Power class: Class 1
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Characteristic impedance: 90 / 100 / 110 ohm (min/typ/max)
- Propagation delay: 4.5 ns/m max
- Supported applications: InfiniBand NDR, 800GBASE-CR8, 400GBASE-CR4, 200GBASE-CR2, 100GBASE-CR1, 400GBASE-CR8, 200GBASE-CR4
- Jacket: LSZH, RoHS compliant, lead-free and halogen-free PCB
- Hot pluggable: Yes
- NVIDIA OPN: 980-9IA0K-00N00A

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and no licence or subscription is required.

Q: What power does it draw?
A: It is passive and draws 0.1 W maximum from a single 3.3 V supply provided by the host port. It is a Power Class 1 cable.

Q: Which switches and systems does it connect?
A: It fits OSFP twin-port ports on NVIDIA Quantum-2 InfiniBand switches, Spectrum-4 Ethernet switches and DGX H100 systems. It is compliant with OSFP MSA Rev 1.12, SFF-8665 and CMIS 5.0.

Q: Can it be used in liquid-cooled switches?
A: This SKU has finned-top connectors at both ends and is intended for air-cooled switch-to-switch links. Flat-top variants are the part for liquid-cooled switches and DGX H100.

Q: Does it work for Ethernet as well as InfiniBand?
A: Yes. The firmware supports both InfiniBand and Ethernet and is enabled automatically based on the protocol of the attached switch.
