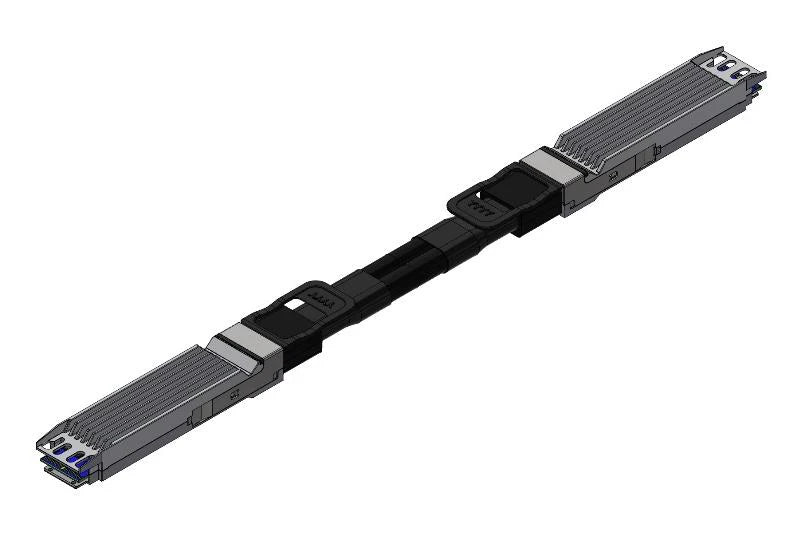

NVIDIA MCP4Y10-N002-FLT | LinkX 2x400G OSFP Passive DAC, IB NDR, 2m, Flat Top
SKU:MCP4Y10-N002-FLT
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NVIDIA LinkX MCP4Y10 passive direct attach copper cable links twin-port OSFP cages at up to 800Gb/s, carried as 2x400Gb/s. It is built for short-reach switch-to-switch links between Quantum-2 InfiniBand NDR or Spectrum-4 Ethernet switches, and for connections to NVIDIA DGX H100 systems or liquid-cooled switches in AI and HPC data centres.
This SKU is the 2m length with flat-top OSFP connector ends on both sides. It uses eight channels of 100G-PAM4 over 30AWG copper, with a passive design that draws 0.1W maximum from the host 3.3V supply. The cable is hot pluggable, has an LSZH jacket and a lead-free, halogen-free PCB, and is RoHS compliant. No licence is required.
The firmware supports both InfiniBand and Ethernet and is enabled automatically based on the protocol of the attached switch. The EEPROM reports its configuration to the host using a CMIS Rev 5.0 memory map. Flat-top ends are intended for the DGX H100 and liquid-cooled switch side, while air-cooled switch ports use the finned-top variant. Host devices must provide twin-port OSFP cages.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive design gives a low-cost, low-latency, near-zero-power high-speed link
- Firmware supports both InfiniBand and Ethernet, enabled automatically by the attached switch protocol
- EEPROM provides product configuration information to the host
- Each cable length is tuned to reduce internal signal noise and back reflections
- Thin 30AWG cable bends easily at 2m length
- Flat-top ends suit liquid-cooled switches and DGX H100 systems
- Hot pluggable with an LSZH jacket and RoHS compliance
- Production tested for an out-of-the-box installation experience
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- NVIDIA OPN: 980-9IA0J-00N002
- Legacy OPN: MCP4Y10-N002-FLT
- Data rate: 2x400Gb/s (up to 800Gb/s)
- Protocol: InfiniBand NDR, Ethernet auto-detected
- Modulation: 8 channels of 100G-PAM4
- Cable type: Passive copper
- Cable length: 2 m
- Wire gauge: 30AWG
- Connector: OSFP twin-port to OSFP twin-port, flat-top ends
- Form factor: OSFP MSA Rev. 1.12 and SFF-8665 compliant
- Management interface: SFF-8636 compliant I2C, CMIS Rev 5.0 memory map
- Supply voltage: 3.3V (3.135 to 3.465 V)
- Power consumption: 0.1 W max
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Storage temperature: -40 to 85 C
- Characteristic impedance: 100 ohm typical
- Propagation delay: 4.5 ns/m max
- Jacket: LSZH, lead-free and halogen-free PCB
- Hot pluggable, RoHS compliant
FAQs
Q: Does this cable need a licence or any configuration?
A: No licence is required. It is a passive cable, and its EEPROM provides configuration information to the host automatically.
Q: Does it work with both InfiniBand and Ethernet?
A: Yes. The firmware supports both InfiniBand and Ethernet and enables the correct one automatically based on the attached switch protocol.
Q: How much power does it draw?
A: It is passive and draws 0.1W maximum from the host 3.3V supply.
Q: What is the difference between flat-top and finned-top versions?
A: Flat-top ends are intended for the DGX H100 and liquid-cooled switch side. Finned-top ends are used for air-cooled InfiniBand and Ethernet switch ports. This SKU has flat-top ends on both sides.
Q: What ports does it connect to?
A: It connects twin-port OSFP cages, such as those on Quantum-2 InfiniBand and Spectrum-4 Ethernet switches and NVIDIA DGX H100 systems.
