NVIDIA

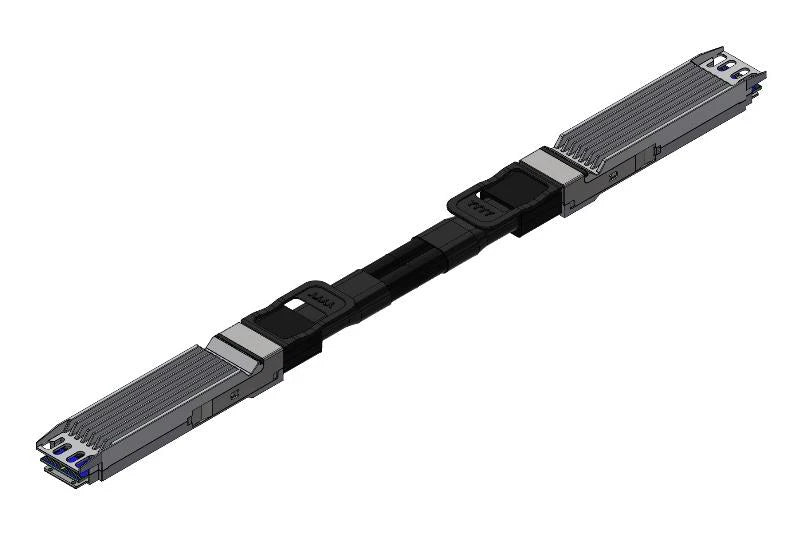

NVIDIA MCP4Y10-N002 | LinkX 800G Twin-Port OSFP DAC Cable, 2m, Passive

SKU:MCP4Y10-N002

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA LinkX MCP4Y10-N002 is a passive twin-port OSFP to twin-port OSFP direct attach copper cable, 2m in length. It is built for short-reach interconnects in AI and HPC InfiniBand NDR fabrics and 800G Ethernet data centre racks, covering switch-to-switch links and switch-to-DGX H100 connections.

The cable carries 2x400Gb/s (800Gb/s aggregate) over eight 100G PAM4 lanes, supporting InfiniBand NDR and 800GBASE-CR8 Ethernet. This SKU is the standard finned-top version, 2m long and fully passive, with a single 3.3 V supply and an operating case temperature of 0 to 70 C. The firmware supports both InfiniBand and Ethernet and enables the correct protocol automatically based on the attached switch.

It suits 2x400Gb/s Quantum-2 InfiniBand switches such as the QM9700 and QM9790, as well as Spectrum-4 Ethernet switches. It complies with the OSFP MSA and CMIS, and no licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Simple passive design gives a low-cost, low-latency link with near-zero power draw
- Firmware supports both InfiniBand and Ethernet and enables automatically per the attached switch
- Cable length is tuned to reduce internal signal noise and back reflections
- Hot pluggable with a single 3.3 V supply
- Thin-gauge wire for easier bending at short lengths
- Lead-free and halogen-free PCB
- Standard finned-top OSFP connector housing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: 2x400Gb/s (800Gb/s aggregate)
- Protocol: InfiniBand NDR, 800GBASE-CR8 Ethernet
- Modulation and lanes: 8 channels of 100G PAM4
- Connector: twin-port OSFP to twin-port OSFP, finned top
- Cable type: passive copper
- Cable length: 2 m
- Wire gauge: 30AWG
- Supply voltage: single 3.3 V
- Absolute maximum voltage: -0.3 to 3.6 V
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Hot pluggable: Yes
- PCB: lead free and halogen free
- Media type (CMIS memory map): 03h Passive Copper
- Standards: OSFP MSA, CMIS
- NVIDIA OPN: 980-9IA0I-00N002

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and needs no licence or subscription.

Q: Does it need external power?
A: No. It is passive with near-zero power consumption, running from a single 3.3 V supply provided by the host port.

Q: Which switches and systems does it connect?
A: It links 2x400Gb/s Quantum-2 InfiniBand switches (such as the QM9700 and QM9790) and Spectrum-4 Ethernet switches, and also connects switches to DGX H100 systems. It complies with the OSFP MSA and CMIS.

Q: Does it work for both InfiniBand and Ethernet?
A: Yes. The firmware supports InfiniBand NDR and 800GBASE-CR8 Ethernet and enables the correct protocol automatically based on the attached switch.

Q: How does this differ from the flat-top version?
A: This SKU is the standard finned-top 2m cable. The flat-top variant, MCP4Y10-N002-FLT, is a separate SKU intended for liquid-cooled switches and DGX H100.
