NVIDIA

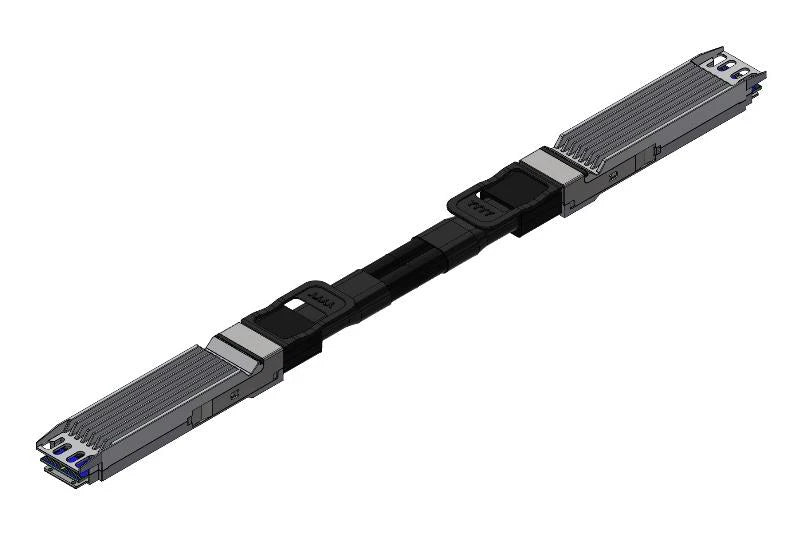

NVIDIA MCP4Y10-N001-FTF | LinkX 800G OSFP Twin-Port DAC, 1m, Flat-to-Finned Top

SKU:MCP4Y10-N001-FTF

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The LinkX MCP4Y10 is a passive copper direct attach cable with twin-port 2x400Gb/s OSFP connectors at each end, delivering up to 800Gb/s. This 1m flat-to-finned top (FTF) variant suits short-reach links between Quantum-2 InfiniBand NDR switches, Spectrum-4 Ethernet switches and DGX H100 systems within a rack or between adjacent racks.

Each port carries eight high-speed copper pairs at up to 100Gb/s per lane, built from 30 AWG cable with a 7.2 mm diameter and a 72 mm bend radius. The cable is passive with no optics or active electronics, so it draws power only through the host port. Cable length is tuned to reduce internal signal noise and back reflections, and firmware supports both InfiniBand and Ethernet, enabled automatically to match the attached switch.

The flat-top OSFP connector on one end suits air-cooled finned-top ports, while the other end has a finned top. Confirm the port types (flat or finned) at each end of the link before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Octal Small Form-factor Pluggable (OSFP) with eight high-speed copper pairs at up to 100Gb/s each
- Firmware supports both InfiniBand and Ethernet, enabled automatically to match the attached switch
- Cable length tuned to reduce internal signal noise and back reflections
- Power-efficient connectivity for higher port bandwidth and density
- Flat-top to finned-top design links different switch and DGX H100 port configurations
- Thin 30 AWG gauge for a tighter bend radius

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: 2x400Gb/s (up to 800Gb/s total)
- Form factor: Twin-port OSFP to twin-port OSFP
- Electrical lanes: 8 high-speed copper pairs per port, up to 100Gb/s each
- Cable type: Passive copper (DAC)
- Cable gauge: 30 AWG, 2x8 pairs
- Cable length: 1m (3.3 ft)
- Cable diameter: 7.2 mm
- Bend radius: 72 mm
- Protocol support: InfiniBand NDR and Ethernet
- Connector ends: Flat-top to finned-top
- Colour: Gray

FAQs

Q: Does this cable need a separate power supply?
A: No. It is a passive copper cable with no active electronics and draws power only through the host port.

Q: Which switches and systems does it connect?
A: It is intended for twin-port Quantum-2 InfiniBand NDR switches such as the QM9700 and QM9790, Spectrum-4 Ethernet switches, and switch-to-DGX H100 connections.

Q: What does flat-to-finned top mean?
A: One end has a flat-top OSFP connector for air-cooled finned-top ports, and the other end has a finned top. Confirm the port type at each end of the link before ordering.

Q: Does it support both InfiniBand and Ethernet?
A: Yes. The firmware supports both protocols and enables the correct one automatically based on the attached switch.

Q: What is the maximum reach?
A: This variant is 1m long, suited to links within a rack or between adjacent racks.
